True Professional – Next Generation Cinema Doorway Dolly
Built in Production Quality, Industry Proven Design & Engineering
Accessible To Professionals Everywhere!
The strongest Quad Super Bazooka Doorway heavy duty Dolly from Proaim is for professionals to create smooth dynamic shots. It’s the next generation doorway dolly based on the industry proven design and engineering. The Quad Dolly offers you new possibilities concerning mobility and versatility for on stage and most production situations.
The Dolly is constructed from Highest Grade Materials for Ultimate Strength and will Deliver Years of Reliable Support. It offers two-way steering which allows for full range of movement and Telescopic Bazooka for myriad creative imaging possibilities. It also features pneumatic wheels, non-slip wooden platform, two removable side boards, switchable comfortable operator seat and push/pull steering bars. The pneumatic wheels swap quickly for track and ground mode. The rear axle telescopes outward for a wider stance and stability. Payload capacity is over 500kg/1100lb. On this dolly; add crane, bazooka, tripod, slider, or whatever you can think of! Load it with gear to get to the location with ease!
"WHAT YOU SEE IS WHAT YOU GET"
Video is for demonstration only
Actual Product may vary due to Product Improvements
Attention to Convenience

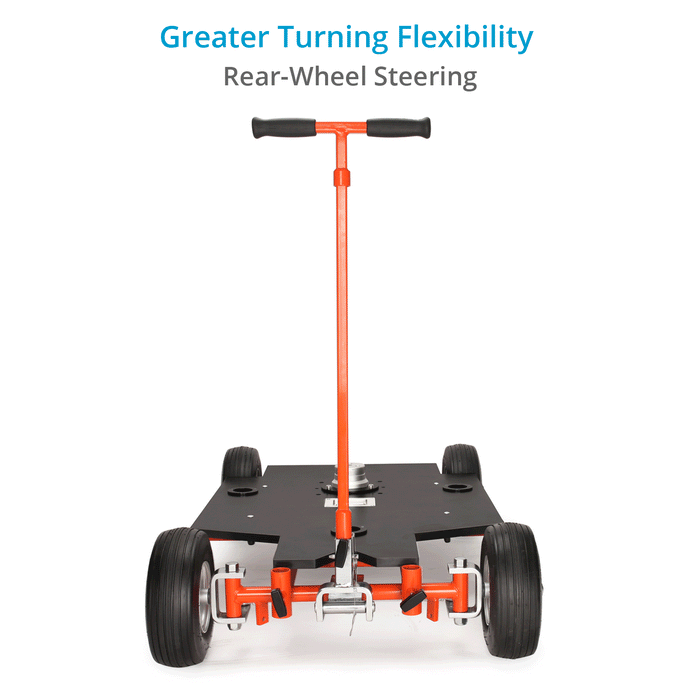

The Pnuematic wheels run in any direction smoothly; straight, left or right providing different shooting angles.

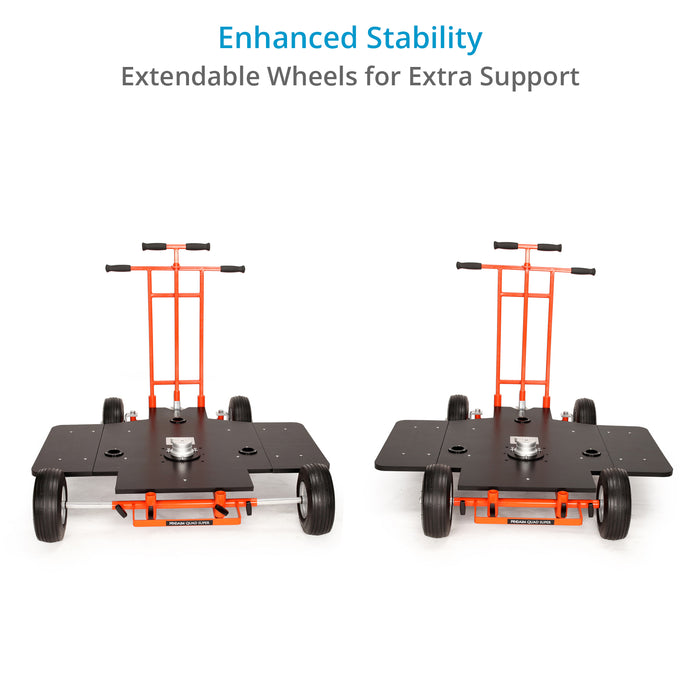

Quick change Pneumatic wheels ride smoothly on many types of surfaces. The rear axle telescopes outward for a wider stance and stability.
Comfortable Operator Seat
Proaim Quad Super Doorway Dolly (P-QUAD-S)
- Load Capacity: 500kg/1100lb
. Chassis: Solid Metal
. Platform: Wooden
BAZOOKA (Revised on 04-Oct-2018)
- Construction: High-Grade CNC Aluminum
- Max Height: 46”/117cm
- Min Height: 32”/81cm
- Weighing Capacity: 200kg/441lb
- Bowl: 100mm
TRACK (TRK-16-25) (Optional)
- Construction: High Grade Aluminum
- Total length: 16ft
- Each Section: 4ft
- Load Capacity: 800kg/ 1763lb
- Central distance: 25"
- Track Rail Diameter: 32mm – 45mm
- Proaim Quad Super Bazooka Doorway Dolly
- Steering Push/Pull Bar
- Telescopic Bazooka (BZ-286-00)
- Euro Plate (EM-259-00)
- 100mm Height Riser (BA-267-00)
- 4 x Track Wheels (P-TWS-QS)
Q: How much camera weight will the bazooka hold?
Ans: The bazooka can take upto 20kg camera weight.
Q: What weight will the platform seat hold?
Ans: The platform seat can easily hold upto 450lbs.
Q: Is the dolly firm and steady when negotiating complex moves?
Ans: Yes, it’s absolutely stable in any kind of moves.
Q: What materials are used in its construction?
Ans: The dolly and seat are made up of mild steel. The bazooka is made up of Aluminum, Floor wheels are air filled pneumatic wheels and all fasteners are of stainless steel (SS) for more durability.
Q: What is the maximum height of bazooka?
Ans: The bazooka can be extended upto 57”.
Q: Can you sell a track with this dolly?
Ans: Yes, we sell a track fo this dolly. You can check it at the following link :
Proaim 16ft Heavy Duty Camera Dolly Track
Q: Will there be any alignment problem in using more than one track?
Ans: No, there will be no problem while using more than one track. We provide the supports that help to keep the track in a stable position.
Q: Can I use tripod with this dolly?
Ans: Yes, you can use a tripod with this dolly. You just need to detach the bazooka from the dolly in order to attach the tripod stand onto the dolly.
Q: What will be the center distance for using this dolly?
Ans: The central distance of this dolly is 25”.
Q: Will 75mm Fluid head fit on the bowl?
Ans: The bowl accepts 100mm fluid head only.
Q: Is the seat fixed or rotating?
Ans: Yes, the seat is 360” rotatable.
Q: Will this dolly work on flexi or curved track?
Ans: Yes, the dolly will work on flexi track but it will not work with curved track.
Q: What is the diameter of track?
Ans: The dia of track is 1.77”.
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.
Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
