Proaim Quad-4 Pro Camera Platform Doorway Dolly for Videomakers & Filmmakers

Payload: 500 kg/1100

Save 19% Save 19%
Original price CAD 2,318.00
Original price CAD 2,318.00 - Original price CAD 2,318.00
Original price CAD 2,318.00
Current price CAD 1,882.00
CAD 1,882.00 - CAD 1,882.00
Current price CAD 1,882.00
SKU : DL-QDFW-00

A Smart Way to Move the Camera

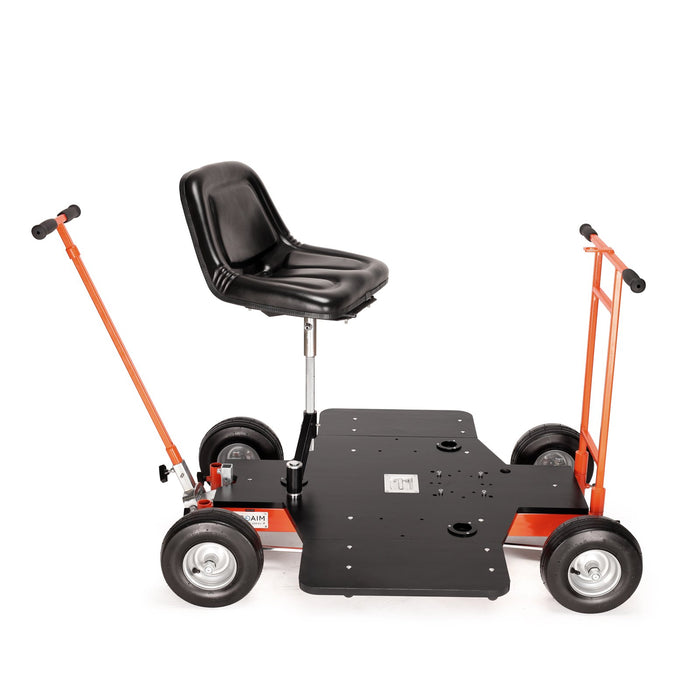

Proaim Quad-4 Pro Cinema Doorway Dolly

Strongest Platform Dolly

The Quad Dolly has an extremely solid Chassis Design, and the upper base is made of Solid Wood with high-quality finish. This makes it extremely robust and can easily handle payloads of up to 500 kg/1100 lb.

Proaim Quad-4 Pro Cinema Doorway Dolly

Low for the Best Perspective

The platform height of the Dolly is merely 21cm/8" from the ground. We wanted to make it as low as possible to help you capture those low shots very easily.

Proaim Quad-4 Pro Cinema Doorway Dolly

Personalize It

Quad Dolly can be equipped with Skateboard Wheels or Standard Track Wheels for use on tracks or Pneumatic Wheels for standard floor use. You can use a tripod, a bazooka, a slider, or any other standard Euro Mount Accessory and configure it your needs.

What Makes Quad-4 Pro the Best Choice?

Dolly Specifications

Construction

  Chassis: Solid Metal
  Platform: Wooden

Load Capacity

  500kg/1100lb

Wheel Size

  Diameter-11”, Thickness -4”, Silver Steel Rim-5”

Height from Ground

  21cm

Steering Bar can Tilt Down

  270°

Compatible Track

  Proaim Stream Track (TK-STRS-00), (TRK-16-25)

Compatible Track Distance

  24.5 -25’’

Compatible Track Rail Diameter

  25-38mm

Product Dimensions

Proaim Quad-4 Pro Cinema Doorway Dolly

  Packing Specifications

Product Weight (with packing)

  Box 1: 55.16kg / 121.6lb
  Box 2: 22.8kg / 50.26lb
  Box 3: 12.9kg / 28.44lb

Packing Dimensions

  Box 1: 133 x 84 x 27 cm
  Box 2: 100 x 75 x 22 cm
  Box 3: 69 x 62 x 28 cm

In the Box

Proaim Quad-4 Doorway Dolly
Chair
Steering Push/Pull Bar

User Manual

01.

Manoeuvres On Small Sets Like No Other Platform Dolly

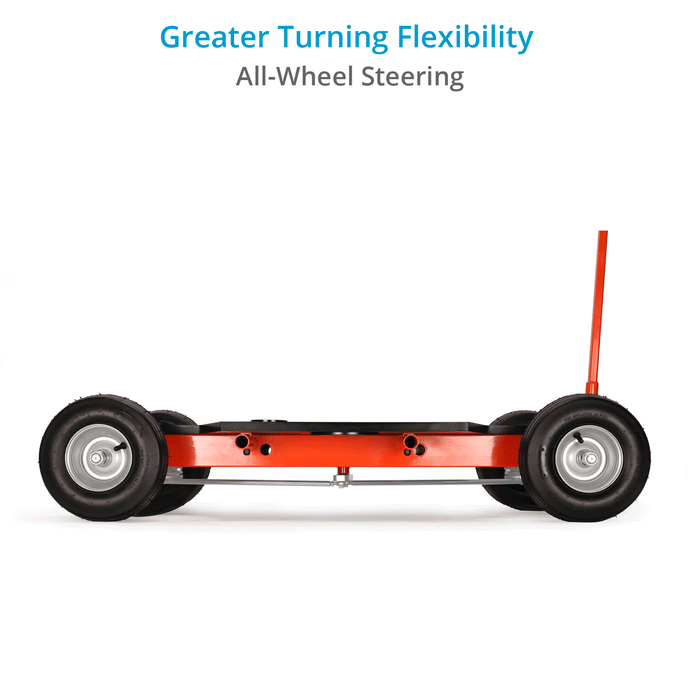

We designed the Quad Doorway Dolly while keeping mobility and easy operation in mind. With an All-wheel steering system, the Proaim Quad Dolly manoeuvres on small sets like no other platform dolly. It's capable of negotiating an extremely tight circle of 2 m (6 ft).

Steering Push bar allows pushing/pulling the Dolly on the ground with standard or on the track extremely smooth and easy.

Proaim Quad-4 Pro Cinema Doorway Dolly
Proaim Quad-4 Pro Cinema Doorway Dolly

02.

Create the Shot you Envision

The Quad Dolly can be configured for use with multiple setups such as slider, jibs, tripods, and geared heads which enables you to bring the director's vision to reality.

We offer multiple accessories at highly affordable prices so that you can calibrate the Dolly exactly to your needs.

03.

Let Small Become Big, Double the Size

The Quad Dolly comes with removable sideboards that add an extra 10" per side for increased platform width to enable the Cameraman and the assistant to stand, sit or even kneel on the Solid Platform.

Proaim Quad-4 Pro Cinema Doorway Dolly
Proaim Quad-4 Pro Cinema Doorway Dolly

04.

The Most Comfortable Dolly Seat

We understand how tiring a whole day shooting can be. The Quad Dolly comes with a thickly padded cushioned seat which provides exceptionally comfortable seating to the camera operator.

The seat mounts in 4 different positions allowing you to achieve a variety of camera angles. The seat is also height-adjustable for an optimal seating position according to the operator.

Available in Different Models

Available in Different Configurations


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • Is the center column of the Comet Crane compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly?

    Unfortunately, the center column of the Comet Crane is not compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly.
