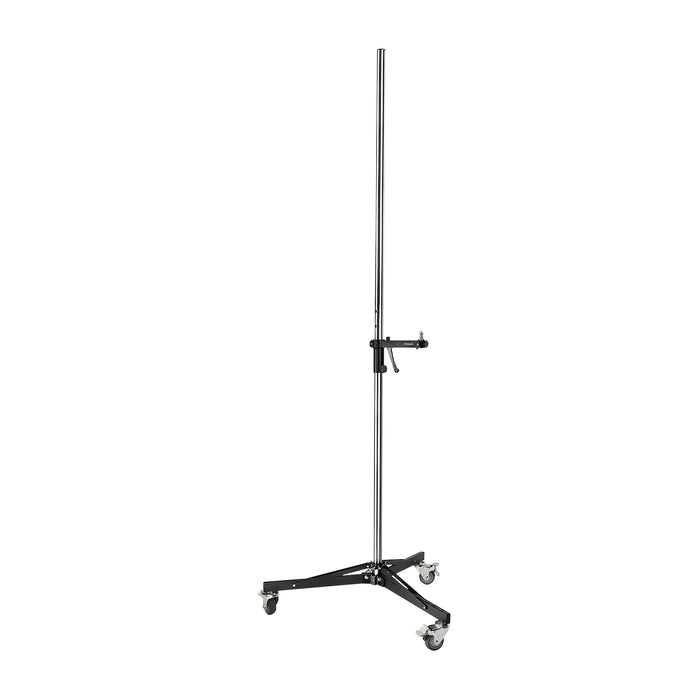

Proaim SS90 Studio Camera Stand 4ft / 8ft with Side Spigot Arm

Payload: 20kg / 44lb | For Photographers & Videographers

Sold out
Original price CAD 254.00 - Original price CAD 254.00
Original price
CAD 254.00
CAD 254.00 - CAD 254.00
Current price CAD 254.00
SKU : TP-SS90-01

IDEAL GEAR FOR STABLE, ELEVATED & WHEELED OPERATIONS!

01.

PRODUCT OVERVIEW

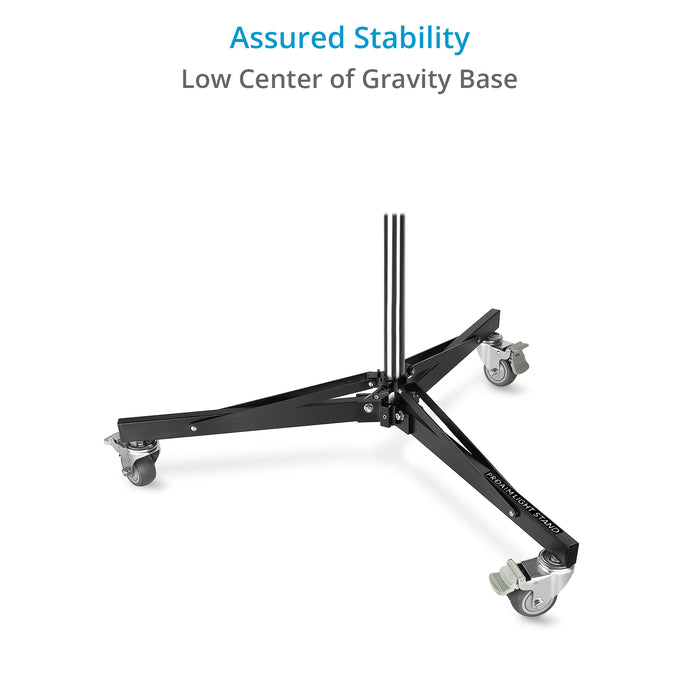

Solid & Stable Foundation
An ideal low-center-of-gravity base for your photography/camera setups, giving you some much-needed respite from tiring hand-held operations.
Durable Side Arm
The Side Arm offers multiple setup configurations via the adapter spigot and 5/8” Baby Pin receiver.
Smooth Mobility
The Castor Wheels provide easy & smooth movements across sets and lock via the footbrake that each one of them is equipped with.
Collapsible Design
The legs of the stand fold up into a compact size which is perfect for storage & transit.

Proaim SS90 Studio Camera Stand 4ft / 8ft with Side Spigot Arm
Proaim SS90 Studio Camera Stand 4ft / 8ft with Side Spigot Arm

02.

SOLID FOUNDATION

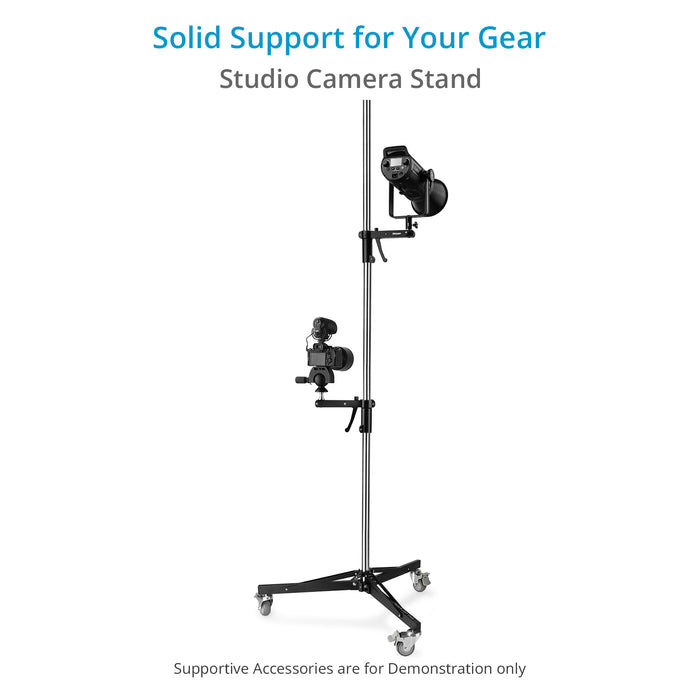

Get unwavering strength and elevation for your gear with Proaim’s all-new Commercial Studio Stand, paired with a Side Spigot Arm for photography gear/accessory mounting.
This roller stand has ample mobility while rendering perfect stability, owing to its low center of gravity base.
It supports photography essentials like lights, reflectors, softboxes, and even cameras.
Constructed with mild steel, the stand easily houses weights up to 20kg / 44lb.

03.

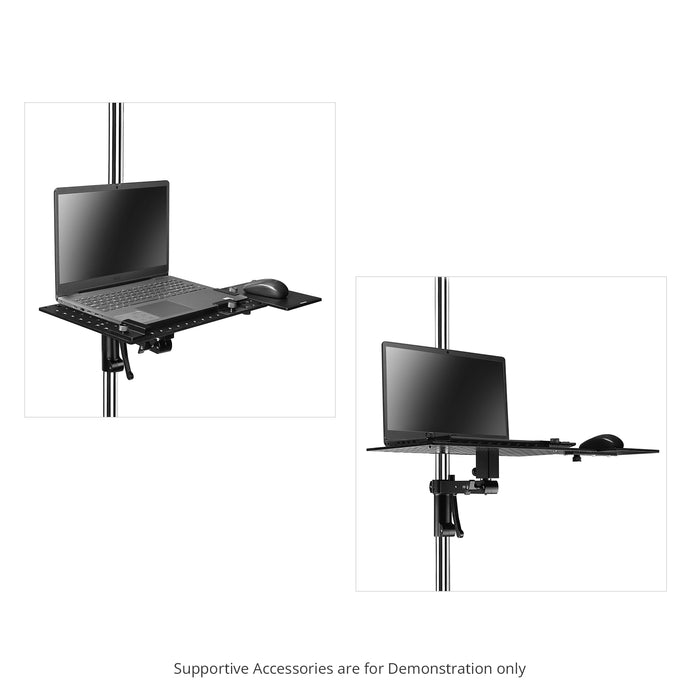

EASY & VERSATILE MOUNTING
The Side Spigot Arm comes equipped with an adapter spigot which has a 1/4”-20 screw on one side and a 3/8”-16 screw on the other side for facilitating multiple setup configurations.

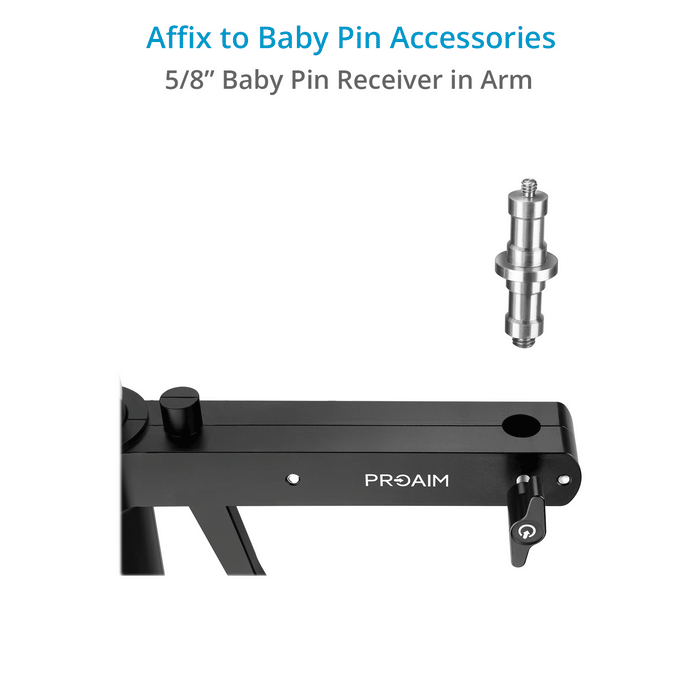

There is also a 5/8” Baby Pin receiver in the arm, which provides a myriad of additional setup options.

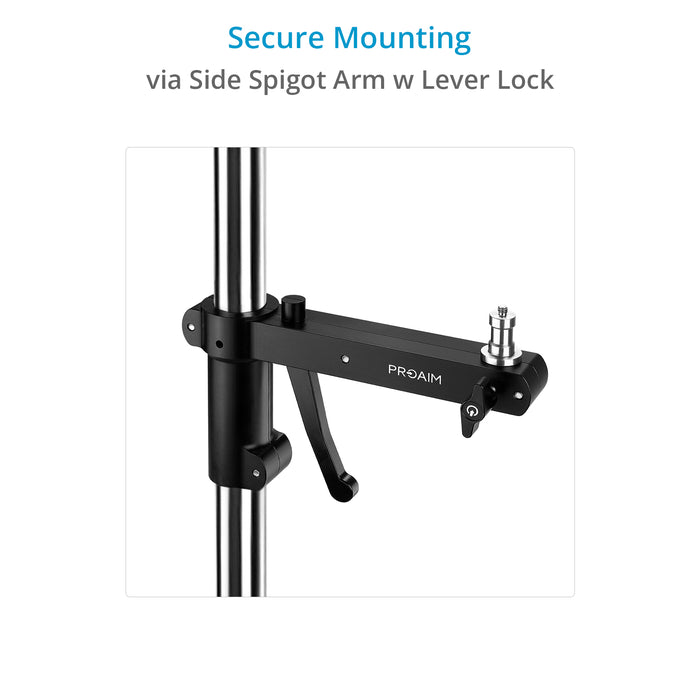

To ensure safe rigging, the side arm has a clip/lever lock that can be fastened & secured.

Proaim SS90 Studio Camera Stand 4ft / 8ft with Side Spigot Arm
Proaim SS90 Studio Camera Stand 4ft / 8ft with Side Spigot Arm

04.

DURABLE DESIGN
The height of the stand can be adjusted to fit your requirements.

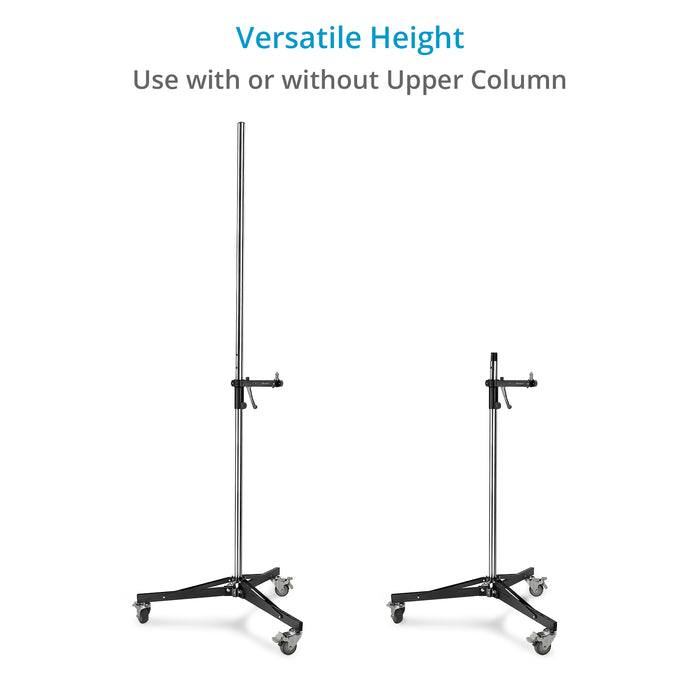

Adding up to a total of 8ft / 96”, the stand has two columns; the 4ft upper column is detachable for when you need a lesser elevated platform.

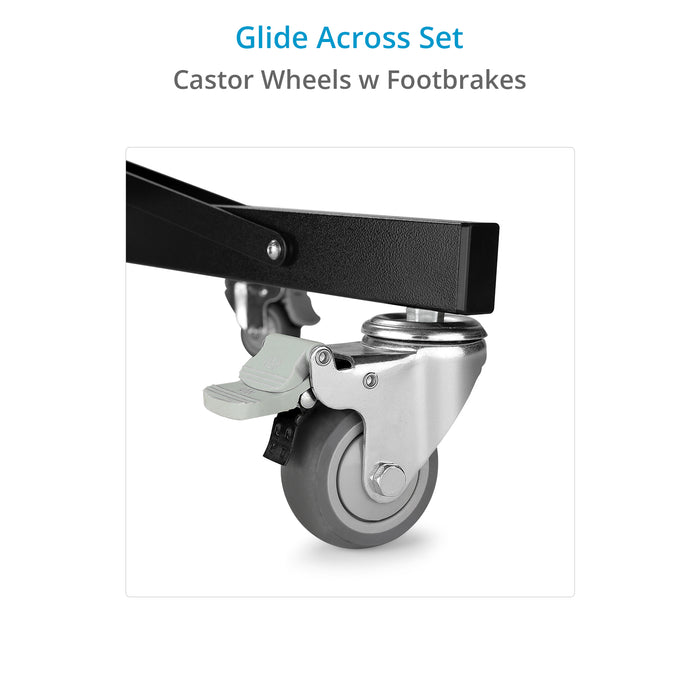

Equipped with locking castor wheels, the stand facilitates smooth, fluid movements across the set.
The footbrake stops both the wheel from rotating and the caster housing from swiveling, preventing unwanted movement.

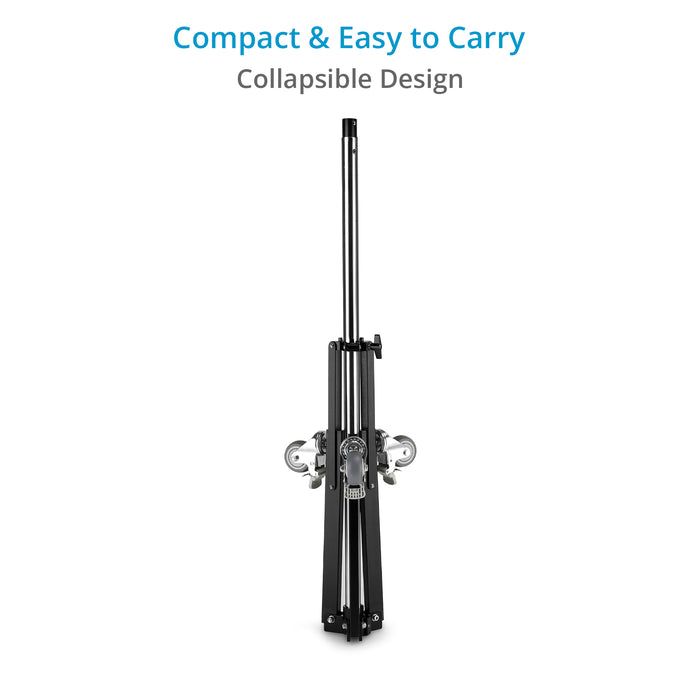

The collapsible design of the legs allows the stand to fold up into a compact size, ensuring quick setup, easy storage & travel.

SPECIFICATIONS

Construction

  Studio Stand: High-Grade Mild-Steel
  Side Spigot Arm: High-Grade CNC Aluminum

Load Capacity

  20kg / 44lb

Mounting

  Spigot Adapter with 1/4”‐20 & 3/8”‐16 thread & Baby Pin

Pole Height

  Maximum: 7.6ft / 92”
  Minimum: 4ft/ 49”

Pole Diameter

  35mm

Pole To Pin Distance

  18.5cm CD

Wheel Type

  Castor Wheels

Brakes

  Yes

Dimensions

Proaim SS90 Studio Camera Stand 4ft / 8ft with Side Spigot Arm

Product Weight (Without Packing)

  8.25kg / 18.18lb

Product Gross Weight (With Packing)

  10kg / 22lb

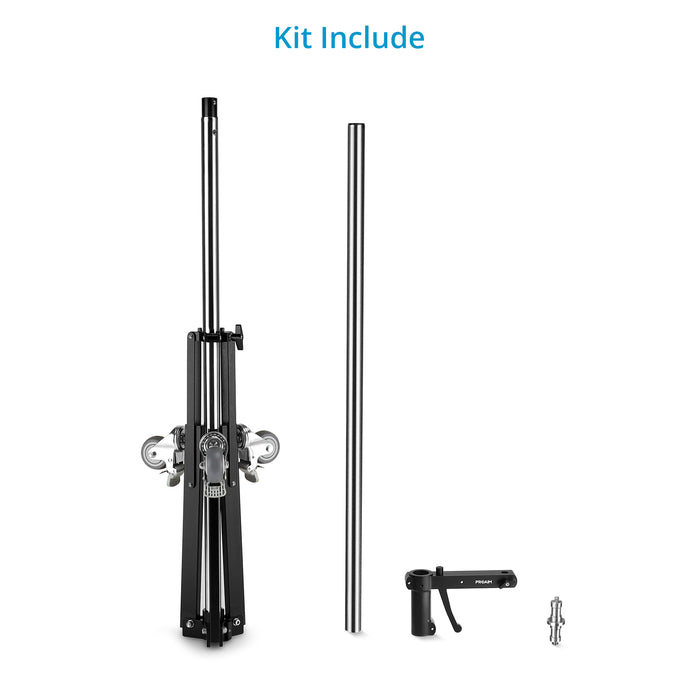

IN THE BOX

Proaim Studio Stand With Wheels
Side Spigot Arm
Upper Column
