Universal Cage Rig for Easy Handling of Your Monitors!
Secure & Comfortable. Height adjustable design adapts different monitors.
A Perfect Wireless Monitoring Solution for Directors & Video Assistants.
"WHAT YOU SEE IS WHAT YOU GET"

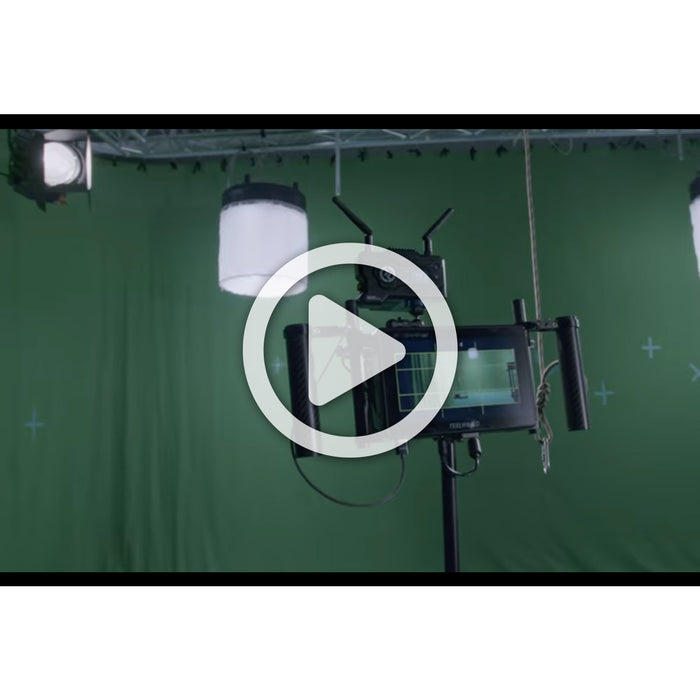

Video is for demonstration only
Actual Product may vary due to Product Improvements

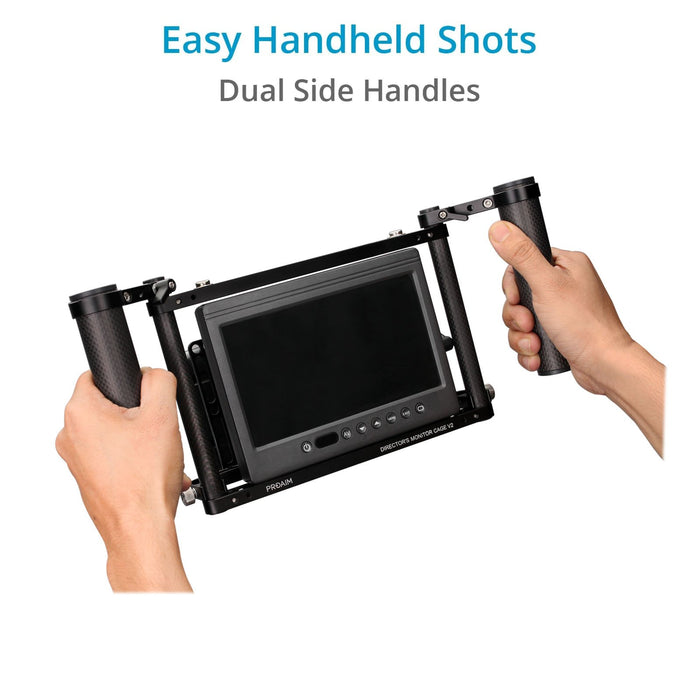

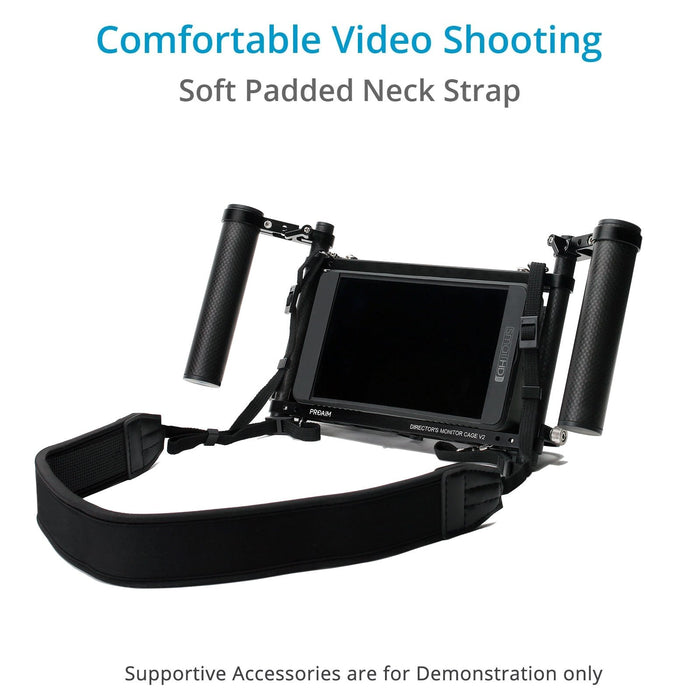

The Proaim Monitor Cage is meticulously designed to help directors and videomakers stay mobile when managing their production work. It is universally compatible with any monitor up to 9 inches (measured diagonally) and attaches via top, bottom, or rear 1/4-20 mounting locations. Constructed with durable, lightweight aluminum, the cage is modular and adjustable to support a monitor, battery mounts, and even a wireless transmission system. The robust design holds unique new features like dual direction swing away bracket, sun shade, quick release neck strap, dual Teradek mounting areas, handles and a cable tie for cable management.
The Robust yet lightweight Aluminum & Carbon Fiber construction keeps your monitor protected. The Proaim Monitor Cage arrives mostly pre-assembled, with simple, rod-based height adjustment. By loosening the screws on the ends of the cross cheese bar, you could adjust and self-define the available height of the cage rig to fit in your monitor. It also features offset brackets which are great for attaching your LCD in two different places.

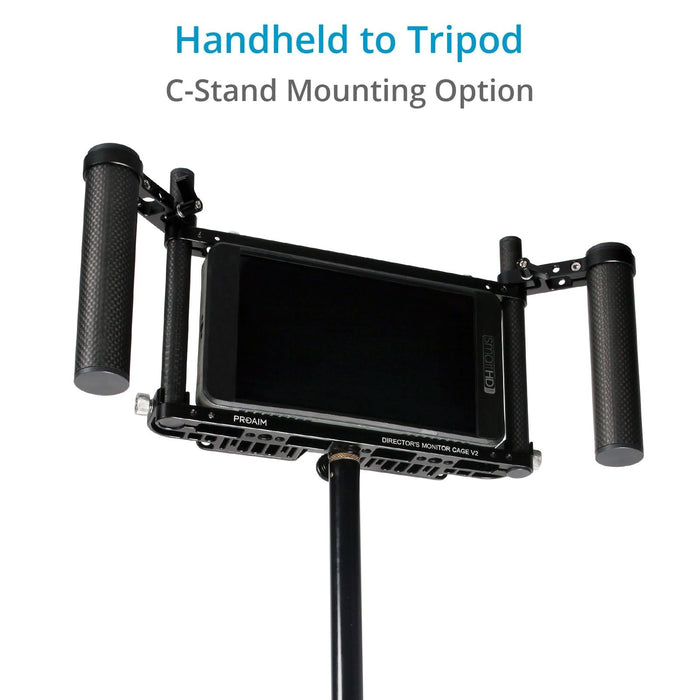

C- Stand Compatibility
- Cage: High-grade Aluminum
- Handles, Rods: High-grade Carbon Fiber

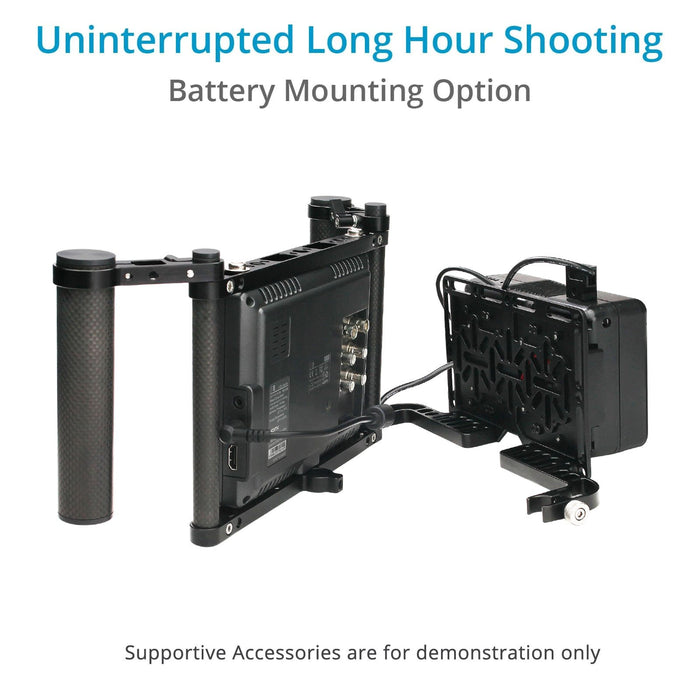

- Battery Plate: High-grade Plastic

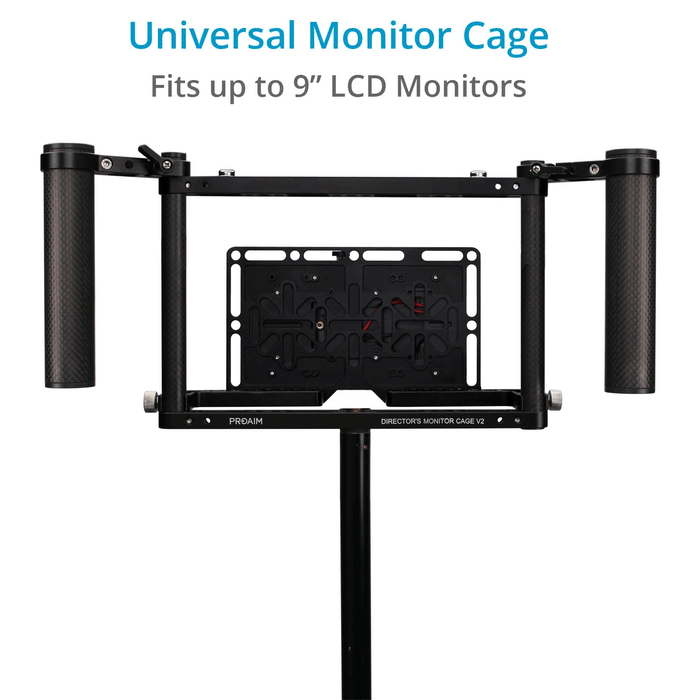

- LCD Monitor mounting: up to 9inches (measured diagonally)
- SmallHD DP4, DP6, AC7, DP7, 500 Series, 700 Series, Cine 7, 702 Touch, FOCUS 5/7, and UltraBright
- TVLogic VFM-056W/WP, VFM-058W, VFM-055A, F-7H, F-5A
- Ikan D5, VK7i, VH8, VL5, VX9e, DH5e, DH7, D7C, S7H, S7C, S7P
- Odyssey 7, 7Q, 7Q+
- Blackmagic Video Assist
- Atomos Samurai, Ninja, Shogun, Shinobi and many more
Accessory mounting: 1/4"-20 & 3/8"-16

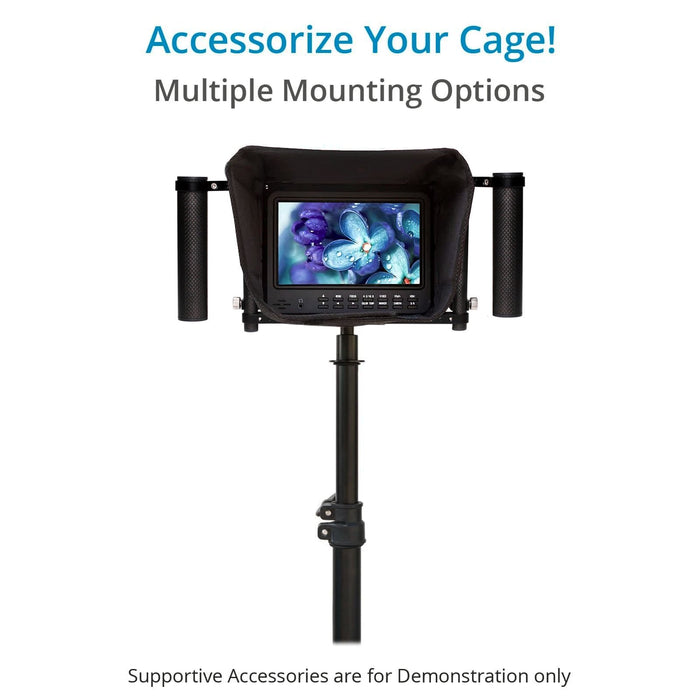

Stand Mounting: C-Stand
Carbon Fiber Rods - Length: 150mm Diameter: 15mm

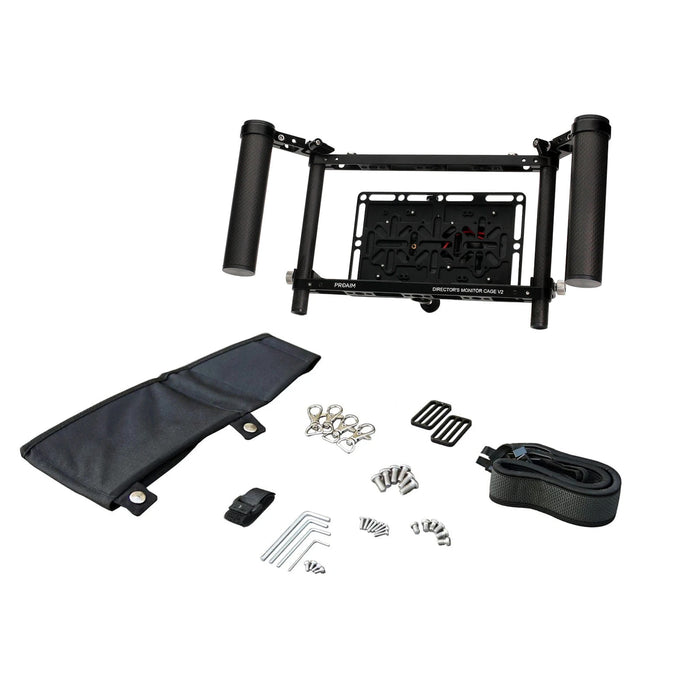

- Monitor Cage
- (6) ¼”-20 x 1/2" button head screws
- (6) ¼”-20 x 3/8" button head screws
- (2) Offset adapters
- (4) M3 x 12mm phillips screws (for optional Gold Mount plate)
- (4) M3 x 12mm pan head phillips screws (for Teradek XT/LT)
- (4) M3 x 6mm socket cap screws (for Odyssey 7Q)
- (1) Sun Shade
- (1) Neck Strap
- (1) Velcro Strap
- (4) Allen Keys
