A Remote Head Giving You the Freedom to Be More Creative!

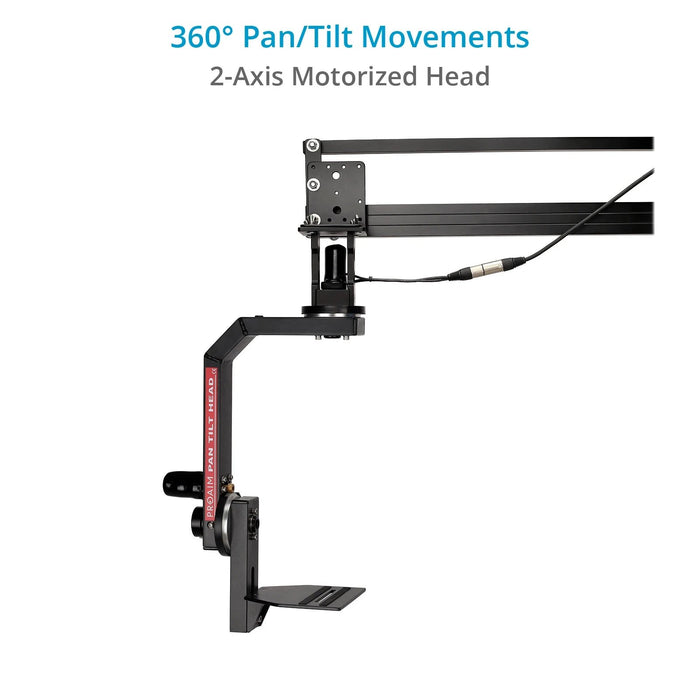

The camera movement help setting the tone for the scene, build dramatic effects and simply add beauty to your shots. The combination of remote head and crane is highly helpful in achieving this goal. But if you directly mount the camera on the crane, it will restrict the movement of the camera and narrow the creative possibilities. The specially designed 2-Axis Senior Pan Tilt Head allows unrestricted 360° Pan & Tilt Movements, giving you the freedom to take a wide variety of shots.
"WHAT YOU SEE IS WHAT YOU GET"
Technology That Lasts!

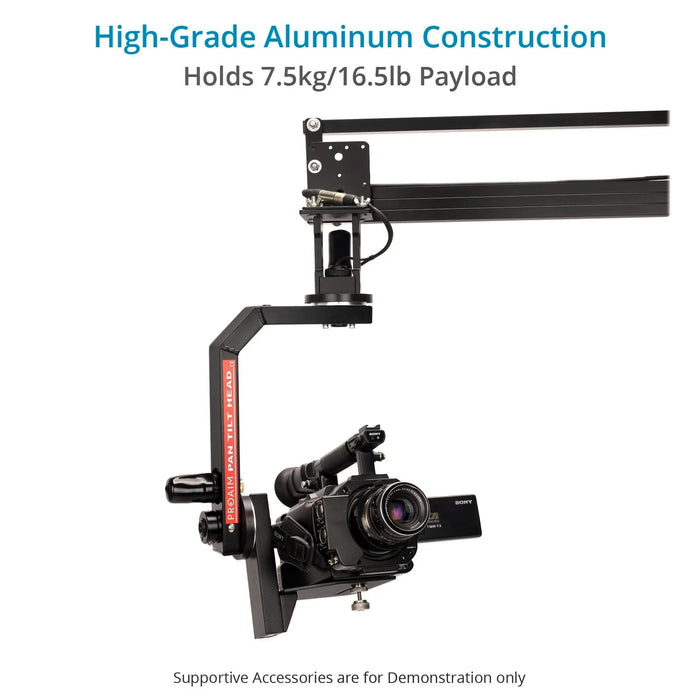

The technologically advanced 2-Axis pan-tilt head is constructed from high-grade aluminum that lets you use it successfully for years to come. The pan & tilt movements are controlled by 12V joystick controller.

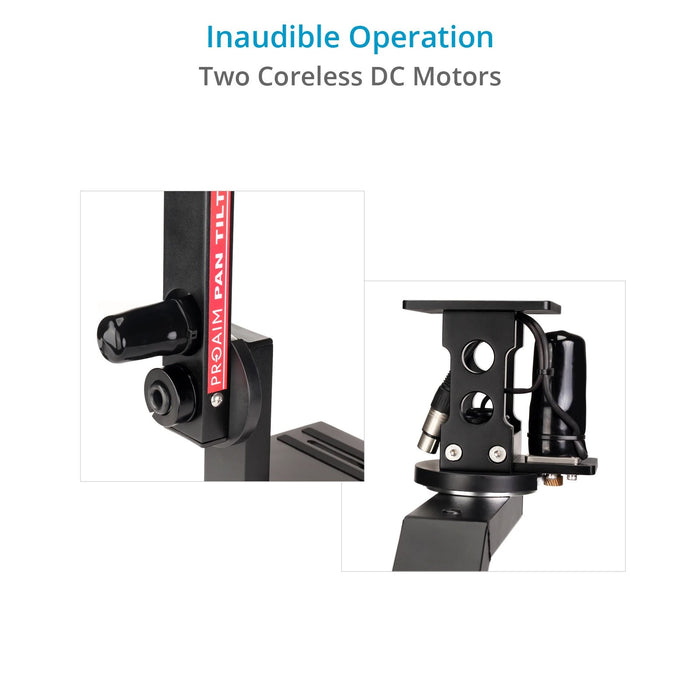

Two Coreless Motors
The pan-tilt head has two coreless high torque motors provide the payload capacity of 7.5kg (16.5lb) which is substantially higher than its counterparts. The high-quality coreless motors also provide the inaudible movements.

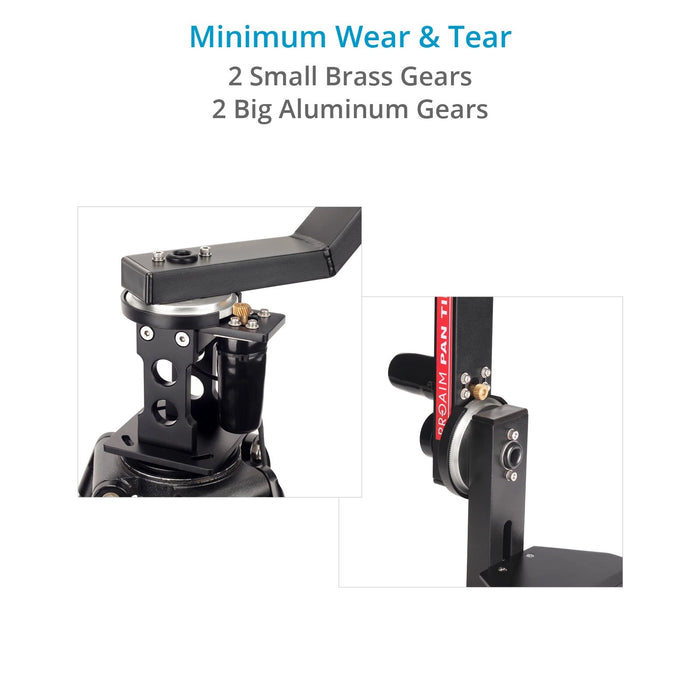

The high strength brass gears are engineered to withstand long hours of functions and have minimum wear and tear.

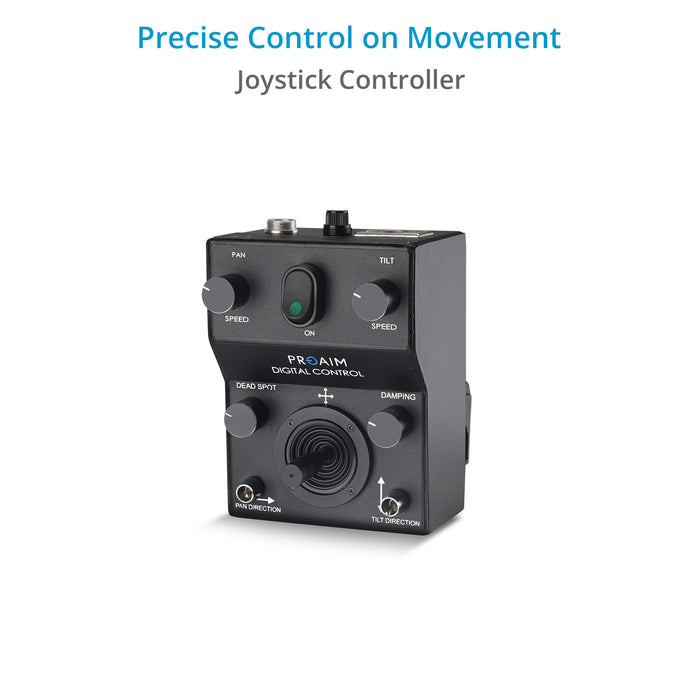

Functions of Joystick Controller
Adjusts the speed of pan & tilt based on the requirement of the shot.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Pan Tilt Direction
You can reverse the panning & tilting direction as & when required.
The Supporting accessories are for demonstration purpose only.
|SPECIFICATIONS OF SENIOR PAN-TILT|
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
2 Small Brass Gears (Dia- 13.5mm)

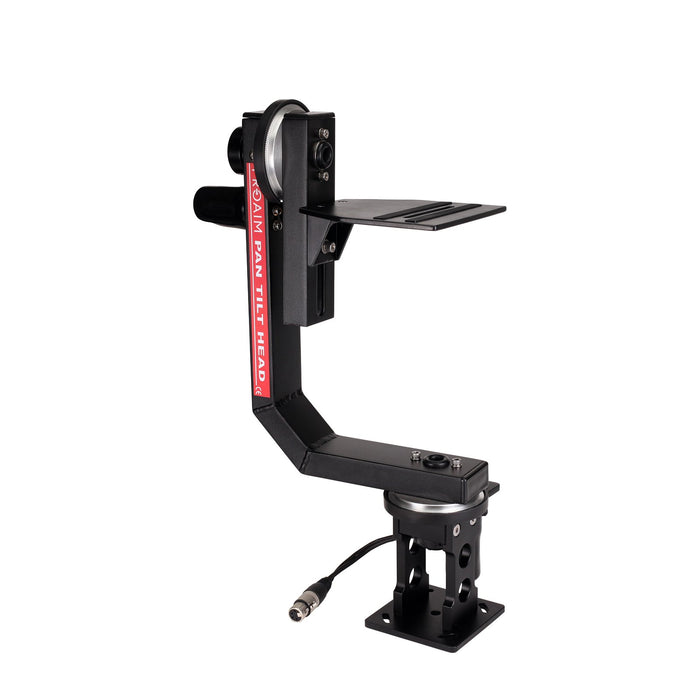

- Proaim Sr. Pan & Tilt Camera Motorized Head
- Joystick Control
- 15 meter/49foot long Control Cable (Revised on 16-Mar-2018)
- 3 meter long 4pin XLR cable (for using 12VDC Battery Packs)
- 1/4"-Camera Mounting Screw
- Worldwide Universal Adapter
- 12V AC Adapter

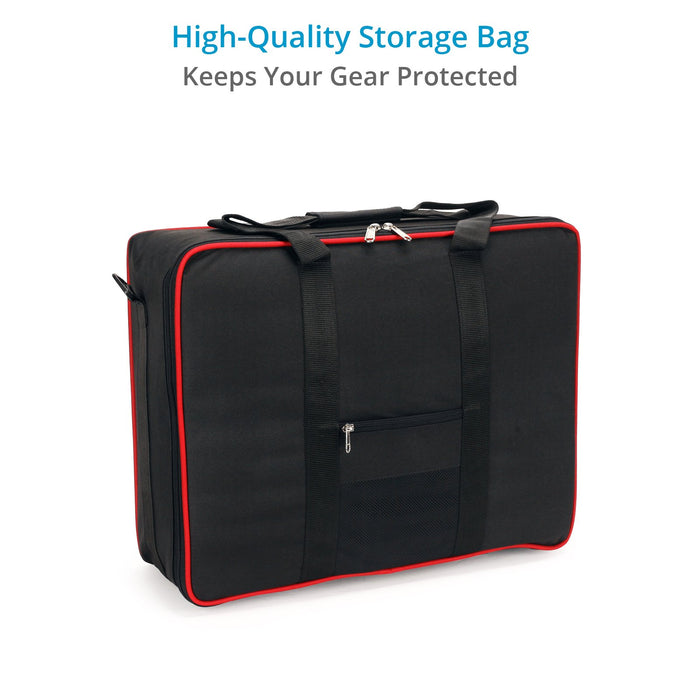

- Storage Case with Custom Fit Packing
Q: Will it work with canon 550d camera?
Ans: Yes, it will work with canon 550d camera.
Q: How the head can be mounted?
Ans: This pan tilt head has square plate with four screws mounting at corners.
Q: Will the fluid head fit to this head?
Ans: Yes, you can mount fluid head on the head plate.
Q: Will it fit to 100mm bowl tripod?
Ans: No, It will not fit to bowl tripod.
Q: Will it mount on fluid head?
Ans: No, It will not mount on fluid head.
Q: Can I purchase this head with the compatible tripod?
Ans: Yes, you can purchase this head with tripod and tripod adapter.
Q: Do you provide cable for the battery?
Ans: Yes, we provide 3 meter long cable for using with the battery.
Q: What is the gear material?
Ans: Small gears are made of brass and bigger gears are made of aluminum.
Q: Does the joystick come with handle to clamp on jib crane?
Ans: Yes, the joystick control box comes with a handle to clamp it on a jib crane.
Q: Is the camera plate height adjustable?
Ans: Yes, you can adjust the height of camera plate.
Q: How many circle it can complete?
Ans: This pan tilt head can take two complete 360 degree circles.
Q: Which motors are used in this head?
Ans: High torque, coreless 12V DC motors are used in this head.
Q: What kind of battery I need to operate it?
Ans: You need 12V battery to operate this head. You can buy our 12v power pack for it :
Proaim Power Pack
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.
Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
