Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/66lb

For 3-Axis Gimbals | With Dampening Head & Remote Controller.

Original price CAD 9,727.00 - Original price CAD 9,727.00
Original price
CAD 9,727.00
CAD 9,727.00 - CAD 9,727.00
Current price CAD 9,727.00
SKU : JB-SCSR-30

Q&A

Have a Question?

Ask a Question



An Advanced, Retractable Jib Crane for Precisely Controlled Camera Moves!

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

Cinematography at Its Best

A meticulously engineered retractable Jib Crane delivering effortless stability with a 30kg/66lb payload!

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

Super-Smooth Footage

A high-functioning Dampening Head that gracefully eliminates jerks from rapid camera movements!

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

Advanced Automation

Powered by a motorized Controller, enjoy excellent command of every camera move!

Scissor Crane Specifications

Construction

  High-Grade CNC Aluminum

Compatible Stand

  Proaim Toro Heavy‐duty Mitchell Camera Tripod Stand (TP‐ TORO‐01)
  Proaim Gravity Heavy‐duty Camera Tripod Stand (TP‐GVTY‐ 02)

Payload

  up to 30kg / 66lb

Total No. of High-Speed Steel Bearings

  70

Total Length Extended

  17feet / 5.2m

Total Length Closed

  5.7feet

Extended Height from Ground

  15.7 feet on 2.91 feet height of stand

Closed Height from Ground

  6.3feet

Crane Pan Lock

  Yes

Crane Tilt Lock

  Yes

Self‐balance Weight (Extended/Collapsed)

  Jib self-balancing with 68kg Weight
  If the camera weight is 1kg, the jib is balanced with 68+3.7kg = 71.7kg
  If the camera weight is 5kg, the jib is balanced with 68+18.5= 86.5kg
  If the camera weight is 10kg, the jib is balanced with 68+ 37= 105kg
  If the camera weight is 20kg, the jib is balanced with 68+74 = 142kg
  If the camera weight is 30kg, the jib is balanced with 68+111 = 179kg.

Power Source

  V‐Mount Battery (Not Included) recommended more than 8000mah battery.

Maximum Speed (on max load): full battery operation of standard V mount 14.8volt.

  Scissor Jib Forward Speed - 13second
  Scissor Jib Reverse Speed - 10second

Minimum Speed (on max load): full battery operation of standard V mount 14.8volt.

  Scissor Jib Forward Speed - 30second
Scissor Jib Reverse Speed ‐ 17second

Dimensions

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

Mitchell Dampening Head Specifications

Construction

  Aluminium

Payload Capacity

  10kg to 30kg

Compatibility

  Mitchell Mount

Camera Mounting

  Mitchell

Dampening Knob

  Yes

Dimensions

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

Weight of Dampening Head

  4.65kg / 10.2lb

Motor Specifications

IP44 Protection

  Certified

Rated Voltage

  15V DC

Rated Power

  60W*2

Nominal Current

  10A DC

Maximum Thrust Force

  1000N*2

Maximum Pulling Force

  1000N*2

Travelling Speed

  36mm/sec

Noise

  <55dB

Packing Info

Product Weight (Without Packing)

  97.6kg / 215lb

Product Weight (With Packing)

  200kg / 440lb

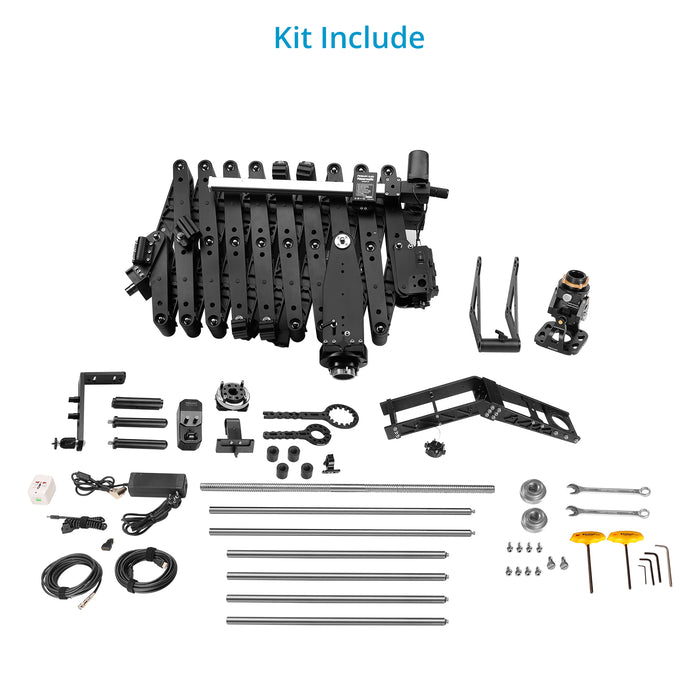

In the Box

Proaim SJ30 Powermatic Scissor Jib
4x Guide Rods
2x Guide Rods
Counter Weight Rod
Remote holding bar
Monitor Arm
Speed controller Remote
Mitchell Ronin Mount
Sway Mitchell Dampening Head
2x weight Closers
Camera mount plate
Ronin controller bracket
Counter weight bracket
Clamp for remote
Controller Spiral cable
BNC wire
HDMI male to male Wire
D-Tap wire
15V AC Adapter
Female to Female Connector socket HDMI Mini
Universal Adapter
4x Bush’s
2x Mitchell Key
4x Allen Bolts (Size:-8x20)
4x Allen Bolts (Size:-8x25)
2x Screws For Monitor Arm (Size:- 3/8”,1/4”)
2x Spanner (Size 17mm)
4x Allen Key L-type (Size:- 1.5mm,2mm,4mm,5mm)
2x Allen key T-type (Size:- 5mm,6mm)
Flight Case

User Manual

01.

Precise Engineering

Elevate your cinematography to achieve stunning, captivating visuals as you move your camera in and out with our 17ft Proaim Powermatic Scissor Crane.
The intelligent design has a controller and dampening head that enables the crane to retract forward or back at the set speed and dampening level, delivering super smooth shots.
The high-grade aluminum-built jib crane can withstand a payload capacity of up to 30kg / 66lb.

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb
Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

02.

Effortless Operation

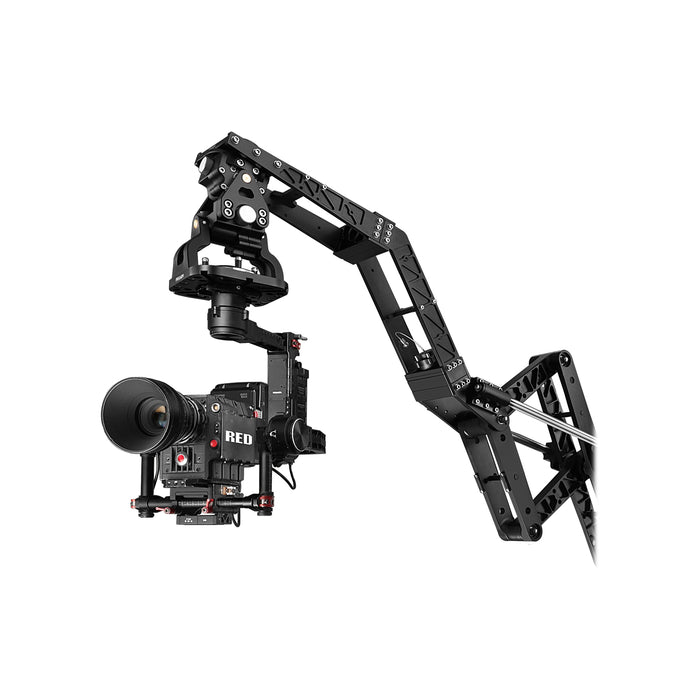

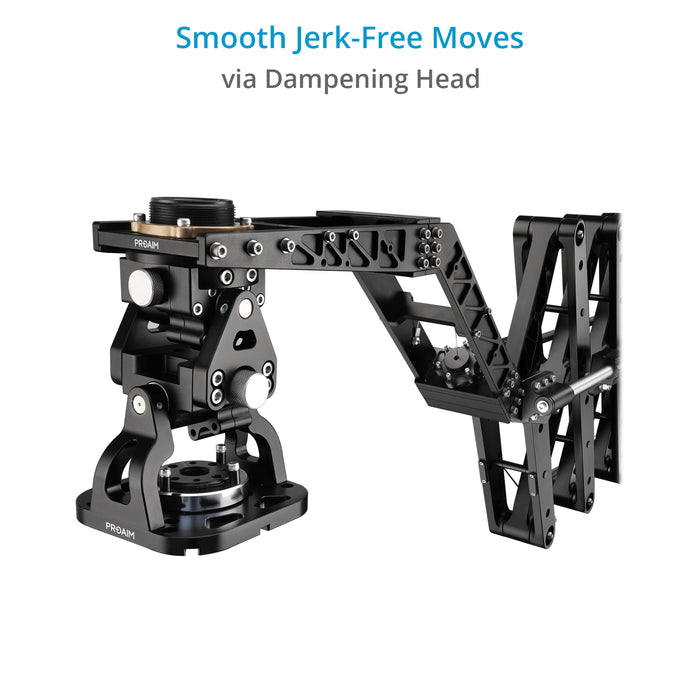

The crane has an excellent Dampening head that effectively repositions the 3-axis gimbal back to its position during rapid movements with its unique dampening effect, offering smooth extensive camerawork.
Additionally, the high-speed steel bearings ensure outstanding durability & strength while providing smooth soundless movement every time you extend or retract the Jib.
The Scissor Crane provides excellent support and stability to your setup, when used with optional Proaim Toro Heavy-duty Mitchell Camera Tripod Stand or Proaim Gravity Heavy-duty Camera Tripod Stand.

03.

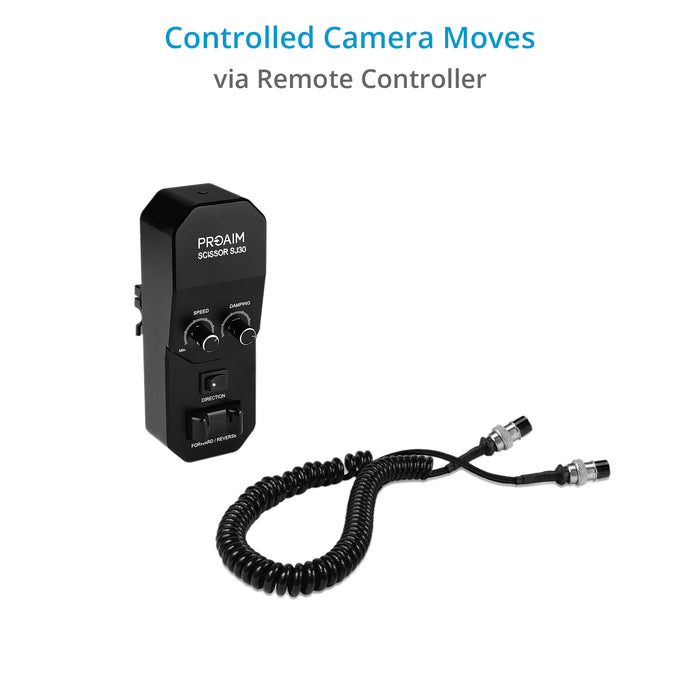

Full-Featured Controller

With these super-functional features, the controller efficiently controls forward/reverse settings, Damping Adjustment, Speed Control & Direction Control, rendering enhanced control and precision.
Retraction/Expansion
The forward/reverse buttons let you conveniently push out and pull in the jib arm.

Speed Controller
As the name suggests, the speed dial lets you control the speed intensity of the jib movements.

Damping Adjustment
The damping adjustment dial lets you control the level of damping and facilitates smooth, stabilized movements as the jib expands & retracts.

Direction Control
The direction button lets you lock the direction you want your jib to move- forward or reverse.

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb
Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

04.

User-Convenience

It has two High-Performance 15V DC motors that facilitate a better driving force to the jib for smooth and silent operation.

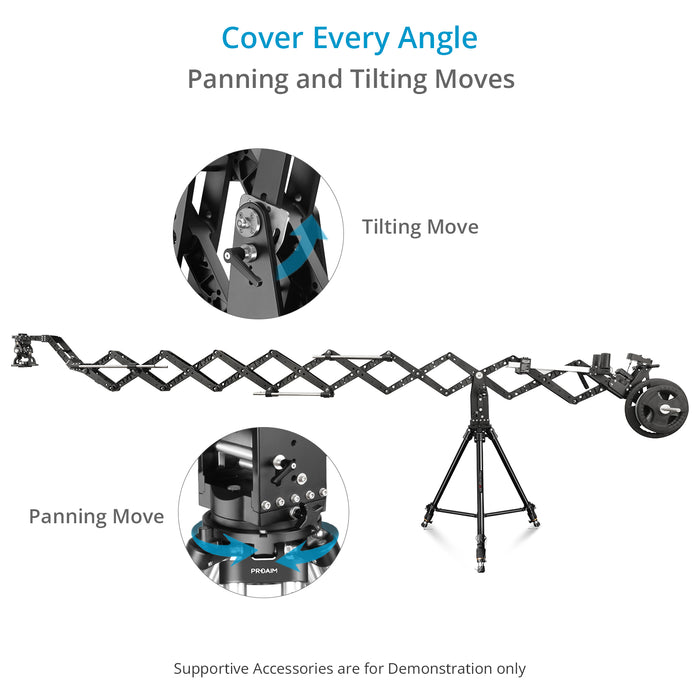

Its tilt lock lets you fix the jib's angle to get linear tracking shots, and its pan lock enables locking the pan movement for achieving high/low angle shots.
It also has Mounting Arms that can be mounted left/right per your requirement for attaching an LCD monitor that facilitates better viewing of shots.

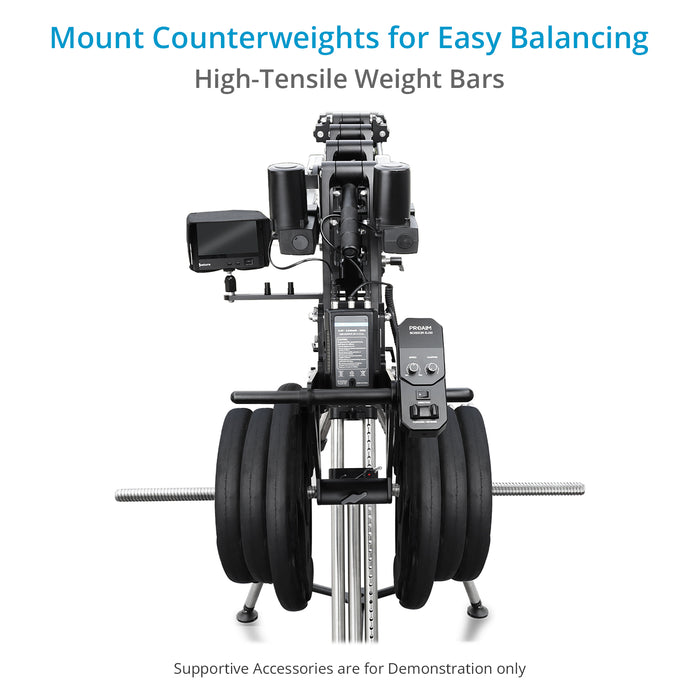

Furthermore, we have included Hi-tensile weight rods to add counterweights, offering perfect balance for steady and effective shooting.

05.

Simplified Transport

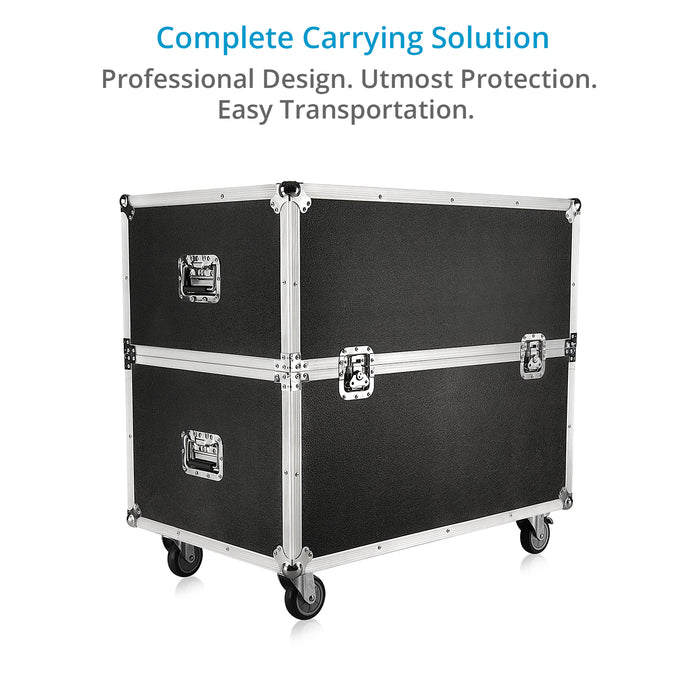

The Complete Crane System fits in a Flight Case for easy storage and carriage to different sets and locations.
The collapsible jib easily fits into tight indoor spaces like a private vehicle and on-location shoots.

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb
