- User Manual

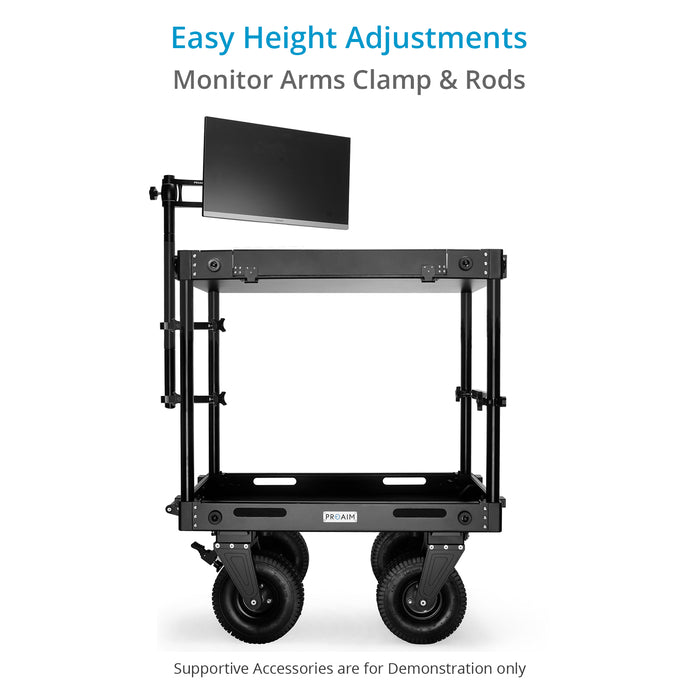

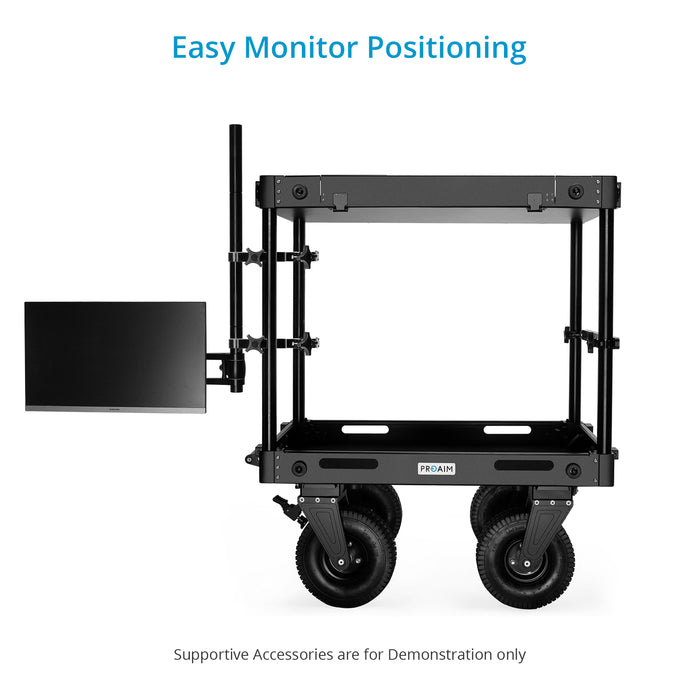

The Proaim Monitor Arm System offers smooth range of horizontal articulation. It comes with a pre-tensioned articulated head, making it easy to move large monitors, or even large computers like the 27in iMac, to a proper ergonomic location. Proaim Monitor Arm mounts to any Proaim Victor Cart using the Monitor Arm Clamps included in the system. Once the system is mounted, you can adjust the height effortlessly on the mast to accommodate different eye heights, along with arm movement and articulating the monitor in different positions. Constructed from High-grade aluminum - the Proaim Arm can support displays and iMacs that weigh up to 25kg / 55lb and the maximum reach of arm is 16.75in.

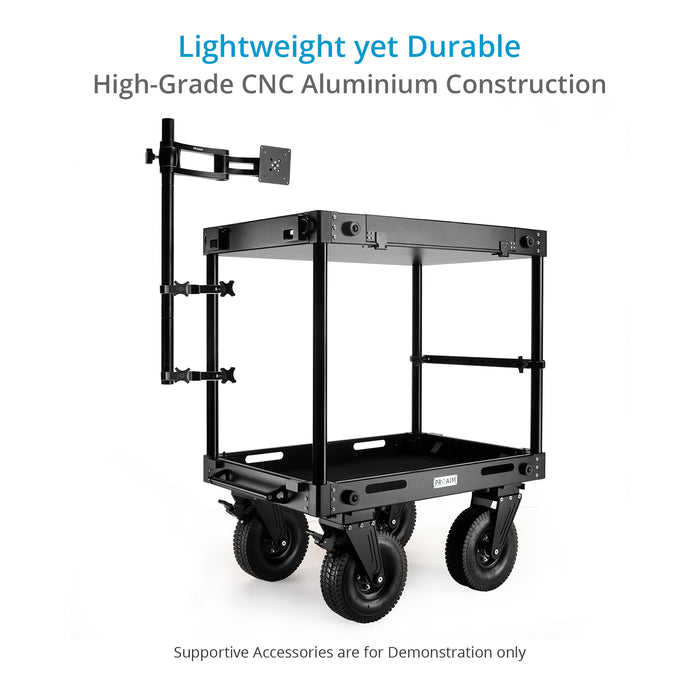

- Construction: High-grade CNC Aluminum
- Payload: up to 25kg / 55lb
- Monitor mounting: M3x10 screws (not included)
- Maximum reach of arm: 16.75 inch
- Diameter of Rods: 37.65mm
- Length of Rods: 40cm each
- Proaim Monitor Articulated Arm
Q&AAsk a Question
what Vesa mounting patterns does the VCTR-MA accept?
The Proaim Monitor Articulated Arm for Camera Cart VCTR-MA can be mounted using M3x10 screws (not included). Here is an image for your reference: https://prnt.sc/26bbc7j
What is the distance between screws on the Vesa plate to the arm, and the size of these screws of Proaim Monitor Articulated Arm ?
Please find below images for the required dimentions of Vesa plate of VCTR-MA.
Total distance between mount to arm is 44 Cm, please find below image for more details
Does the mount rotate so I can view my monitor vertically?
Yes, the mount will rotate vertically.
Will this mount allow the monitor to be rotated to vertical/portrait?
Yes, you can mount the monitor in a vertical position as well.
Are you able to sell just the swing arm and not the pipe and mounts?
Yes, we can provide the mounting arm of VCTR-MA.
