Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload - 5kg/11lb

Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload : 5 kg / 11 lb

2-Axis Motorized Head with 12V Joystick Controller

CAD 799.00 - CAD 799.00
CAD 799.00
CAD 799.00 - CAD 799.00
CAD 799.00
SKU : PT-JR

Smart Remote Head Gives You The Freedom
To Be More Creative

01.

VERSATILE REMOTE HEAD

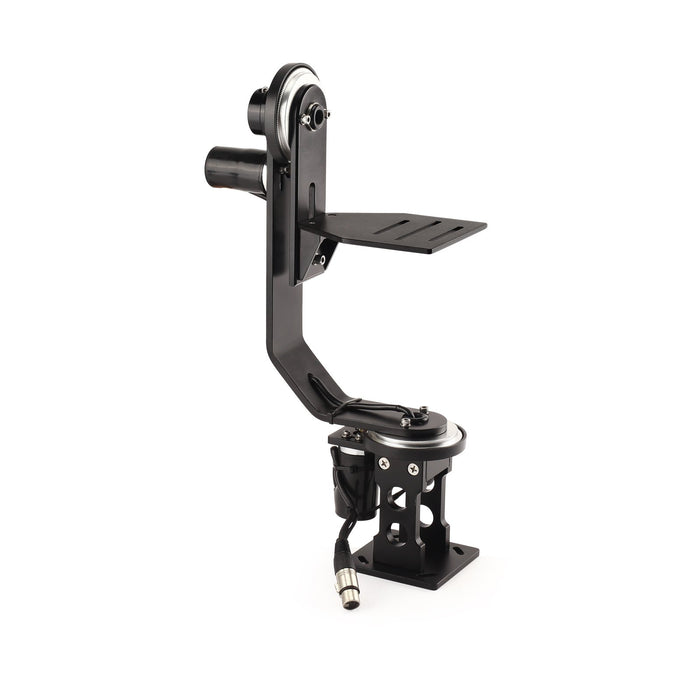

The Proaim Jr. Pan-Tilt Head with Joystick Control remotely controls your Camera when it's mounted on a tripod, jib or crane.
The Jr. Pan-Tilt Runs conveniently on 12 VDC from either a battery pack or the included AC power supply.
No jib is complete without a motorized pan/tilt head, and the Jr. Pan tilt’s robust yet light construction, the universal mounting base and intuitive control box makes it a breeze to set up and operate on virtually any jib.
The universal camera plate is adjustable for different sized setups and can support film and video cameras weighing up to 5kg / 11lb.
The precisely designed Head gives you incredible freedom of movement and gets you cinematic footage virtually anywhere.

Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload : 5 kg / 11 lb
Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload : 5 kg / 11 lb

02.

HIGH PERFORMANCE WITH ADVANCED FEATURES
Professionally designed 2-Axis Jr. Pan-Tilt Head ensures a perfect camera balance and offers smooth camerawork at all times.

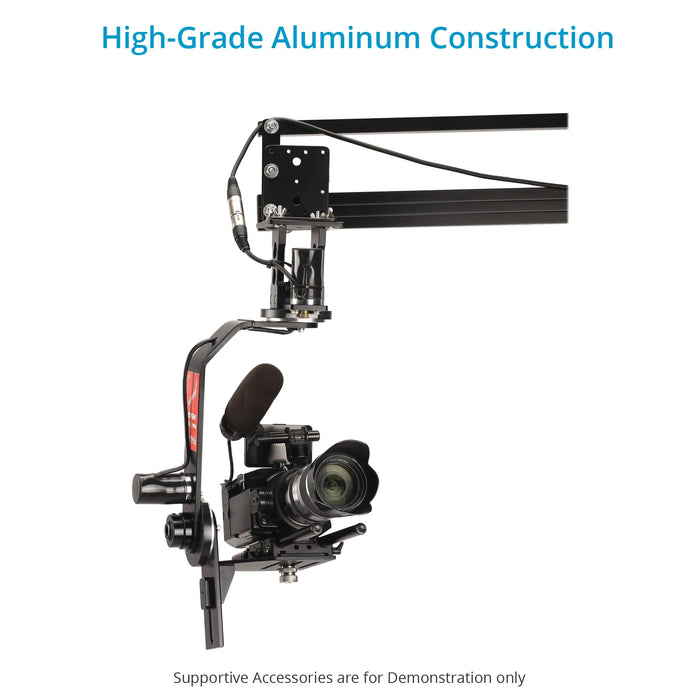

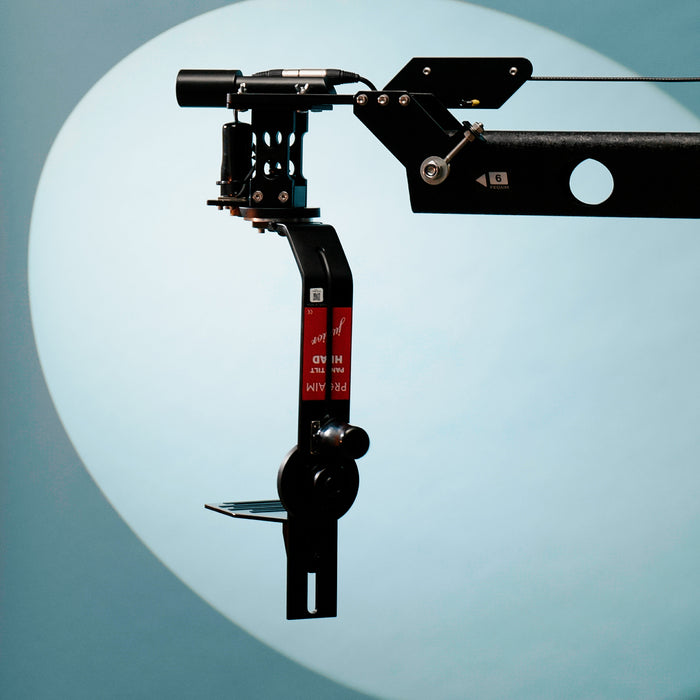

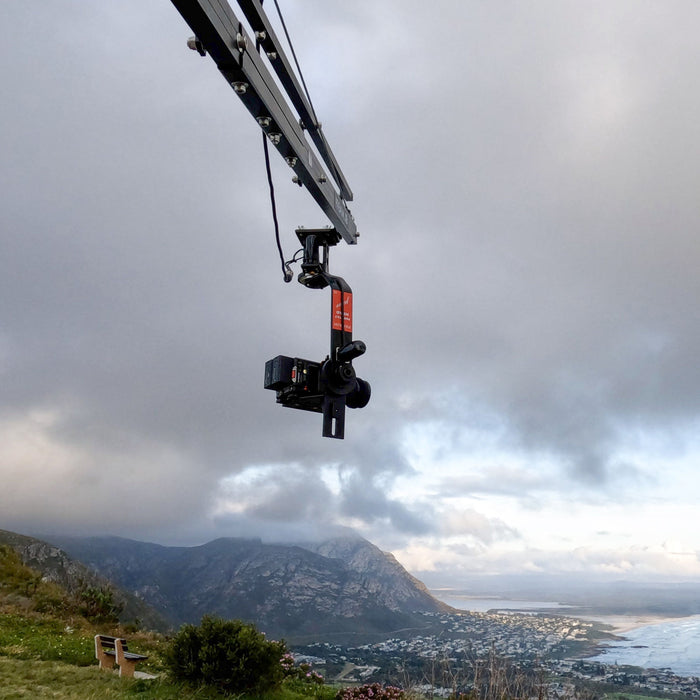

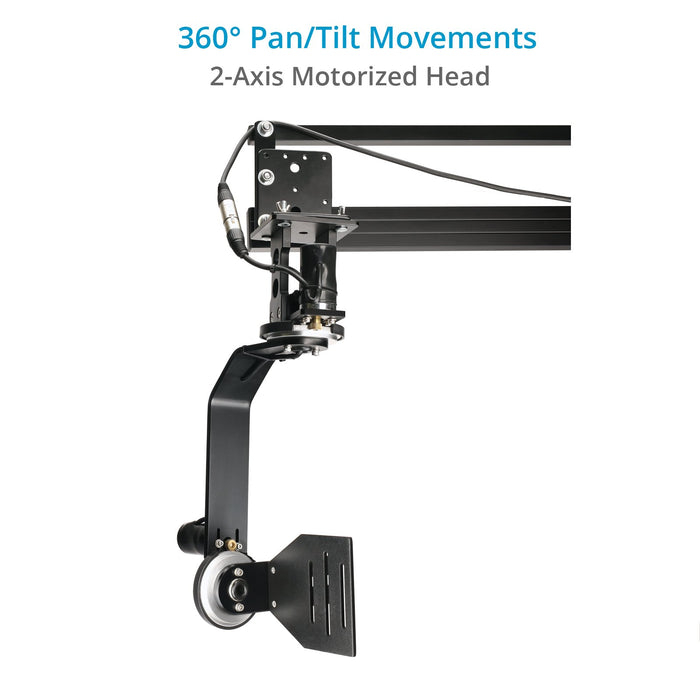

It can be mounted vertically or underslung. The Head will pan and tilt through 360°, and this enables the camera to point directly upwards or downwards when required.
The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and smooth pans and tilts. For faster, yet smooth pan and tilts, the head has a maximum pan/tilt speed of 51° per second.

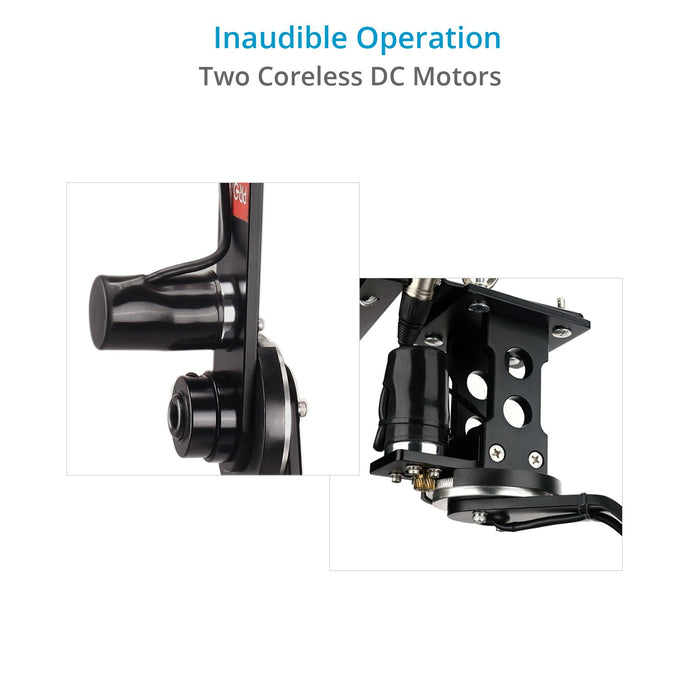

Two high-quality coreless motors and backlash-free gears work precisely, quietly and dynamically. The motor drive can be easily disengaged to balance the Camera on the camera plate.
The high strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

03.

EASY OPERATION

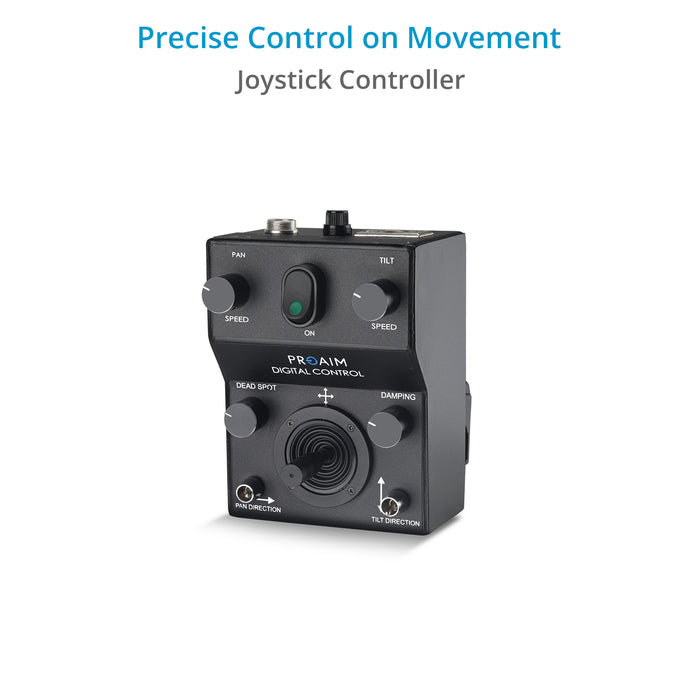

Damping Control :- Damping control knob prevent the Head from stopping abruptly with a jerk, giving you smooth endings. The amount of damping is increased by rotating the damping knob clockwise.
Dead Spot Control :- The Dead spot control determines the centre band of the joystick where no motion will occur and ensure no crossover to the other axis when not wanted. you can adjust your joystick when it is not centre by rotating this knob clockwise. If you observe the head moving without deflecting the joystick, it will be necessary to adjust centring. and to perform best in reversing the head then dead spot knob should be 30 to 40 percent.
Pan/Tilt Direction :- You can reverse the panning & tilting direction as & when required by using switch and you can also take damping function at the time of reversal. So best way to reverse the pan tilt head is by using this Reversal switch.

Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload : 5 kg / 11 lb
Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload : 5 kg / 11 lb

04.

BUILT TO LAST

Precision CNC machining, rigorous parts inspection, and thorough individual unit testing ensure A-grade quality, which serves for the lifetime.
Technological advancements make the unit light, smooth and easy to operate.

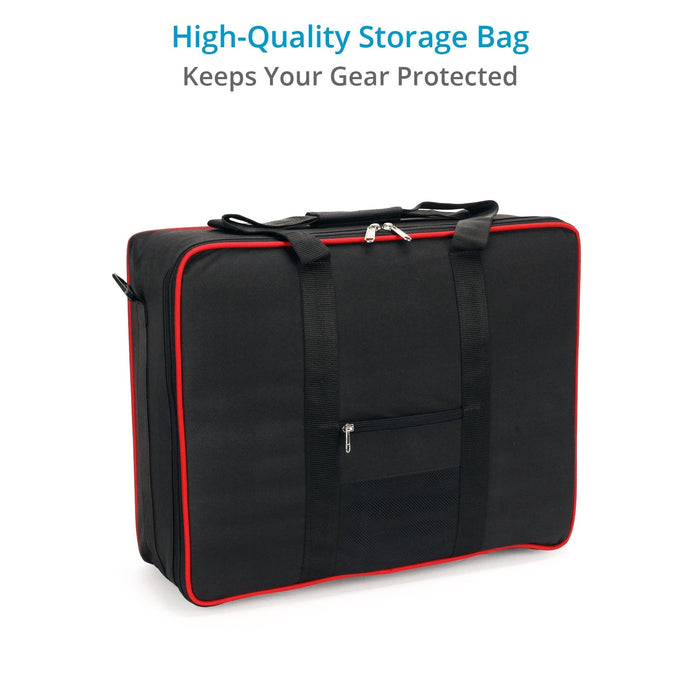

The high-quality carrying bag with custom-fit foam protects the Pan-Tilt Head for storage and transport via air or land.

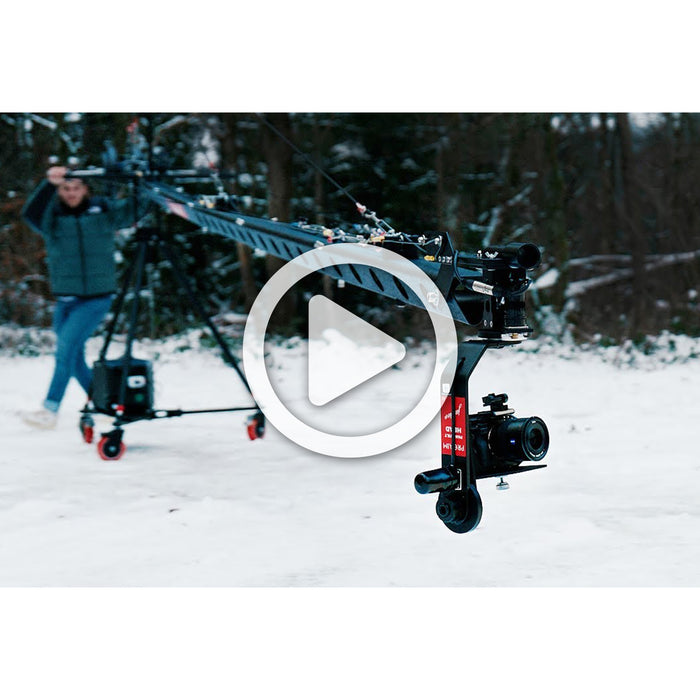

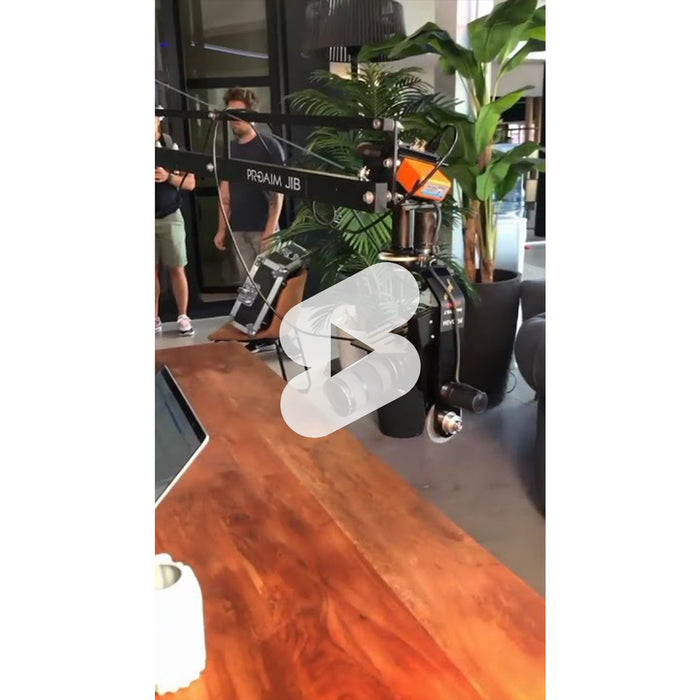

IN-ACTION VIDEOS

SPECIFICATIONS

Material of Construction

  High-grade CNC Aluminum

Load capacity

  5kg / 11lb

Pan & tilt

  Movement: 360°

Speed

  Minimum: 6°/sec
  Maximum: 51°/sec
  Covers 360° at Slowest Speed in : 2 minutes
  Covers 360° at Highest Speed in : 7 seconds

Motors

  Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

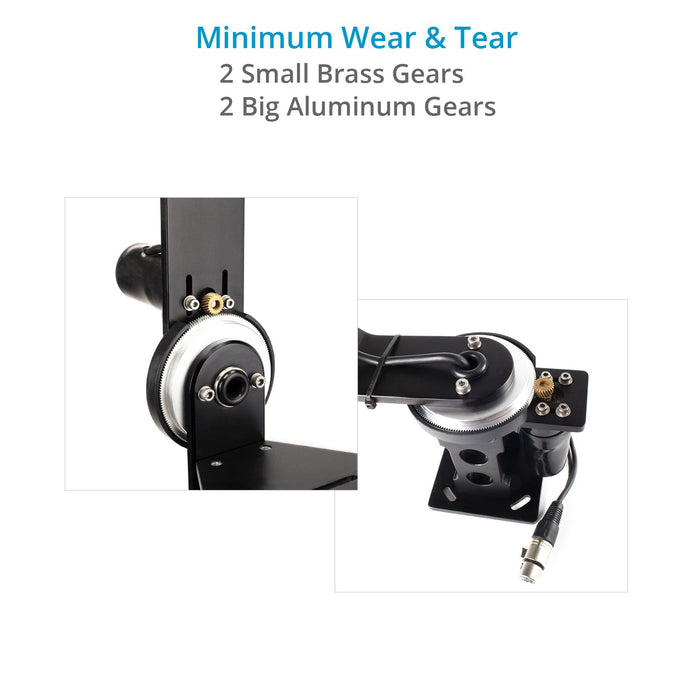

Gears

  2 Small: ⌀ 13.5mm (Brass)
  2 Large: ⌀ 88mm (Aluminum)

Adjustments

  Minimum Height of Head: 18.5" / 46.99 cm
  Maximum Height of Head: 22" / 56cm

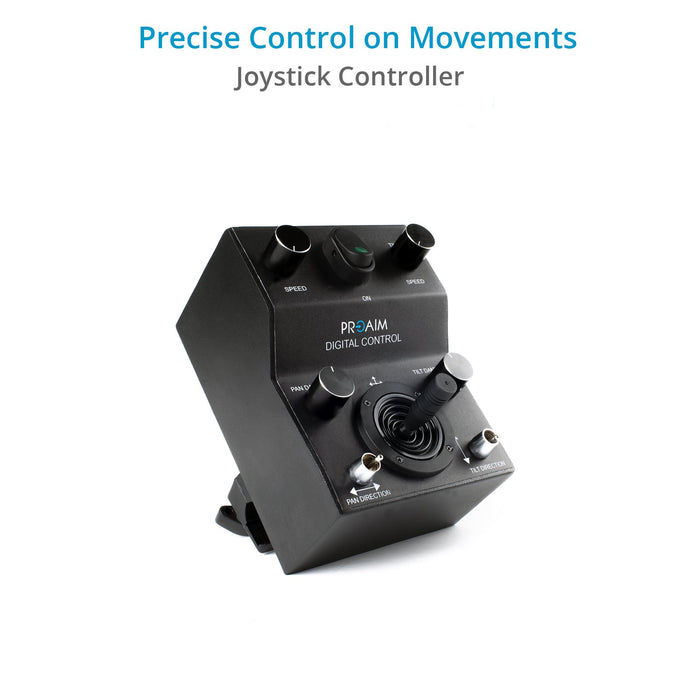

JOYSTICK CONTROLLER

  Axis: 2
  Connectors: 2x 4-Pin XLR Male Connectors
  Pan/Tilt Direction: Yes
  Upgraded with: Damping Knob

AC Adapter input

  AC 100-240V ; Output 12V DC-2A

Cables

Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long

Weight

  Pan/Tilt Head: 2.7 kg / 5.9 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm

PACKAGING INFO

Package Weight

  6.90 kg / 15.21 lb

Box Dimensions (LxWxH)

  21.25 x 13 x 7.4" / 54 x 33 x 19 cm

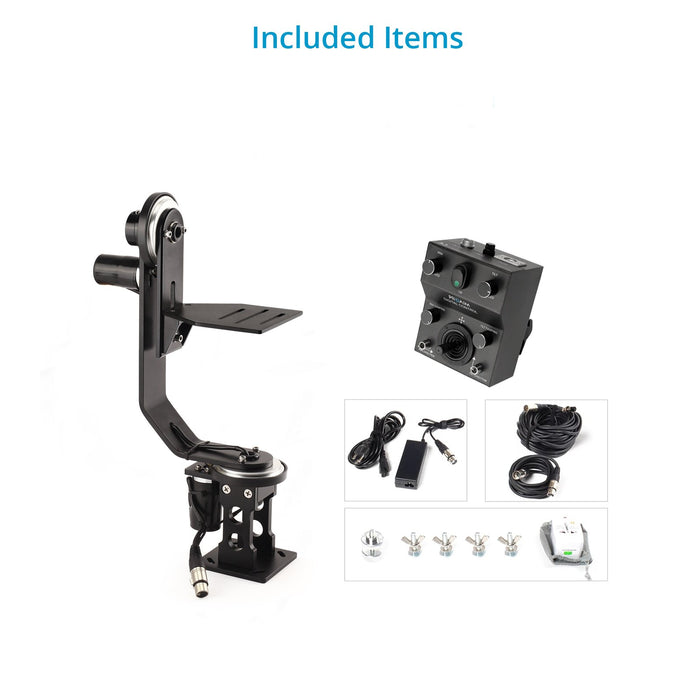

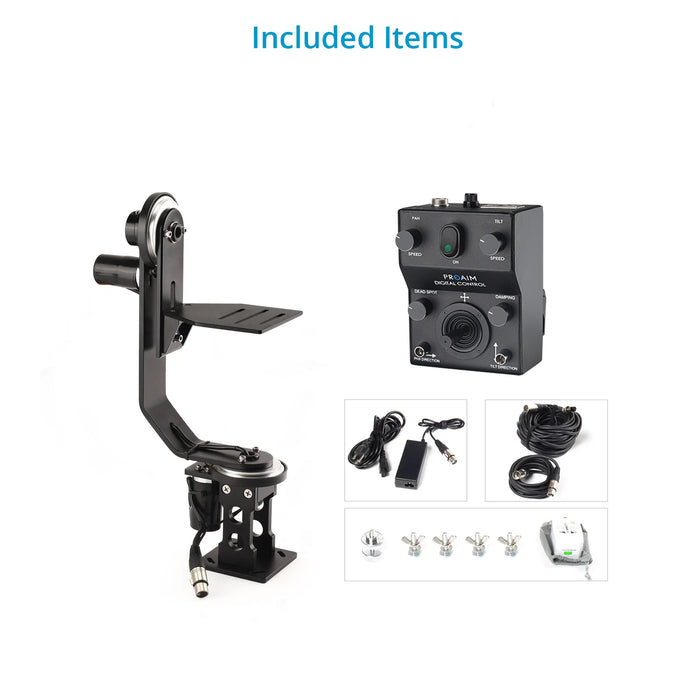

IN THE BOX

Proaim Jr. Pan Tilt Camera Motorized Head
Joystick Controller
12volt AC Adapter
15meter / 49foot long Control Cable
3 Meter long 4pinXLR cable (for using 12VDC Battery Packs)
Universal Adapter
Carrying Case with Custom-Fit Packing

USER MANUAL

  Proaim™ Jr Pan-Tilt Head with 12V Joystick Control

WHY JR. PAN-TILT IS THE BEST CHOICE?

Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload - 5kg/11lb

Creative Flexibility

It can be used with Jibs, Cranes, Tripods, etc., and holds video, film cameras weighing up to 5 kg / 11 lb.

Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload - 5kg/11lb

Minimum Wear and Tear

The high-strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

Proaim Jr. Pan Tilt Head for Camera Jib Crane, Payload - 5kg/11lb

Affordable Price

There is no other product in the market, with these many features even close to this price range. We offer Value for Money!

FAQ

Q: Which cameras it is compatible with?

Ans: The Proaim JR. pan tilt head will fit to cameras weighing upto 6kg.

Q: Will it work with blackmagic pocket camera?

Ans: Yes, it will work with blackmagic pocket camera as it is compatible with cameras weighing upto 6kg.

Q: How long is the distance it will work with?

Ans: It can be operated upto 100ft long distance.

Q: Will it fit to Kessler Pocket Jib?

Ans: The crane mounting plate should be square in shape with four mounting holes at corners in order to be compatible with this head.

Q: Will it fit to EZ FX Jib crane?

Ans: This pan tilt will not be compatible with EZ FX Jib crane as the mounting of pan tilt and jib are different.

Q: Will it mount on truss?

Ans: Yes, this pan tilt head can be mounted on a truss.

Q: How many circle it can complete?

Ans: This pan tilt head can take two complete 360 degree circles.

Q: What is the weight of the head itself?

Ans: It is approx. 2.7kg

Q: What kind of battery I need to operate it?

Ans: You need 12V battery to operate this head. You can buy our 12v power pack for it :
Proaim Power Pack

Q: Do you provide cable for the battery?

Ans: Yes, we provide 3 meter long cable for using with the battery.

Q: What is the gear material?

Ans: Small gears are made of brass and bigger gears are silver.

Q: Does the joystick come with handle to clamp on jib crane?

Ans: Yes, the joystick control box comes with a handle to clamp it on a jib crane.

Q: Which motors are used in this head?

Ans: High Torque DC Motors of 12V are used in this head.

Q: Is the camera plate height adjustable?

Ans: Yes, you can adjust the height of camera plate.

Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?

  Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

Q: What is the warranty?

Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question



  • How long is the distance it will work with?

    It can be operated upto 100ft long distance.

  • Will it fit to EZ FX Jib crane?

    This pan tilt will not be compatible with EZ FX Jib crane as the mounting of pan tilt and jib are different.

  • How many circle it can complete?

    This pan tilt head can take two complete 360 degree circles.

  • What kind of battery I need to operate it?

    You need 12V battery to operate this head. You can buy our 12v power pack for it :
    Proaim Power Pack

  • Does the joystick come with handle to clamp on jib crane?

    Yes, the joystick control box comes with a handle to clamp it on a jib crane.

  • Will it work with blackmagic pocket camera?

    Yes, it will work with blackmagic pocket camera as it is compatible with cameras weighing upto 6kg.

  • Will it fit to Kessler Pocket Jib?

    The crane mounting plate should be square in shape with four mounting holes at corners in order to be compatible with this head.

  • Will it mount on truss?

    Yes, this pan tilt head can be mounted on a truss.

  • What is the weight of the head itself?

    It is approx. 2.7kg

  • Do you provide cable for the battery?

    Yes, we provide 3 meter long cable for using with the battery.

  • What is the gear material?

    Small gears are made of brass and bigger gears are silver.

  • Which motors are used in this head?

    High Torque DC Motors of 12V are used in this head.

  • Is the camera plate height adjustable?

    Yes, you can adjust the height of camera plate.

  • What is the warranty?

    We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.

  • Can the motors run on 18V DC or should I step down out batteries to 12V?

    You can use max battery power of 12V.

  • What is the wiring information for the 4 Pin XLR connector

    The 4-pin XLR connector is used, in which the 4th number pin is used for DC positive, the 1st number for DC negative, and the 2nd & 3rd numbers remain unused

  • Is this DMX controllable?

    No, there is no connection of DMX with the Proaim Jr. pan tilt head.

  • What are the dimensions of PT-JR

    "Here are the dimensions Proaim Jr. Pan Tilt Head PT-JR: https://prnt.sc/fM_LFwh0wXvt "

  • Is this Pan-tilt head will give smooth Movement on my panasonic HC-X ?

    Yes,Proaim Jr Pan-tilt head will give smooth movement while using with Panasonic HC-X camera.

  • \"How can you mount a proaim pan tilt head on this crane? https://prnt.sc/iVoiuLJlt0aY\"

    You can mount the Proaim Sr. Pan Tilt Head (PT-SR) on the  Proaim Powermatic Scissor 17ft Crane (JB-SCSR-00) with the help of the Proaim Mounting Plate (AP-PTP-SCSR). Here is the link for your reference:
    https://www.proaim.ca/products/proaim-mounting-plate-for-scissor-crane-to-mount-pan-tilt-head

  • \"I have an old EZ FX Jib and am wondering if you have any pan and tilt heads that will work with a 100mm ball receptacle??? Most seem unable to fit an EZ FX jib.\"

    You can mount the Proaim Jr. Pan Tilt or the Proaim Sr. Pan tilt head on EZ FX Jib with the help of a 100mm Half-Ball adapter (BA-100).
