01.
Value Put Together In 1 Package
We understand how important role the jibs play in the Filmmaking world & every Filmmaker wants them to be super handy, easy to set up, light & travel Friendly.
Keeping that in mind, PROAIM has launched something that perfectly meets each of these criteria - Telescopic Fly-master Boom Jib for Handheld Gimbals-Extremely portable, Offers Rapid setup, Lightweight yet solid & Packs down in a small bag for Travel that too at an affordable price.
You don’t need to worry about the extra jib sections or keeping it extended when not in use at congested shoot sites. Just slide in/out when required.
Sweeping Vista Shots Or Panoramas – Capture In The Easiest Way Ever!
Most Quick, Lightweight, Handy & Compact Jib To Take Along!
02.
Versatility. Low Maintenance. High Efficiency

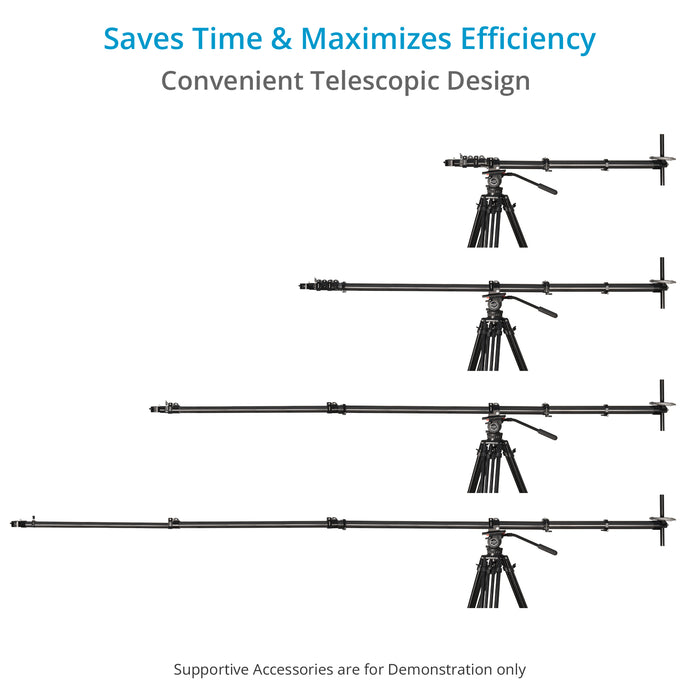

The stepless extending and retracting boom enhances the capability & offers full freedom to the operator to set it up at the desired length within seconds.
You just need to slide the sections in or out & secure them at the needed length.

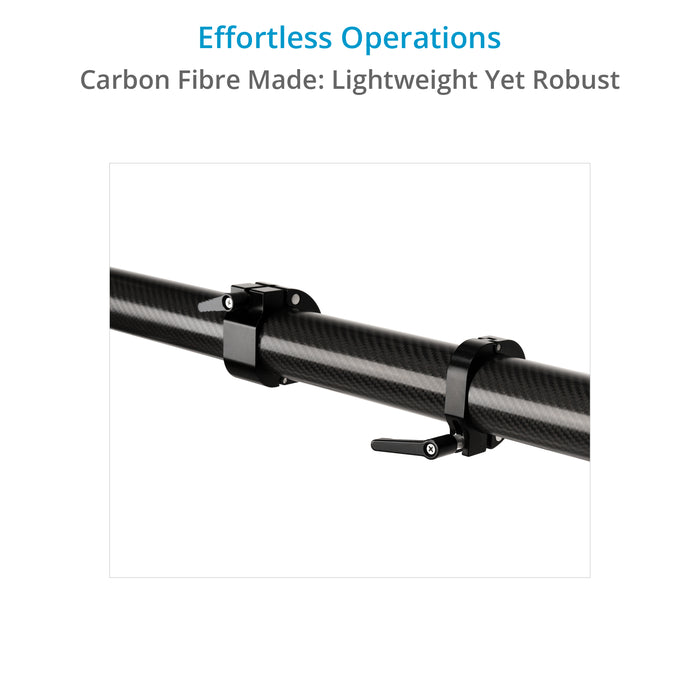

Carbon Fibre construction makes it advantageously lightweight & rigid enough to resist bending.

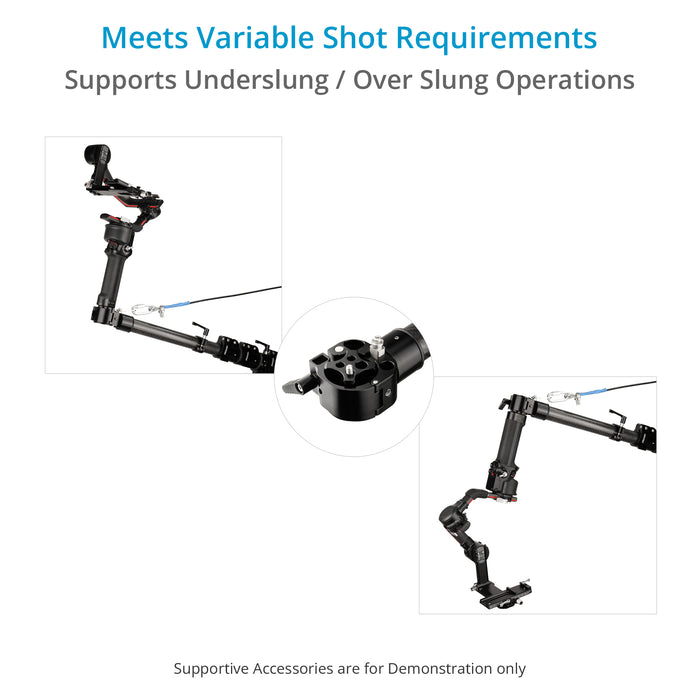

It facilitates convenient underslung & over-slung operations for various shot requirements.
03.
Mount All Accessories You Would Need
It’s compatible with Zhiyun Crane-2 & other hand-held gimbals with 1/4” or 3/8” Mounting threads.
It comes with a tripod mount with 1/4"-20 and 3/8"-16 threads on the bottom to mount it on the fluid head.
Tripod mount also has a total of three 1/4"-20 threaded holes on the sides to attach monitors & other accessories.
04.
Assured Stability & Perfect Balancing
High-grade Aluminum constructed clamps at each section’s end promise a strong clamping force.
It comes with 3 adaptable Snap rings to restrict the extended sections from sliding back while using the jib at a high angle.
Also includes a stress cable for a fully extended length to ensure extreme stability.
Provided highly robust weight rod supports universal weight plates with a 25mm hole diameter.
SPECIFICATIONS
Construction
Body: Carbon Fibre
Clamps
High-grade Aluminium Clamps
Length
Fully Extended: 13ft
Length of 1st 3 Each Section: 3ft
Length of Last Section: 4ft
Sections Diameter
1st Section: 36mm
2nd Section: 41mm
3rd Section: 46mm
4th Section: 46mm
Payload
6.8 kg / 15 lb
Tripod Mounting Platform
3 x 1/4"-20 Female (Bottom)
2 x 3/8"-16 Female (Bottom)
2 x 1/4"-20 Female (Side)
1 x 1/4"-20 Female (Other Side)
Adaptable Lengths
13ft
Balancing Chart
Self‐Balance = 2.5kg
On 1kg weight = 5kg
Weight Rod Diameter
24.7mm
Compatible Gimbals
Zhiyun-Tech Crane-2 Gimbal (Direct)
Single Handle Gimbals with 1/4"-20 & 3/8"-
16 Mounting Threads (Using Given Adapter)
Dimensions
Product Weight (without packing)
4.3 kg / 9.47 lb
Product Weight (with packing)
9.40kg / 20.7lb
IN THE BOX
Proaim Fly-Master Jib for Zhiyun Crane-2
Top Cable Wire
Cable Guide Rod
Weight Rod
USER MANUAL
