Proaim Dynamic Wedge Pan/Tilt Camera Plate

Camera Payload: 20kg/44lb | Tilt Angle: 0-90° | Pan Adjustment: 35-70°

Save 39% Save 39%
Original price CAD 220.00
Original price CAD 220.00 - Original price CAD 220.00
Original price CAD 220.00
Current price CAD 133.65
CAD 133.65 - CAD 133.65
Current price CAD 133.65
SKU : P-MWP-D

GET PERFECTLY LEVELED OR DYNAMIC ANGLED SHOTS!

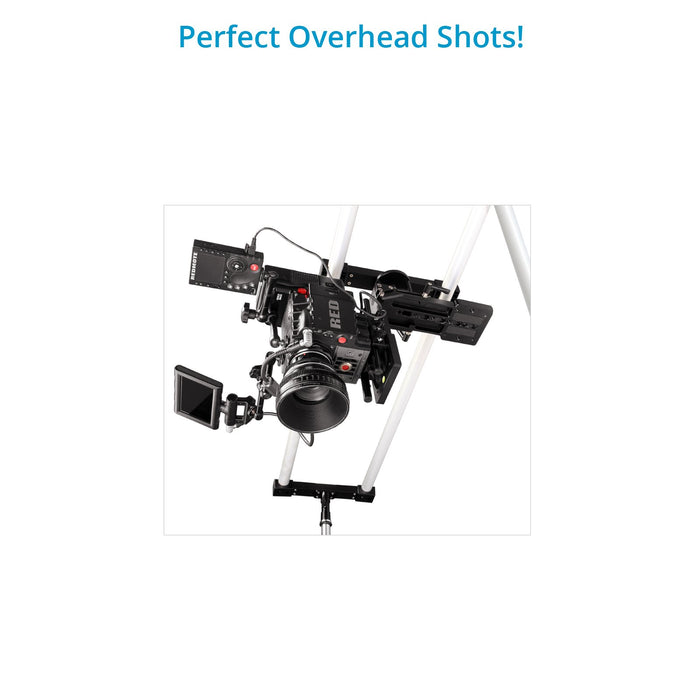

Built with Over and Under-Slung Shooting in Mind
It’s More Secure than Other Heads in the Market!!

01.

HEAVY-DUTY WEDGE PLATE

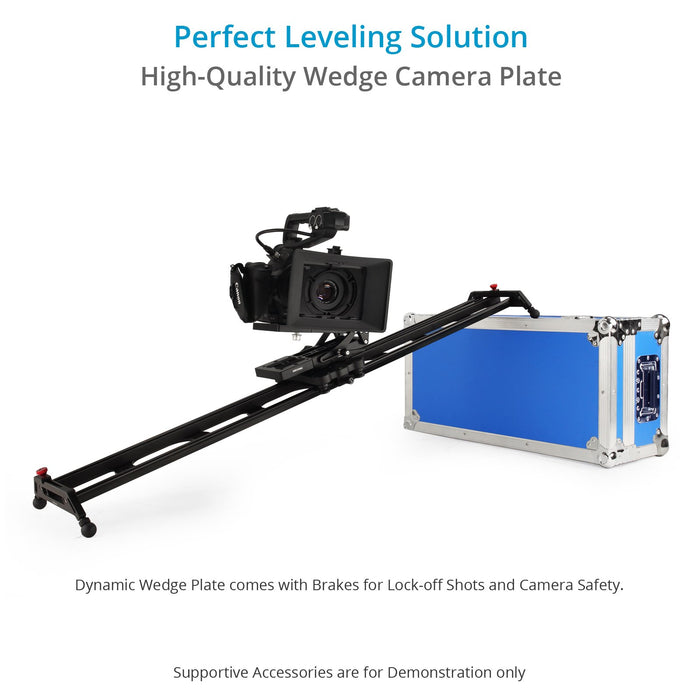

The Proaim Dynamic Wedge Tilt Camera Plate is a lightweight, compact, and durable platform for getting perfectly leveled or dynamic angle shots.
It is designed to provide you with the Dutch tilt / underslung & over-slung shots and enable you to manoeuvre your fluid head more than you normally could.
Its low weight of 1.5kg / 3lb makes it perfect for dynamic shooting such as on cars.
This High-Grade Aluminum Constructed Wedge Plate easily supports the payload up to 20kg / 44lb.

Proaim Dynamic Wedge Pan/Tilt Camera Leveling Plate
Proaim Dynamic Wedge Pan/Tilt Camera Leveling Plate

02.

SMART & SECURE DESIGN

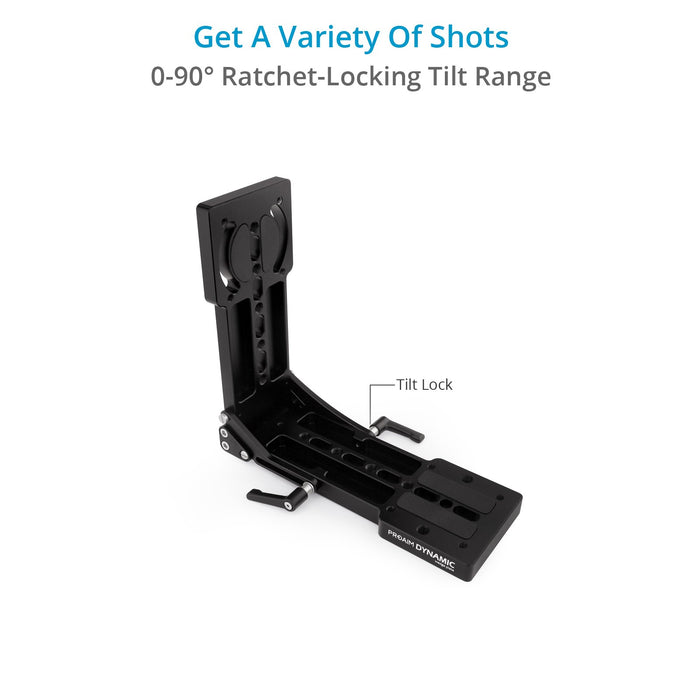

This Dynamic camera base plate has adjustable Tilt from 0 to 90° giving you the exceptional flexibility and freedom to shoot.
The dedicated low-angle ratchet lever locks securely holds the plate at the desired angle.
It also features 35 to 70° Pan Range for adjusting your shot without the need to remount your rig.

03.

USER-FRIENDLY
The Wedge Plate comes with 1/4''-20 & 3/8"-16 screws to mount DSLR Video Cameras and multiple 1/4''-20 & 3/8"-16 threads on both the top and bottom to mount other rigging/grip accessories and Tripods stands.
Several rubber pads are included to prevent the camera from sliding.
It also has a Bubble level to ensure accurate balancing.
It is excellent for setting up your camera setup with an ARRI-standard Dovetail Plate.

Proaim Dynamic Wedge Pan/Tilt Camera Leveling Plate

IN-ACTION VIDEO

SPECIFICATIONS

Construction

  High-Grade CNC Aluminum

Load Capacity

  20kg / 44lb

Tilt Angle

  0 to 90°

Pan Adjustment

  35 to 70°

Camera Mounting

  1/4"-20 & 3/8"-16 Screws

Tripod Mounting

  1/4"-20 & 3/8"-16 Threads

Dimensions (LxWxH)

  24 x 10 x 4 cm

Weight

  1.5kg / 3lb

IN THE BOX

  Proaim Dynamic Wedge Plate
  2 x Threaded Bolt

USER MANUAL
