Proaim Airwave Vibration Isolator Arm (5-30kg)

For 3-Axis Camera Gimbals - DJI Ronin, Movi & Shotover G1

SKU : VI-252-00

A Revolution in Vehicular Stabilization!
Quick Mount, Affordable, Shock Absorber System for 3-Axis Gimbals
Best Possible Damping, Peak Shock Absorption, Lifting Capacity and Stability
Offers Ultra-Smooth Moving Shots. Gives Camera Operators Total Freedom & Control.

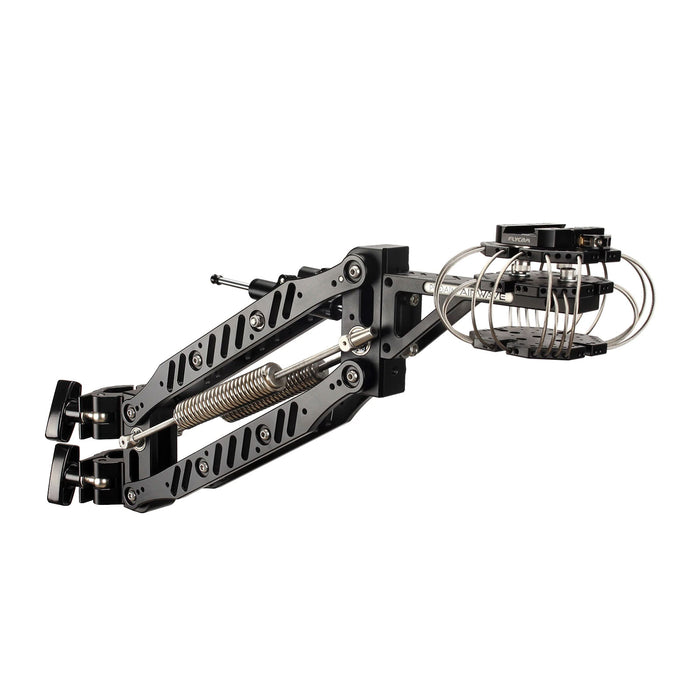

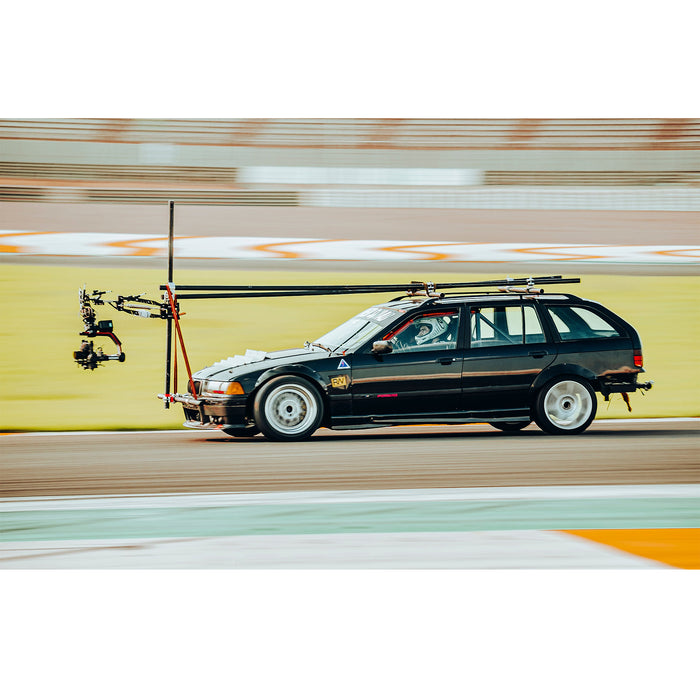

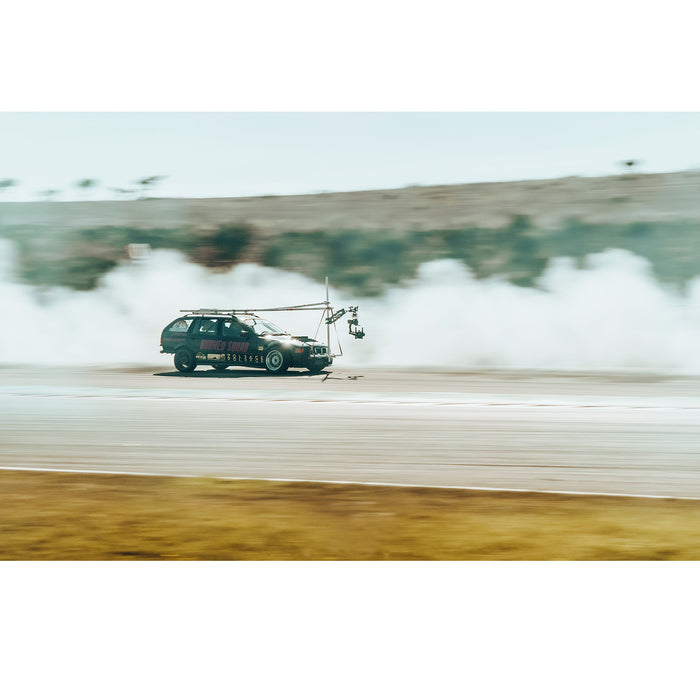

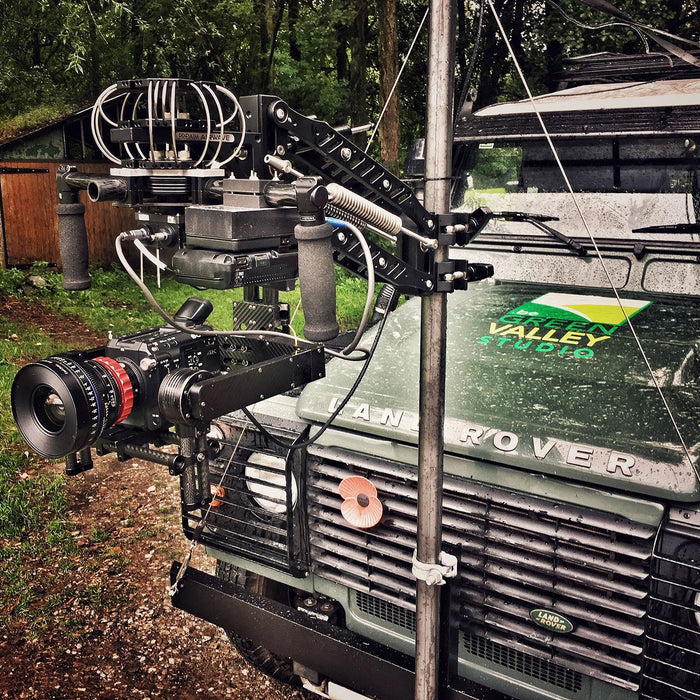

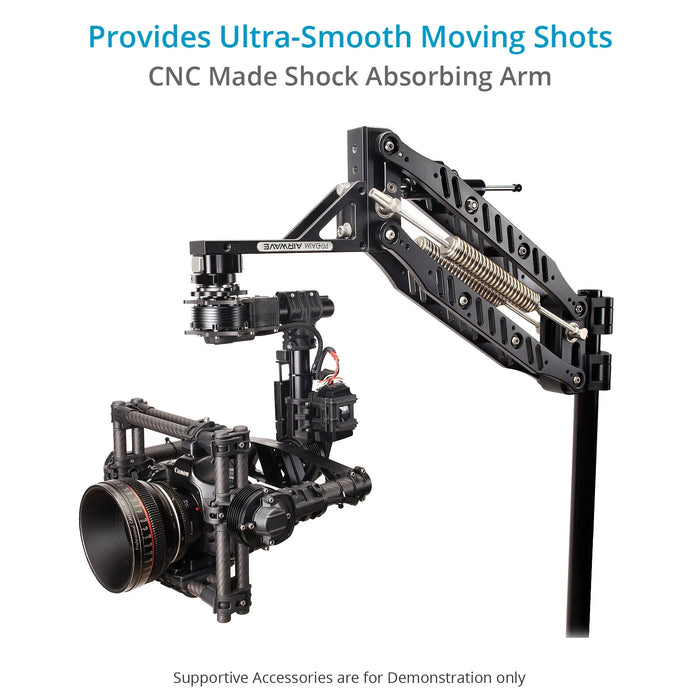

The Proaim Airwave Isolator Arm is a 3-axis dampening system with an additional Anti-Vibration Mount for stabilizing roll and tilt errors as well as vertical motion and vibrations. The Airwave arm is especially designed to be used with Handheld 3-Axis Camera Gimbals like DJI Ronin, Movi and Shotover G1. The Isolator Arm with Anti-Vibration Mount softens the vibrations typically experienced when shooting from moving platforms on rough terrain. Not only does it helps to stabilise the image, it also lessens the load on the motors of the Gimbal that now only have to work to stabilise a softened, smoother range of vibrations. It’s a hard mount system, made for gimbals that you want to mount on vehicles such as cars, ATVs, boats, snowmobiles etc.

camera vibration isolator system

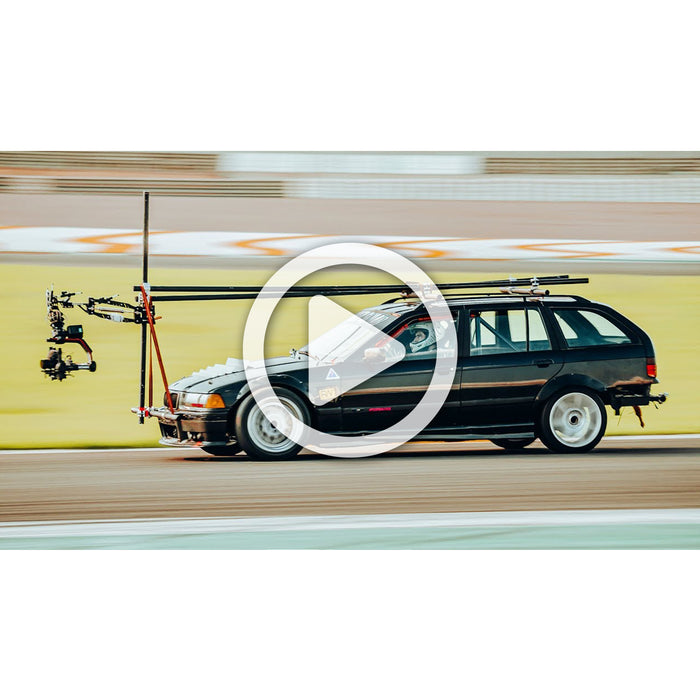

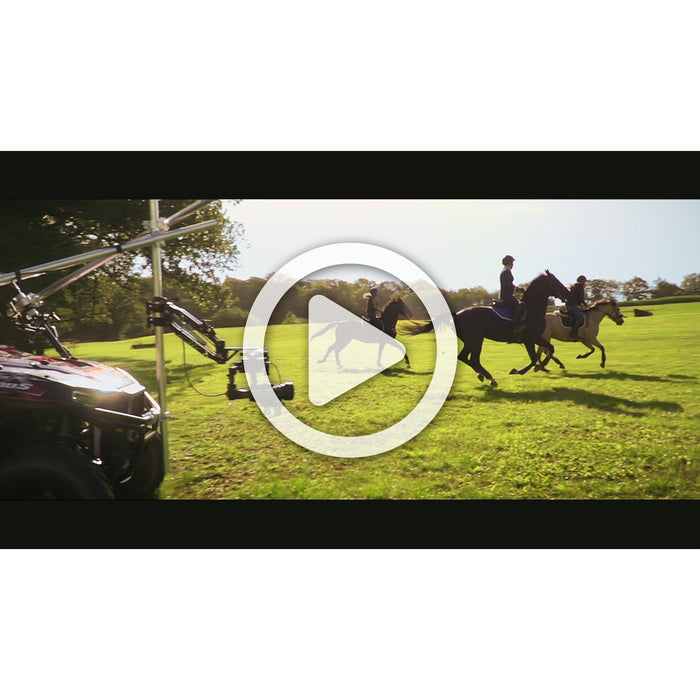

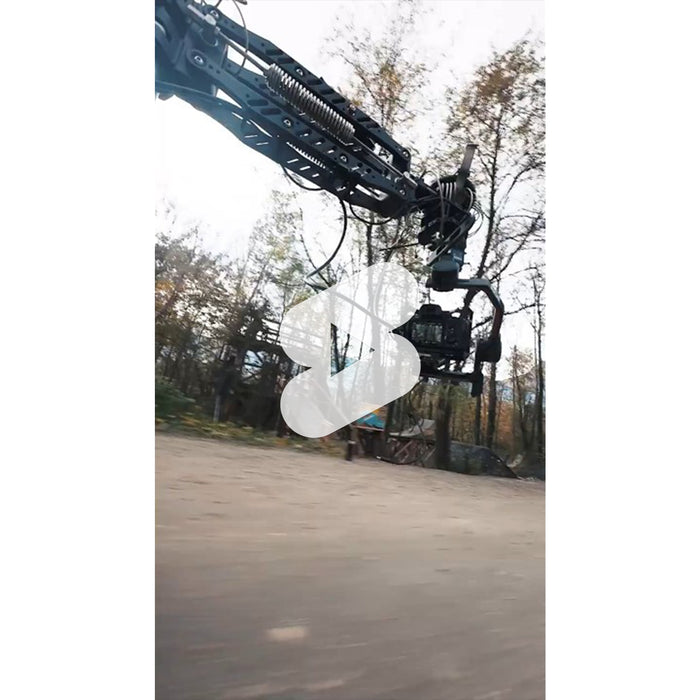

Video is for demonstration only
Actual Product may vary due to Product Improvements


-  Shock Absorber Damping System with Isolator for 3-Axis Gimbals
-  Provides Ultra-Smooth Stabilized Shots when Shooting At Any Speed On/Off Road, On Water, Airborne

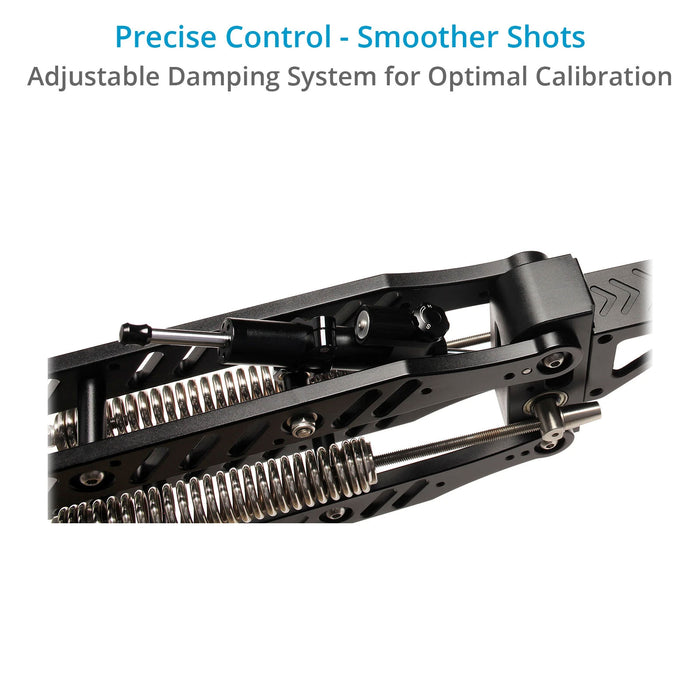

-  Removes High Frequency Vibrations & Dampens Low Frequency Oscillations
-  Effective when Shooting At Any Speed On/Off Road, On Water, Airborne
-  Set-up is Quick & Easy, No Technician Required
-  Reduces the load on your Gimbal, which Increases Motor & Battery Life
-  An Amazing Tool Designed for Gimbals to Accomplish Multiple Jobs

camera stabilizer isolator arm

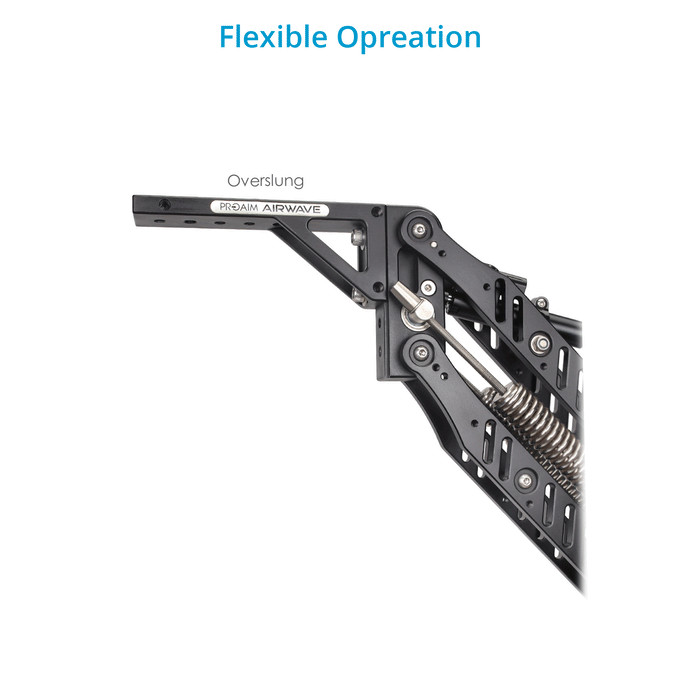

Mounting Options

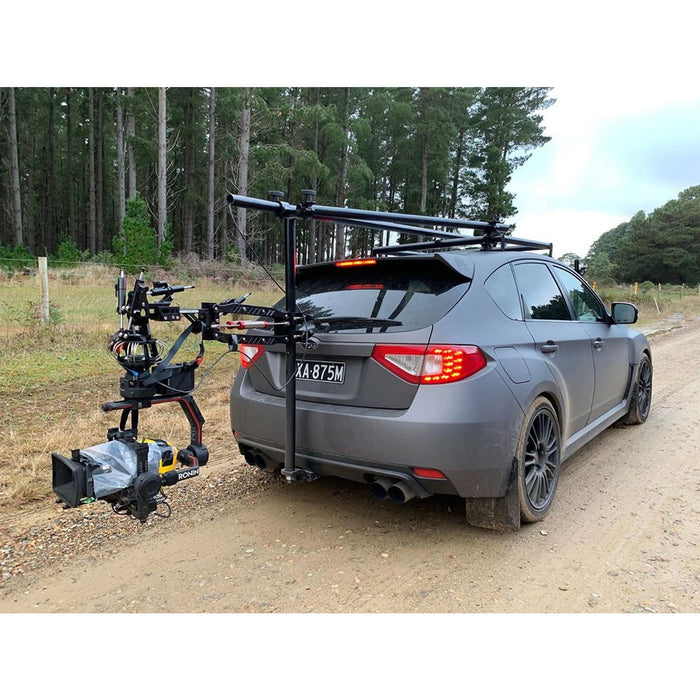

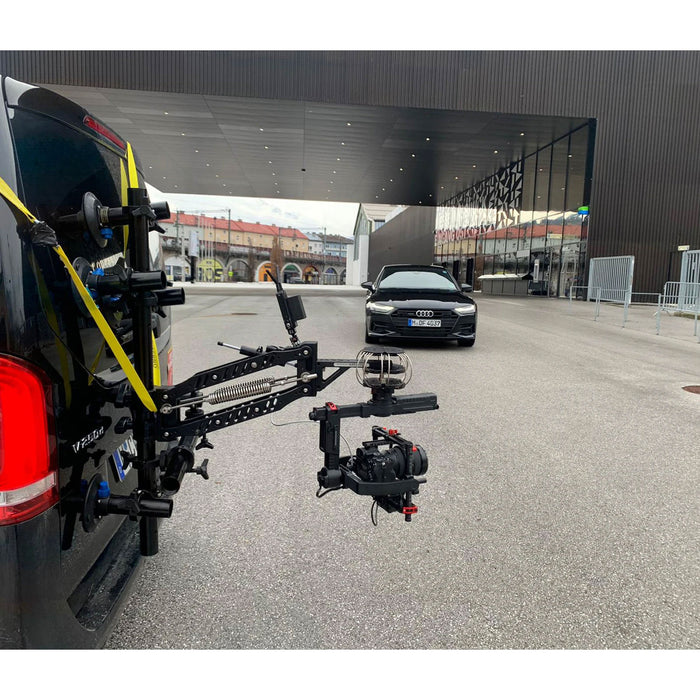

Mounting the Airwave Arm is as simple as clamping it on to a standard 38-65mm Pole. Simply clamp the Arm on Pole (Optional) with two single clamps at back of the arm. Some extra of the standard grip components like Poles and clamps can be mixed to provide different types of vehicle configurations.

camera stabilizer isolator arm

Need to Work with Heavier Set-ups?

Proaim Airwave Heavy Duty Spring Set (Optional)

Robust Spring Set from Proaim easily accommodates heavier camera set-ups from 15-30kg/33-66lb. Just change the Springs and You are Ready to Go!

camera stabilizer isolator arm

Proaim Mitchell Vibration Isolator for Camera Gimbals (15-50kg) (Optional)

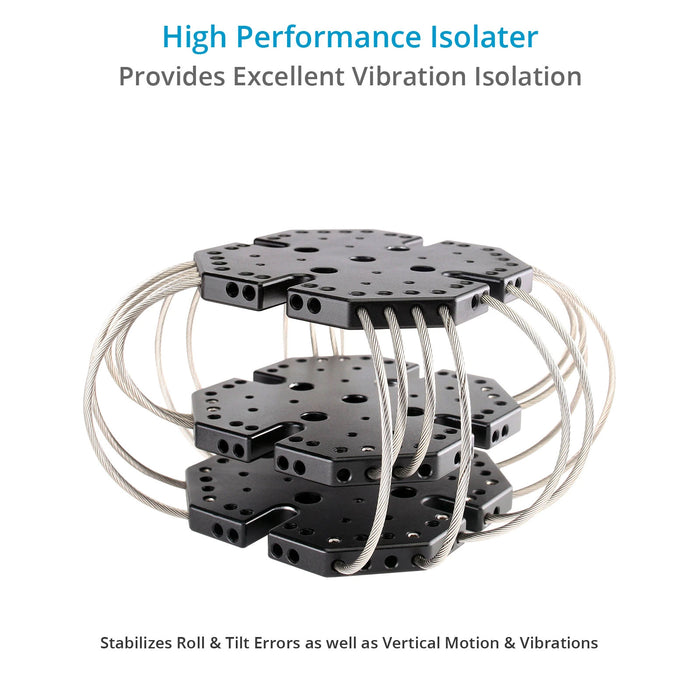

Proaim Mitchell Anti-Vibration Wire Isolator is designed to handle large Remote Pan Tilt heads and Gimbal Systems like the DJI Ronin or MōVI. This unique Vibration Isolator helps remove vibration from camera gimbals and delivers smooth tracking movement mounted on any vehicle. It absorbs jerky movements of the vehicle by utilizing strategically configured wire cables. The thickness of the wire cable is 5/16".

camera stabilizer isolator arm


Proaim Scaffold Pole With Mitchell Mount (Optional)

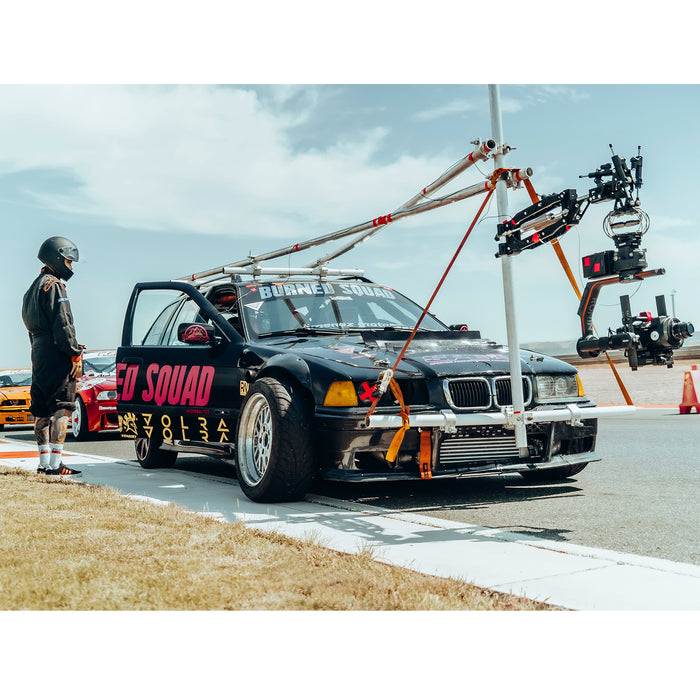

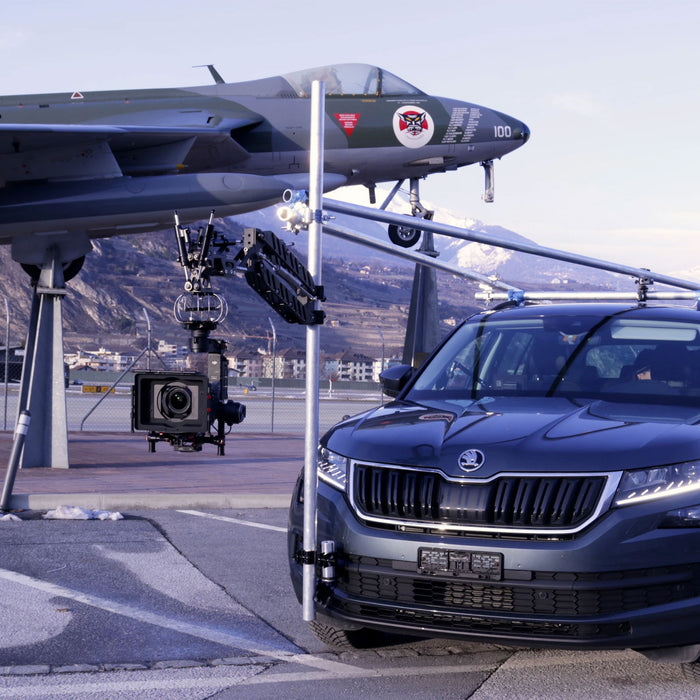

Proaim’s new Pole (Speed Rail / Scaffold Mount / Tube) broadens range of operation of Proaim Airwave Vibration Isolator Arm. The Pole allows direct fitting to Scaffold and Speed Rail Camera Rigs built on tracking vehicles, motorbike and boat rigs etc. The Pole has Mitchell mounting configuration on bottom. Standard available height is 36” and diameter is 50mm.

camera stabilizer isolator arm

CAMERA ISOLATORThe Supportive accessories are for demonstration purpose only.

- Construction: Commercial-grade Aluminum
- Arm Payload:
    Standard Spring Set- 5-15kg/11-33lb
    Heavy Duty Spring Set- 15-30kg/33-66lb (Optional)
- Wire Isolator Payload: 15kg/33lb
- Dimensions of Arm (LxWxH): 70x7.2x 5cm/27"x2.8"x6"
- Lift range: 56cm/22"
- Mounts on: 1.5 - 2"/38-50mm Speed Rail
- Product Weight: 8.2kg/18.04lb

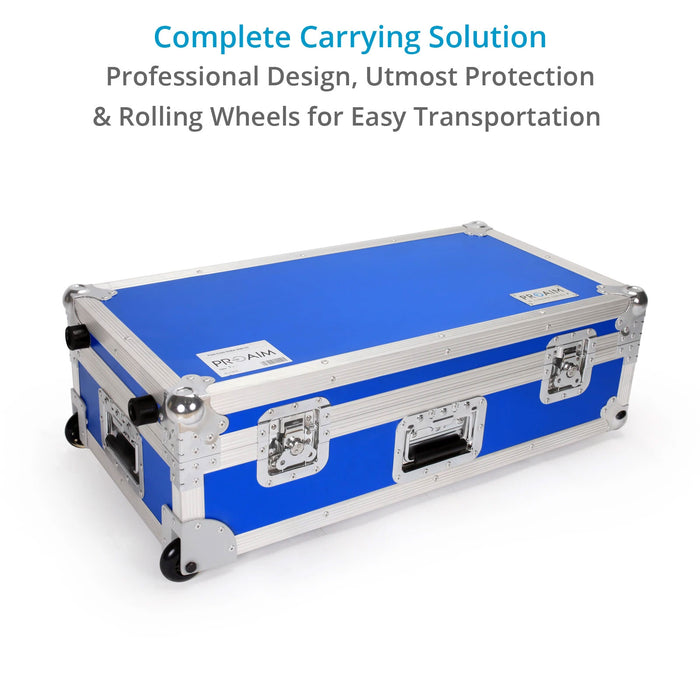

- Product Weight with Flight Case: 19.8kg/43.6lb
- Dimensions of Flight Case (LxWxH): 80cm x 42cm x 30cm

- Compatibility: DJI Ronin, Ronin M & Ronin MX
- Construction: Commercial-grade Aluminum
- Mounting slots: 1/4"-20 and 3/8"-16
- Product Weight (without packing): 0.15g/0.32lb

POLE (Optional)
- Construction: Commercial-grade Aluminum
- Length: 3ft/36"
- Outer Diameter: 50mm
- Product Weight: 2.54kg/5.58lb

(Product Revised on 13-July-2018)
- Stabilizing Arm
- Isolator
- Ronin Mounting Plate
- Flight Transport Case
