Proaim Advanced Motion Control System

Capture motorized live-motion slides with Proaim’s Advanced Motion Control System specially designed for Curve-120, Curve-180, Curve-N-Line & Line Sliders. This versatile & compact system, when attached to the slider, lets you create dynamic video and photography sequences with fluid motorized slides. Its precision motor produces smooth incremental movements, and works with cameras up to 5kg / 11lb. It weighs barely 1.6kg / 3.5lb (motor & controller). It attaches on the end of your slider in seconds.

"WHAT YOU SEE IS WHAT YOU GET"

Fast Camera Plate Connectivity

Robust quick release plate gets connected easily to straight and curved tracks of slider quickly without removing the end feet.

Quiet Precision Motor

This motion control system is powered by a quiet precision motor. The camera carriage glides effortlessly using high-end sealed bearings. The single powerful motor provides silent operation, so you can capture quality video.

Advanced Remote Controller

We created an intuitive controller to control the movement of your slider. By using the knobs on control unit, you can program a slide with specific functions and modes. You can achieve precise camera movements for interviews, establishing shots, etc. Simply turn them and your slider moves. It's that simple to operate!

Controller operates in 3 different Modes:

• Video/Normal Mode: Allows you to create manual video moves from the controller. The farther you turn from 0-10 the faster it goes (10 being the maximum speed).

• Interval Mode: Allows you to set the frequency of moves. It includes 3 adjustable parameters -
    i.) Length (in mm) – Adjust the total length of camera travel on slider from 600/900/1200 mm, through Speed/Direction knob.
    ii.) Distance (in mm) – Decide the distance of each segment, from 1-300mm, to be covered on the total chosen length, through left Interval knob.
    iii.) Pause (in sec) – Set the time span of short breaks, from 1-999 seconds, according to your need while the camera travels on chosen length, through right Interval knob. Numbers of breaks are automatically aligned when both Length & Distance parameters are tuned, and are achieved by advanced algorithms programmed within the controller.

• Loop Mode: Use the looping feature to automatically move your camera back and forth so you can focus on your subject. Adjust the speed from 0 to 10, which goes from end-to-end on the Speed/Direction knob.

With Curve-N-Line Slider

With Curve-120 Slider

With Curve-180 Slider

The Supportive accessories are for demonstration purpose only.

MOTION CONTROL

- Camera Plate Construction: High-grade Aluminum
- Motor: 30RPM 12V
- Noise level of Motor is: <40dB
- Load Capacity: 5kg / 11lb
- Product Weight (without packing): 1.6kg / 3.5lb

REMOTE CONTROLLER

- Battery Input Power: 7.2-12V DC
- Adapter Input Power: 100-240V 1A 50/60Hz
- Output Power: 12V 3A
- On/Off Switch: Yes
- Battery Plate: Yes
- Battery Working Hours: 2 hours (Battery is not included)

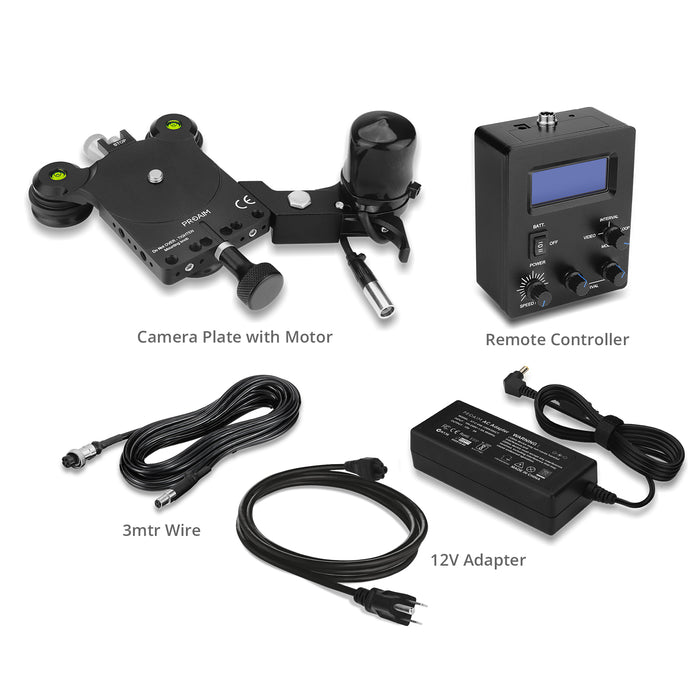

- Proaim Motion Control System
- Remote Controller
- 3 meter wire
- 12v Adapter
