Proaim 7' Wave-2 Video Jib Crane With CST-100 Stand & Portable Dolly

PROAIM welcomes you to the new and modernized era with its Proaim 7' Wave-2 Video Jib Crane With CST-100 Stand & Portable Dolly , a portable filming solution to increase your production value. The Robust jib crane is specifically designed travel crane for indoor & outdoor video productions. Its telescopic arm feature adds flexibility to frame perfect shots in indoor and outdoor spaces. This video production package includes a rugged camera dolly for smooth, dynamic moving shots and rock solid aluminum tripod stand for immense support. Now you can create the visual effects and produce incredibly smooth floating camera crane shots that add value to your filming productions and bring a quick return on your investment.

"WHAT YOU SEE IS WHAT YOU GET"

Exclusive of Weights

(Revised on 12-March-2020)

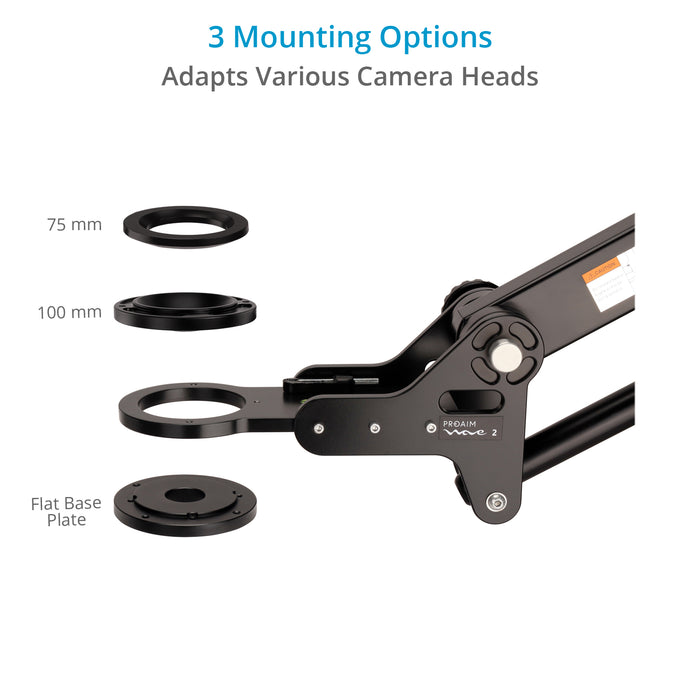

ROBUST CAMERA HEAD MOUNT The camera mount accepts 75mm fluid heads and has a 90 degree tilting angle to capture those 'off axis' shots. With solid aluminium construction and a grey finish it looks as professional as it operates.

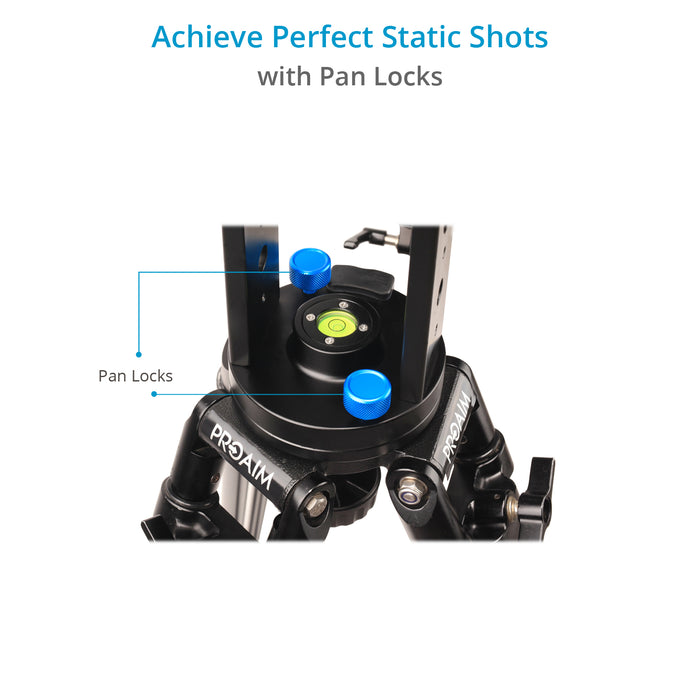

PANNING KNOBS & BUILT IN BUBBLE LEVELER The well-built pan knobs controls the panning of jib & Built in bubble leveler for fast accurate set up on uneven surfaces.

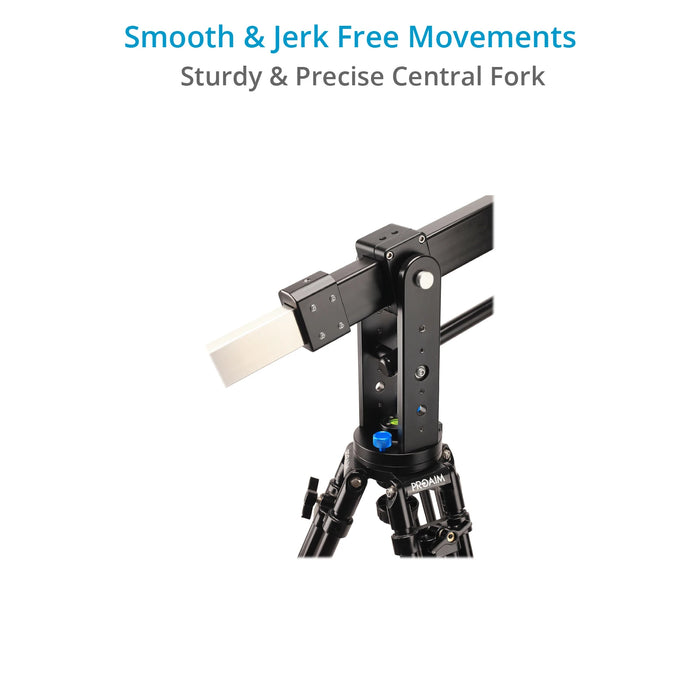

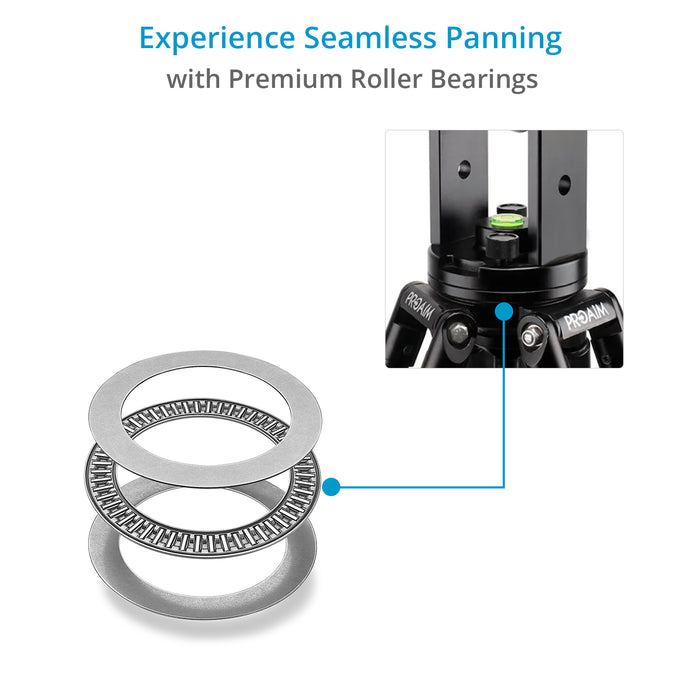

ASSEMBLY HUB Provides the perfect drag for smooth panning of arm. It swivels for absorbing unwanted vibration or movement from the operator and keep the controls in Comfortable position in any jib attitude.

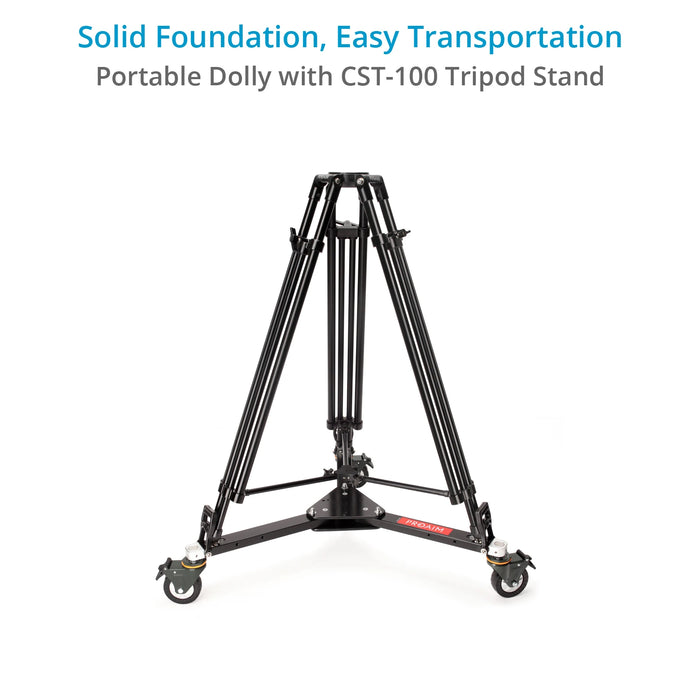

High Grade Tripod Stand
The Heavy duty stand is constructed to carry heaviest of loads with an ease. The Sturdy base ensures strong connection between the jib crane and tripod stand, extra solid knobs for secure locking.

High Strength Dolly
The versatile 3-Leg Proaim Portable Camera Dolly turns your Tripod into camera tracking device and allows you to take silver screen-worthy movement with a max payload of 500kg/1100lb.

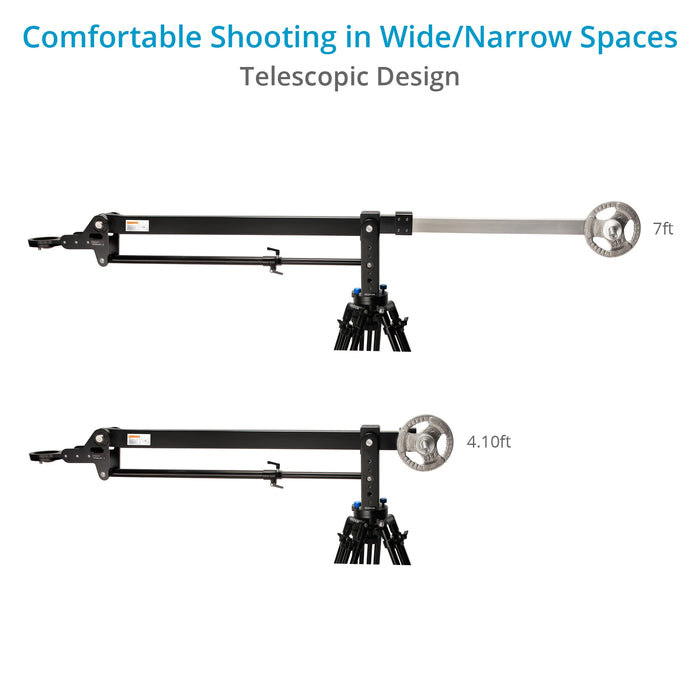

This travel friendly jib extends backward as per operator convenience for better control.

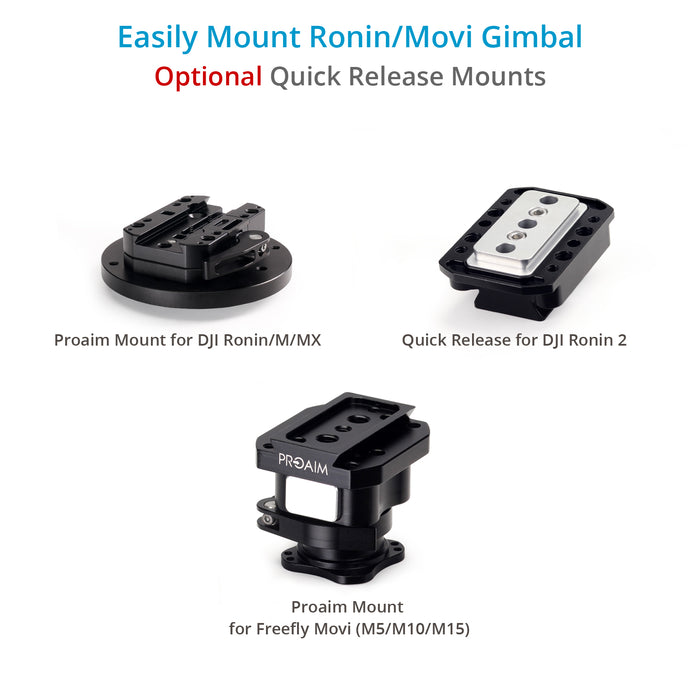

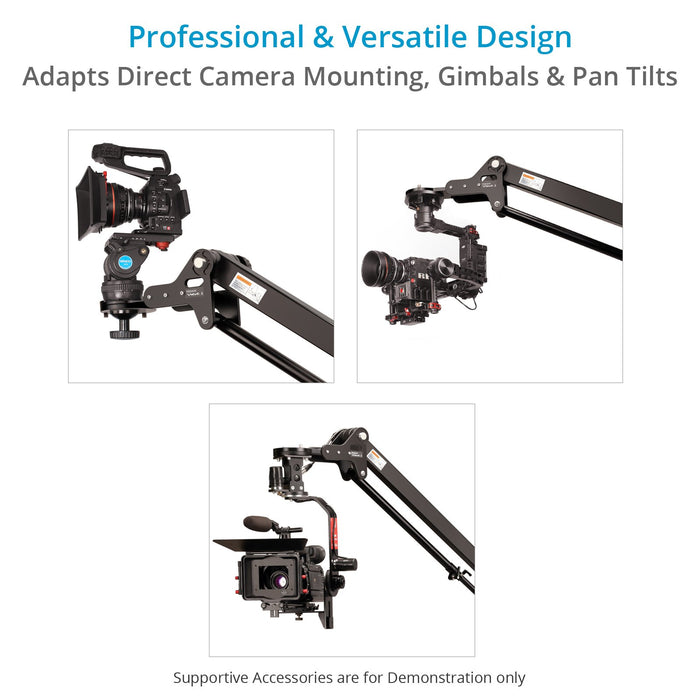

Mounting 3-Axis Gimbals is Possible!

Proaim Mount For DJI Ronin/M/MX (Optional)

IMAGE GALLERY

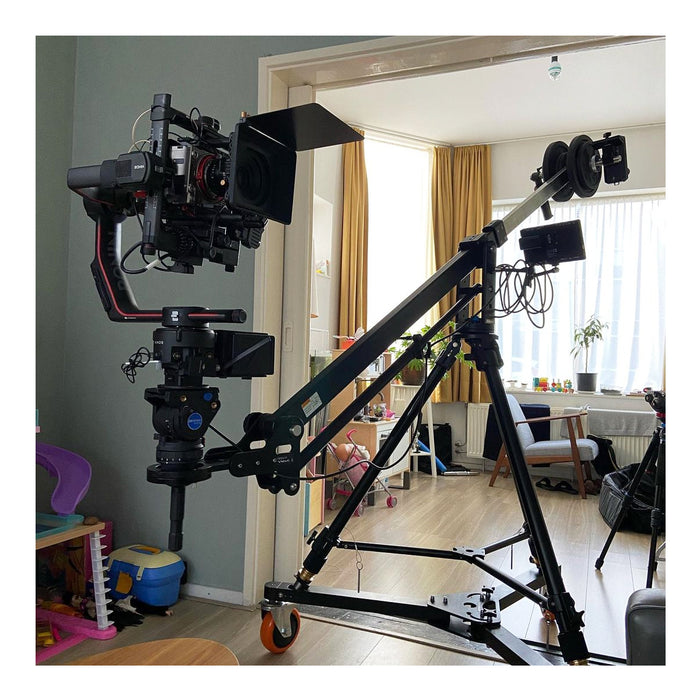

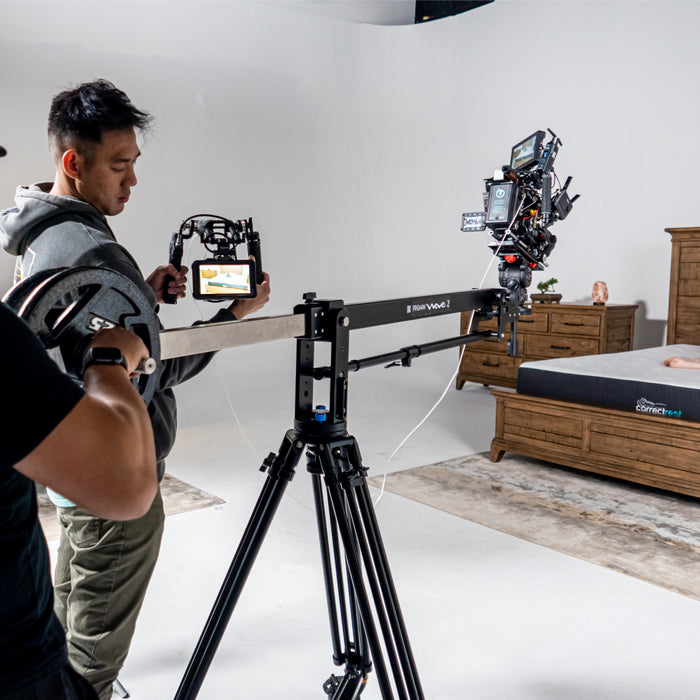

Think of Possibilities… Think of 7' Wave-2 Video Jib Crane

Delivers dramatic angle shots for adding high impact in your productions

CAMERA JIB ARM

- Load Capacity : 25kg/55lb.
- Tripod mount :100mm diameter
- Camera Mount Bowl :100mm and 75mm head (with ring )
- Construction: Robust Aluminum & Stainless Steel
- Pan Radius :360 Degrees
- Jib Pan Lock: Yes (via pan friction knobs on U-Hub)
- Jib Tilt Lock: No
- Camera Plate Tilt Lock: Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

100MM BOWL TRIPOD STAND

- Max length of tripod - 60 inch
- Minimum length of tripod - 34 inch
- Collapsible height - 36 inch
- Tripod tubes made of Aluminum
- Diameter of tripod tubes - 20mm and 14mm
- Load capacity – 80kgs /176lbs
-Tripod Weight -6.50 kg

SPECIFICATIONS OF SPREADER

- Payload upto: 400kg / 880lb
- Spreader height: 50mm/2inch
- Build up radius Minimum: 41 - 66cm / 16 - 26inch
- Compatible with All Tripods with Twin Spiked Feet
- Product weight (without packing): 2.47kg / 5.44lb

PORTABLE DOLLY

- Weighing capacity-500kg.
- Weight of Product -10.7kg/23.5lb
- Hi-grade Aluminum tripod dolly for durability.
- Quality design and construction.

-  Proaim 7’ Wave-2 Video Crane Jib
-  Proaim CST-100mm Bowl Tripod stand with Aluminum Spreader (CST-100-01)
-  Proaim Portable Dolly (P-PRT-D)
-  75mm Bowl adapter

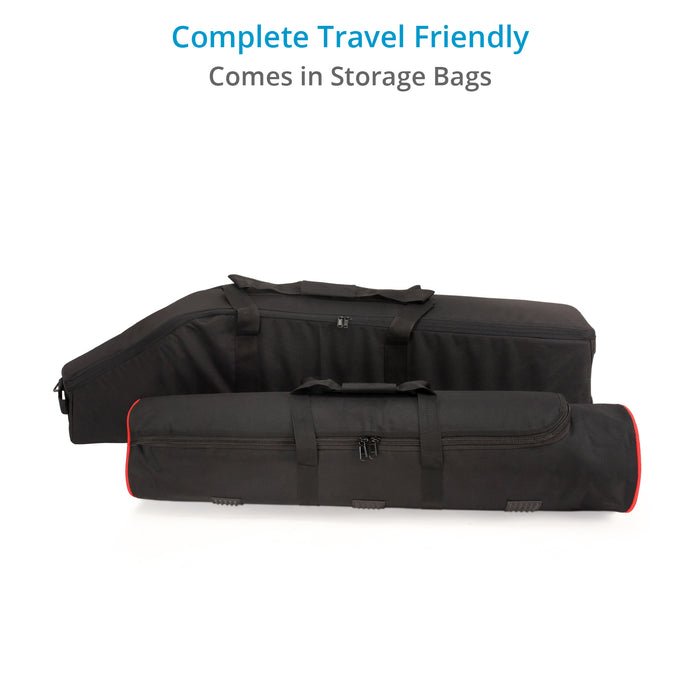

-  Storage Bag
