Proaim18ft Jib crane package is designed for professional filmmakers and videographers to add high impact in their video productions.. Hi-quality build rectangular re-enforced ribbed sections jib arm with intersecting joints make it robust and durable for lifelong. This film equipment also includes a heavy duty tripod that strongly holds the camera crane with stability.
Full 360-degree pan tilt head with joystick controller makes you to capture flawless shots. Additional LCD mounting arm helps to create unrestricted dynamic shots.
"WHAT YOU SEE IS WHAT YOU GET"
Exclusive of Weights
- High quality camera crane perfect for any demanding angle
- 5 section ribbed Camera Jib Arm for additional strength

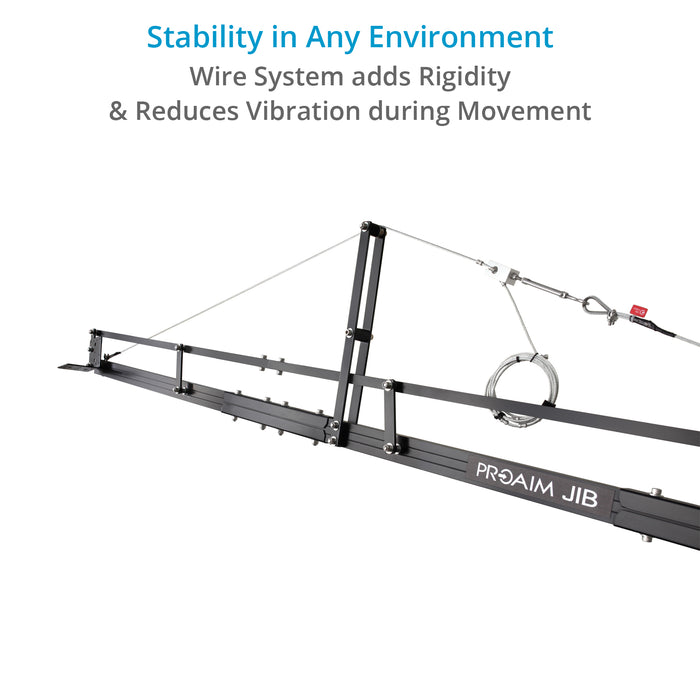

- Fully adjustable metal wire system for superior stability
- Tilting movements can be achieved with the control handle
- Uses home style exercise weights with a one inch mounting hole
- Fixed camera angle when controlling handle 'pin locked'
- Breaks down into five easily transported sections
- 2 axis motorized Head with 12V high torque motors.
- 360 degree panning and tilting to capture numerous angles.
- Consistent run speed even at slowest setting
- Stable, Non slip feet Tripod stand.
- Portable and easy to carry.
- 100% Satisfaction Guarantee.
Video is for demonstration only
Actual Product may vary due to Product Improvements
HIGH CAPACITY CAMERA BASE PLATFORM

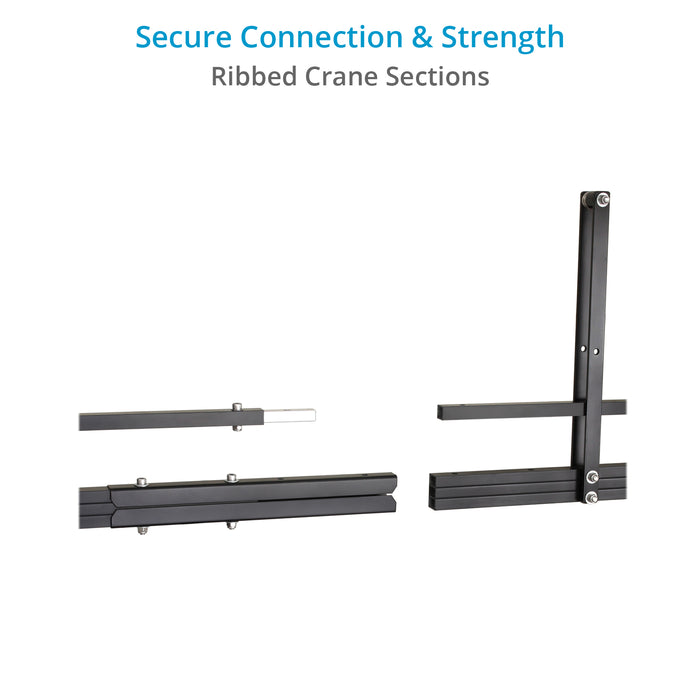

RIBBED SECTION CAMERA CRANE ARM BODY FOR HIGH STRENGTH
CENTRAL FORK WITH THRUST ROLLER BEARINGS TO HOUSE
LOCKING PINS FOR STABLE OR MOVING SHOTS
CABLES AND COUPLINGS
LCD MOUNTING PROVISION
WEIGHT - CLOSERS (INCLUDED)
MULTI ANGLE SHOTS

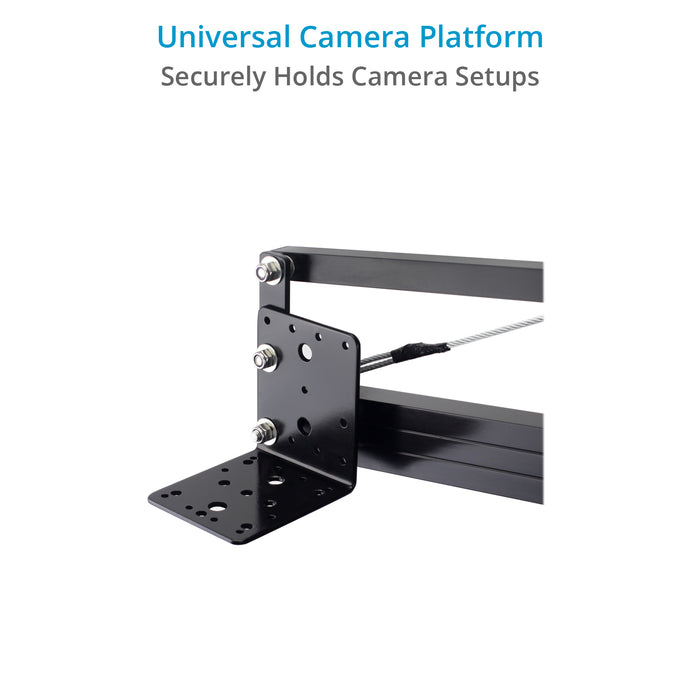

The camera base allows direct mounting of camera.
The Handle Bar allows easy tilts for multi- dimensional shots.
PROAIM JR. PAN TILT HEAD
Uniquely designed for DV, HDV and broadcast cameras weighing upto 5kg /11 lbs or less. Our Motorized Proaim Junior Pan Tilt head offers 360 degree endless panning and tilting movements with reversal points.
- Runs on 12V DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
- To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box.
- The Joystick control system includes a 7.5 mt long operating cable and AC adapter.
- Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.

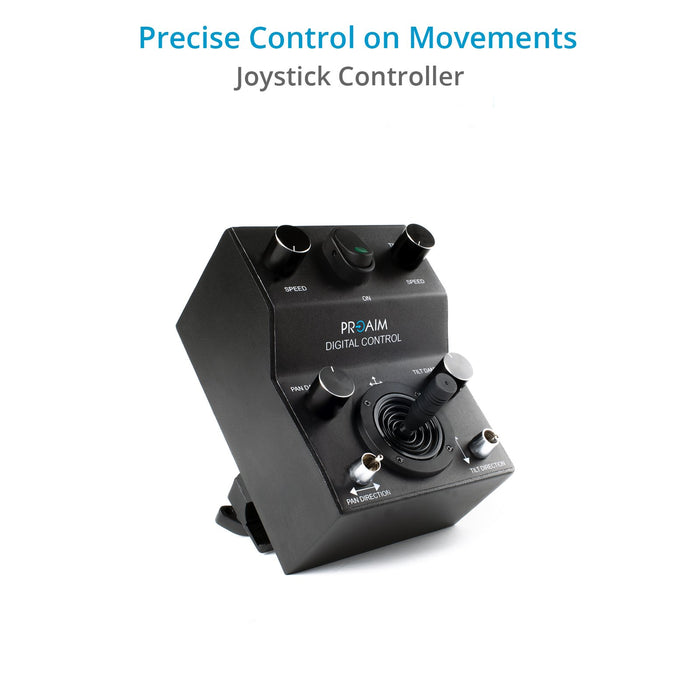

Smooth, accurate, proportional joystick control for outstanding footages
SUPERB PROPORTIONAL CONTROL
-Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive.
- Small movement – less speed.
- More movement – more speed.
HEAVY DUTY STAND
The Heavy duty Jib stand is constructed to carry heaviest of loads with an ease. The Sturdy base ensures strong connection between the camera crane and tripod stand, extra solid knobs for secure locking. The high strength stand acts as a supporter for all time stable shots.
COMPLIMENTARY TOOLS AND TOOL POUCH/WRAP
This tool / accessory roll pouch provides Rapid Access to Various Tools such as Allen Keys or wrenches. This premium quality tool roll has 10 Various Pockets to neatly organize a variety of hand tools so you can work quickly and efficiently.
FREE PROAIM LANC ZOOM CONTROLLER (P-ZC-3DV)
The Proaim Zoom Control for DV Cameras is a universal controller for LANC and Panasonic Mini DV or HDV cameras. It works only with most Sony & Canon cameras with a 2.5mm mini-jack LANC input and Panasonic models with a 2.5mm mini-jack Cam Remote input.
Smooth effortless motions to capture amazing shots
The Supportive accessories are for demonstration purpose only.
|18FT RIBBED JIB CRANE SPECIFICATIONS|
Stress Cable made of metal with adjusting Steel hook
Length : 355mm
Dia : 25mm
The 18 jib arm itself balances at about 25kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 4and you will know how much weight to buy.
14ft arm balances at about 11kg- Multiply the weight, of the additional items you will put on the end of the arm, by 2 & add the weights accordingly.
12ft arm balances at about 4kg - Multiply the weight, of the additional items you will put on the end of arm, by 2 & add the weights accordingly.
CAMERA JIB STAND
- Made of Powder coted mild steel
- Base spread - 32"- 48"
- Height adjustment - 44"- 80"
- Completely collapsed height - 46"
- Outer Dia of top part of Stand - 50mm
- Makes the camera jib arm stable & solid as a rock
- Safety Pin for Secure Pole
- Weight capacity of the stand is 200lbs (90kg)
|PAN TILT HEAD - SPECIFICATIONS|
|up to 5kg / 11lb|
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
2- Brass Small Pan Gear (Dia-22mm)
- Proaim 18ft Camera Jib Arm (P-18)
- Jib Stand (P-JS)
- Proaim Jr. Pan Tilt Head with Joystick Box (PT-JR)
- LCD Monitor Arm
- Power Pack (P-PP-Y)
- FREE Proaim Lanc Zoom Controller (P-ZC-3DV)
- FREE Tools and Tool Pouch/Wrap

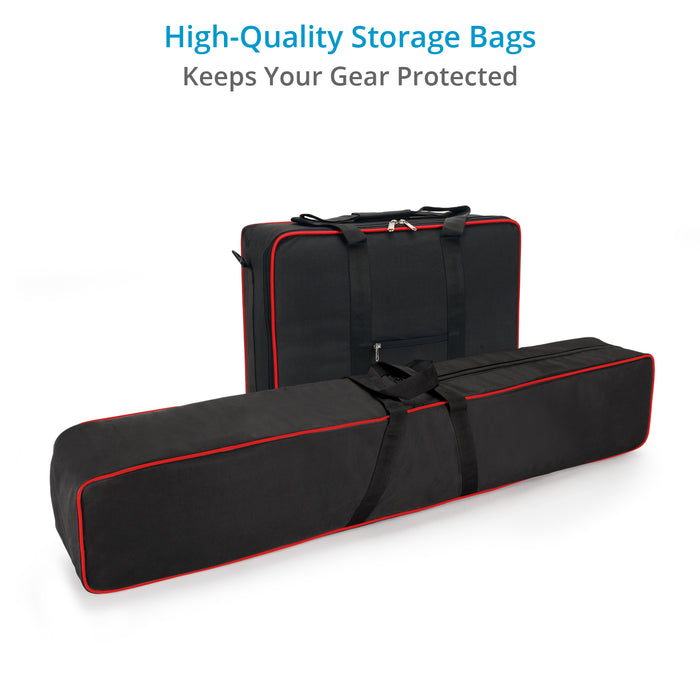

- FREE Storage Bags
Q&AAsk a Question
would this product work without having to purchase the pan tilt and 3 axis gimbal?
Yes, the Proaim 18ft Jib can also work perfectly without the Pan Tilt Head and 3-axis Head. You can accommodate small DSLR/DSLM cameras directly on the camera mount top plate of the Proaim18ft Jib.
Can the motors run on 18V DC or should I step down out batteries to 12V?
You can use max battery power of 12V.
What is the wiring information for the 4 Pin XLR connector
The 4-pin XLR connector is used, in which the 4th number pin is used for DC positive, the 1st number for DC negative, and the 2nd & 3rd numbers remain unused
Is this DMX controllable?
No, there is no connection of DMX with the Proaim Jr. pan tilt head.
What are the dimensions of PT-JR
"Here are the dimensions Proaim Jr. Pan Tilt Head PT-JR: https://prnt.sc/fM_LFwh0wXvt "
