01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.
Proaim 14ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.
USER-FRIENDLY & AFFORDABLE JIB FOR INDOOR/OUTDOOR USE
High Build Quality. Simple yet Powerful.
02.
EXPERTLY CRAFTED JIB

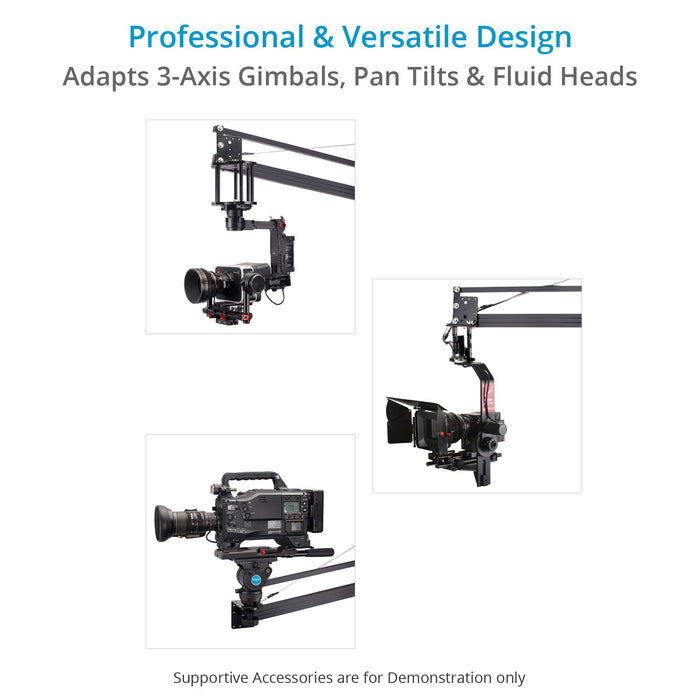

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment.
Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle.
Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements.
Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.
MOST AFFORDABLE JIB SOLUTION
For rigs under 8kg / 17.6lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 14ft Jib eliminates that concern by providing an excellent jib solution at an economical price.
04.

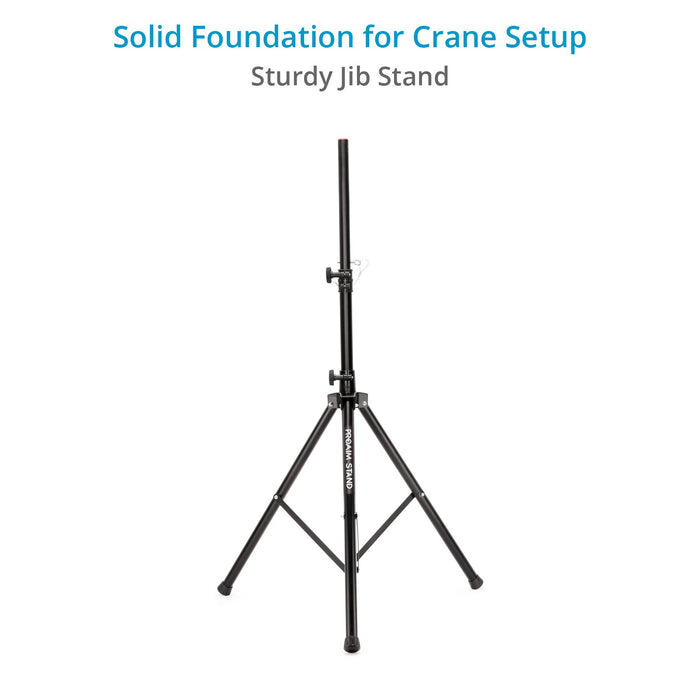

SOLID FOUNDATION FOR THE JIB
This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide ideal support needed to take the perfect shots.
The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.
05.

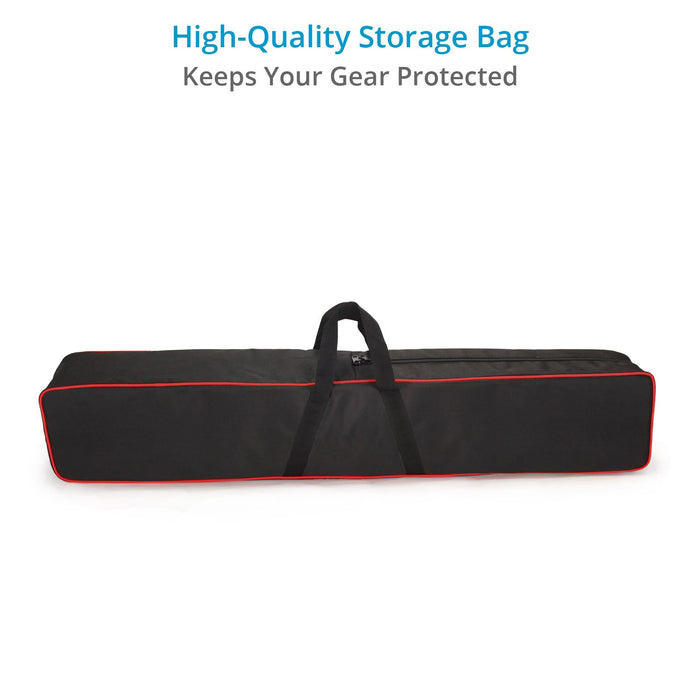

SIMPLIFIED TRANSPORT
The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
SPECIFICATIONS
14' JIB
Construction
Jib Arm: High-grade CNC Aluminum
Cable System: Stainless Steel
Weight Holder Rod: Steel
Weight Closures: Steel
Load Capacity
up to 8kg / 17.6lb

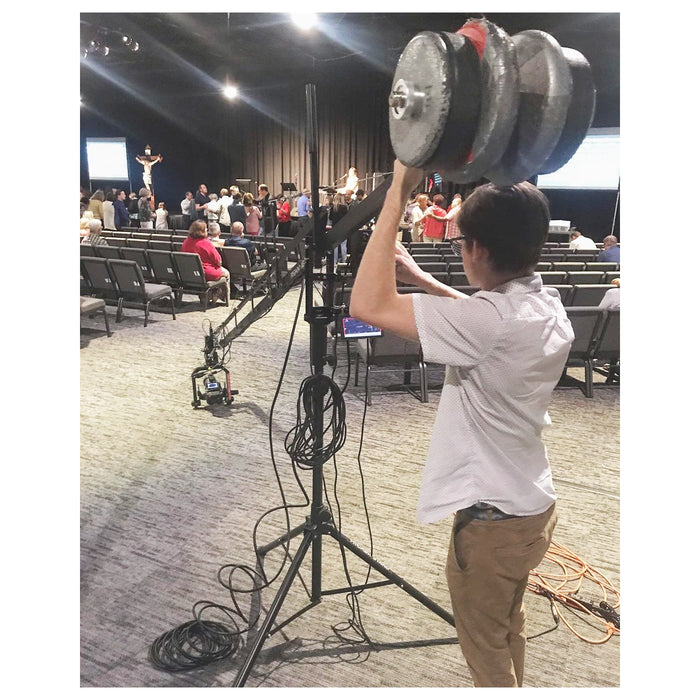

Balancing
The jib has a varying weight ratio depending on the length you have chosen.
The 14 jib arm itself balances at about11kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.
Buy a few extras in case you add other accessories.
Variable Lengths
14ft & 10ft
Jib Length
Height Range from ground level: 15ft. when stand height adjusted at 5ft
Length from tripod to Camera Mount: 10.3ft
Jib Arm
Shape: Rectangle
No. of Sections: 4
Length: 3.5' each
Jib Section Jointers: Silver Aluminum
Tilt Lock
No
Pan Lock
No
Camera Platform
Camera Mount Plate: Rectangle (10.5 x 9cm)
Levelling: By Stress Cable (with Adjustable Steel Hook)
Camera Platform Tilt
up to 270 degree
Weight Holder Rod
Length: 355mm
Diameter: 25mm
Weight Closures: 2 pieces
LCD Mounting
Yes
Weight
16 kg / 35 lb
JIB STAND
Construction
High-grade Steel, Powder-coated
Load Capacity
up to 90 kg / 198 lb
Length
Maximum: 80"
Minimum: 44"
Collapsible
46"

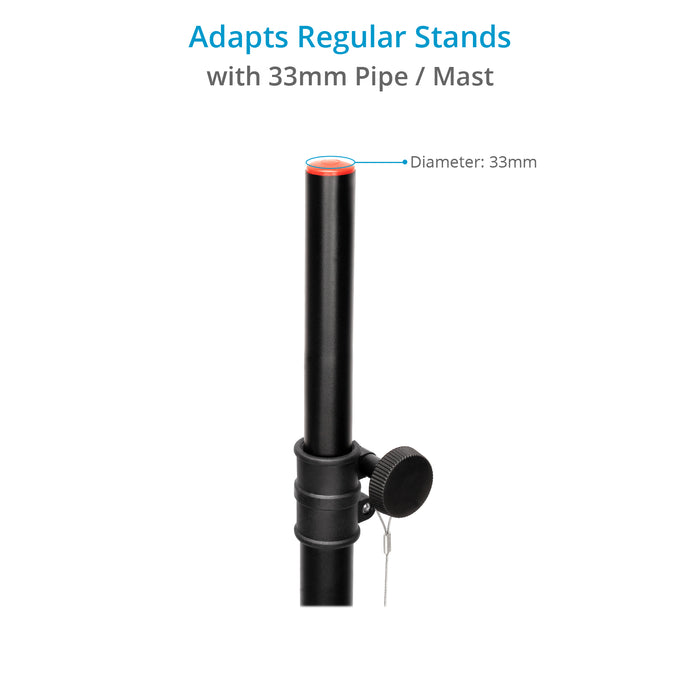

Diameter of Stand Tubes
33mm
Base spread
32"- 48"
Safety Pin
Yes
Weight
4.5kg / 10lb
IN THE BOX
Proaim 14ft Jib Arm (P-14)
Centre Post
Weight Shank with Closers
Weight Closers
Jib Stand (P-JS)
LCD Mounting Arm
Storage Bag
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
What is the thickness of the wall.
The thickness of the wall of the Proaim 14ft Camera Crane Jib Arm is 2mm.
This is a great product, well built and sturdy. I have attached a motorized head and added a Lilly Put Monitor that has turned this Jib into a fantastic product. My students really enjoy using it.
I bought this product to complete a movie�s project from movofilms. I really like how they use their own photos. The item is looks like the pictures and description on the website. The quality is very good and professional with cheap prices. Also its lightweight and easily transportable as described in the ad. This is an important feature to appreciate the quality. The shipment was very fast and I received the right item. I receveid an e-mail with the confirmation and the tracking number. I higly recommend this store to anyone who works in show business.
Easy to transport and set up. The instructions were clear on both set up and tear down, and it fits neatly into a bag. The counter balance was my biggest concern, since I have had a terrible jib that could not support my camera before. This one worked great, and I even bumped it a few times to see if it would falter. Overall, works just like it says, easy transport, easy assembly, perfect for what we needed on this set.
