Flycam Galaxy Arm & Vest for Handheld Camera Stabilizers

for Flycam HD-5000/HD-3000/Redking Stabilizers

Original price CAD 532.00 - Original price CAD 532.00
Original price
CAD 532.00
CAD 532.00 - CAD 532.00
Current price CAD 532.00
SKU : GLXY-AV

Flycam Galaxy Arm & Vest for Handheld Camera Stabilizers

01.

NATURALLY SMOOTH SHOTS WITH THE GALAXY ARM

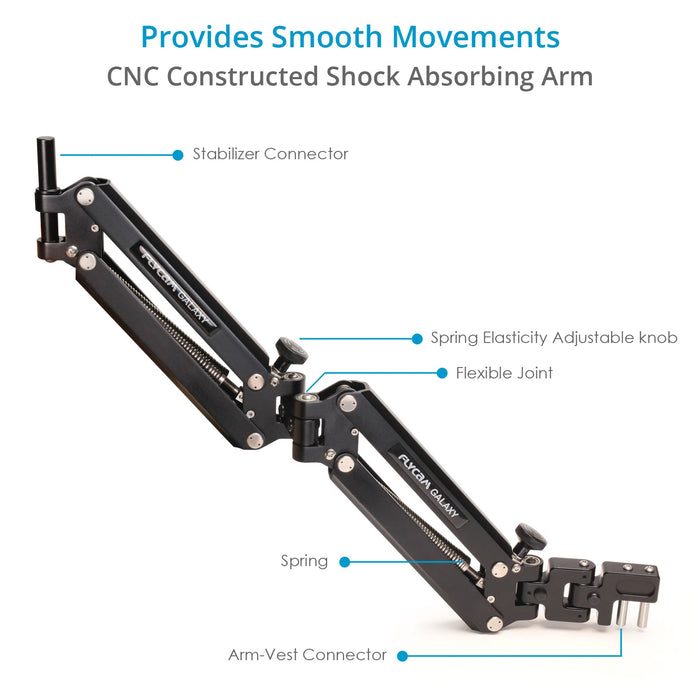

The Galaxy Arm has been designed for Optimized Performance throughout its lifting range. The Coaxial Stainless-Steel Springs and high-quality bearings every single joint in the arm provide for an Ultra Smooth shot while you follow the subject. The arm absorbs all jerks, bumps and shakes on even the roughest terrains while you walk or even run. The Galaxy Arm has Soft Bumpers at each end of travel so that the arm can be boomed right to its limits without shot-disturbing clunks.

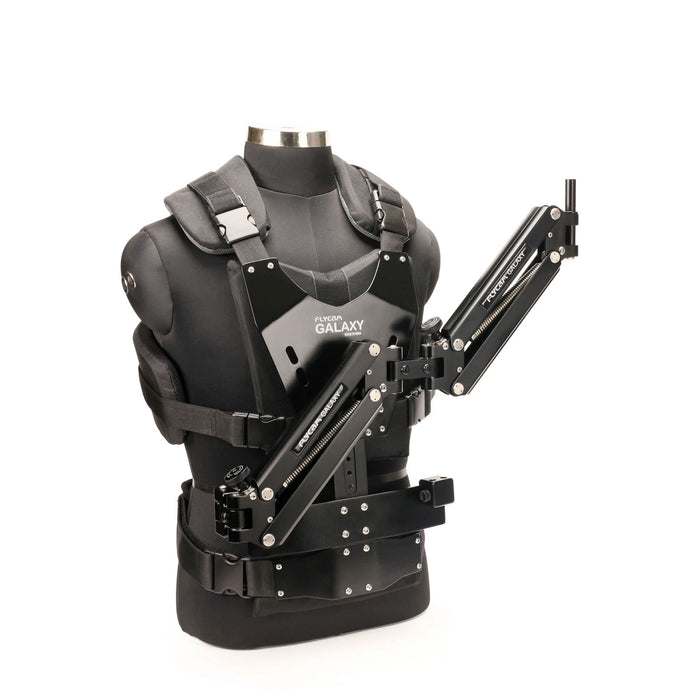

Flycam Galaxy Steadycam Arm & Steadycam Vest
Flycam Galaxy Steadycam Arm & Steadycam Vest

02.

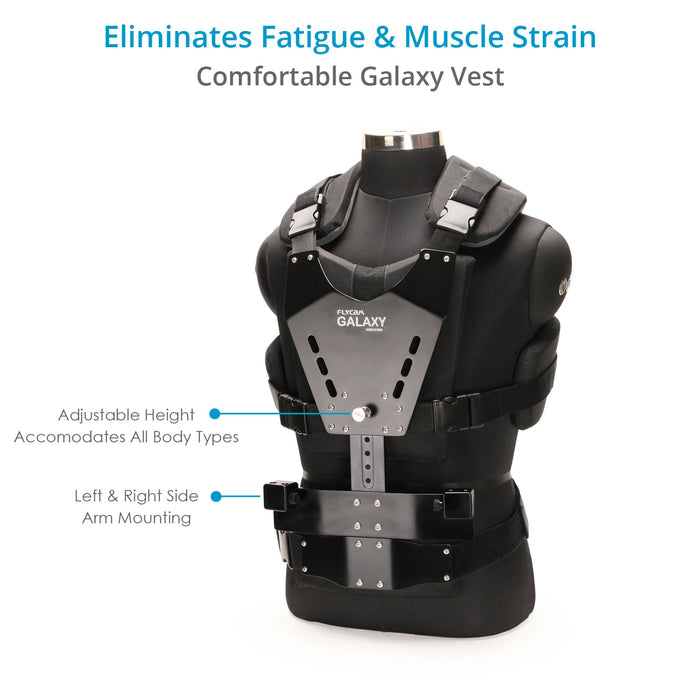

THE MOST COMFORTABLE EXPERIENCE WITH THE GALAXY VEST
While the Galaxy Arm absorbs all shocks and bumps while you move, the Galaxy Vest works to take the load of the stabilizer off your hands and distributes it across your body preventing arm and shoulder fatigue. The vest is made up of breathable materials and has a double padding of soft high-quality foam for an extremely comfortable experience enabling you to shoot for longer duration. The Vest fits snugly on almost all body types by simply adjusting the straps on the Vest.

03.

USER FRIENDLY DESIGN FOR EASY OPERATION
While designing the Galaxy Arm, our main focus was to make the Arm one of the most User-Friendly arm available today. The Arm consists of Spring Tension Adjustment knobs to adjust the elasticity of the springs and precisely calibrate it according to different setups you might want to use with the arm. Another feature of the arm that makes it unique is the option to easily interchange the arm from Right Hand Operation to Left Hand Operation.

Flycam Galaxy Steadycam Arm & Steadycam Vest

IN-ACTION VIDEOS

ARM SPECIFICATIONS

Construction

  CNC Machined Aluminum

Stabilizer Post

  Supports 16mm diameter

Load Capacity

  Up to 10kg / 22lb

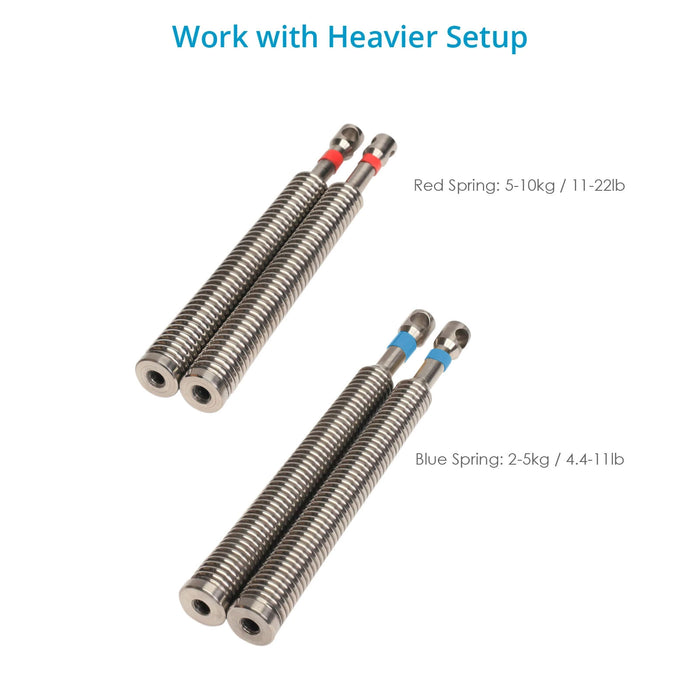

Blue Spring Payload

  2-5kg / 4.4-11lb

Red Spring Payload

  5-10kg / 11-22lb

Maximum Length

  18inch

Bag Dimensions

  LxWxH: 80 x 27 x 11.5cm

VEST SPECIFICATIONS

Material

  Aluminum and Breathable Synthetic Fabric

Chest and Waist Size

  Minimum Chest Size : 38 inches
  Minimum Waist Size : 28 inches
  Maximum Chest Size : 52 inches
  Maximum Waist Size : 60 inches

PRODUCT WEIGHT

Weight (without packing)

  6kg / 13.2lb

Weight (with packing)

  With Packing: 8.4kg / 18.5lb
  Volume Weight: 11.5kg / 25.3lb

IN THE BOX

  Flycam Galaxy Steadycam Arm
  Flycam Galaxy Steadycam Vest

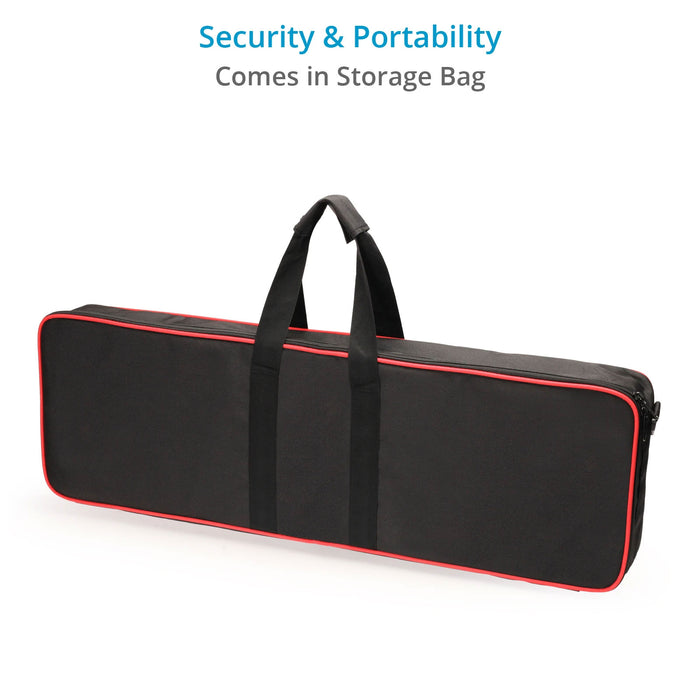

  Storage Case

FAQ

Q : What are the minimum and maximum chest and waist sizes the vest will fit ?

  Ans : The Vest will fit to the sizes as follows :
  Minimum Chest Size : 38 inches
  Minimum Waist Size : 28 inches

Maximum Chest Size : 52 inches
Maximum Waist Size : 60 inches

Q : Can I put larger cameras or just a dslr ?

Ans : Yes, you can put a variety of cameras as this arm and vest will perfectly work for total weight up to 10kg(21lbs). We provide two springs with the Galaxy Arm, Blue marked spring is for 1-5kg and the Red marked spring is for 5-10kgs. It does take considerable time and practice to learn but the vest and arm will help with fatigue and getting steady shots. The build quality is surprisingly good.

Q : Do the vest and arm help with stabilization?

Ans : Yes it does help, however the most important part of stabilization is first balancing the camtree initially. That would mean placing all items that will be used on the day of shooting (ie, Monitor, Battery, Camera, Lens, Wires, additional mounts, etc) for proper accuracy in the balancing process. It will take some time to correctly balance, but once you have the correct balance of the stabilizer, the arm and vest will be extremely helpful in the final stabilization.

Q : Will this work with a glidecam 4000 and hd series?

  Ans : Yes, it will perfectly work with your glidecam stabilizer.

Q : What is the shipping weight of this kit? it does not include table champ? thanks!

Ans : The shipping weight is around 23lbs or 11kg. It does not come with a table clamp..

Q : Does the Stabilizer comes with the vest ?

Ans : No, It comes with an Arm and Vest only. The Camtree stabilizer is ‘NOT INCLUDED in this kit.

Q : What is the diameter of the main shaft?

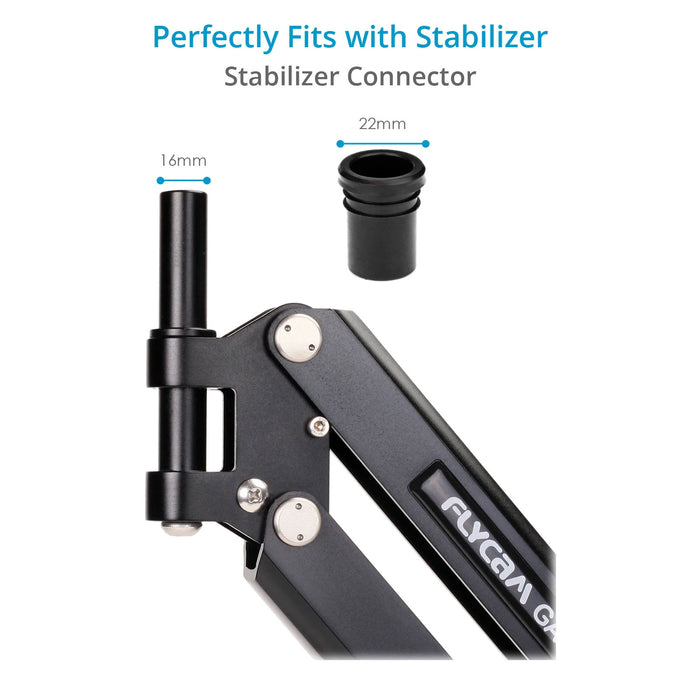

Ans : The main shaft (spool adapter) has the diameter of 16mm. We provide two bushes to add onto it to make it easily adaptable to the stabilizers with the handle’s inner diameter of 19mm and 22mm.

Q : Does the vest have a carrying case too?

  Ans : No, The vest doesn’t come in a carry case.

Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?

  Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

Q: What is the warranty?

Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • Can i put larger cameras or just a dslr ?

    Yes, you can put a variety of cameras as this arm and vest will perfectly work for total weight up to 10kg(21lbs). We provide two springs with the Galaxy Arm, Blue marked spring is for 1-5kg and the Red marked spring is for 5-10kgs. It does take considerable time and practice to learn but the vest and arm will help with fatigue and getting steady shots. The build quality is surprisingly good.

  • Will this work with a glidecam 4000 and hd series?

    Yes, it will perfectly work with your glidecam stabilizer.

  • What is the shipping weight of this kit? it does not include table champ? thanks!

    The shipping weight is around 23lbs or 11kg. It does not come with a table clamp..

  • What are the minimum and maximum chest and waist sizes the vest will fit ?

    The Vest will fit to the sizes as follows :
    Minimum Chest Size : 38 inches
    Minimum Waist Size : 28 inches
    Maximum Chest Size : 52 inches
    Maximum Waist Size : 60 inches

  • Do the vest and arm help with stabilization?

    Yes it does help, however the most important part of stabilization is first balancing the camtree initially. That would mean placing all items that will be used on the day of shooting (ie, Monitor, Battery, Camera, Lens, Wires, additional mounts, etc) for proper accuracy in the balancing process. It will take some time to correctly balance, but once you have the correct balance of the stabilizer, the arm and vest will be extremely helpful in the final stabilization.

  • Does the Stabilizer comes with the vest ?

    No, It comes with an Arm and Vest only. The Camtree stabilizer is 'NOT INCLUDED' in this kit.

  • What is the diameter of the main shaft?

    The main shaft (spool adapter) has the diameter of 16mm. We provide two bushes to add onto it to make it easily adaptable to the stabilizers with the handle's inner diameter of 19mm and 22mm.

  • Does the vest have a carrying case too?

    No, The vest doesn't come in a carry case.

  • Is it returnable for a full refund if it doesn't meet my expectations upon delivery?

    Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

  • What is the warranty?

    We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.

  • Can I mount a firearm to this?

    We have not tested this with a firearm, but as long as it is under the 10kg weight limit it should be good to go.

  • I am looking for a way to connect my flycam galaxy vest to DJI Ronin RSC2 gimbal.

    You can attach the Flycam Galaxy arm and vest to DJI Ronin RSC2 gimbal with the help of Flycam Gimbal Adapter, below is the link for the same.

    Flycam Gimbal Adapter -- https://proaim.ca/products/flycam-arm-vest-gimbal-adapter"

  • I m looking at buying a flycam vest and arm with Stabilizer. I have a Crane3s gimbal and my camera is the bmpc 6kpro

    The Flycam Galaxy Arm & Vest will work with Crane3s with the help of the Flycam Arm Vest Gimbal Adapter FLCM-GA. Here is the Link for reference:
    https://www.proaim.ca/products/flycam-arm-vest-gimbal-adapter

  • How to change the springs on the arm of my Galaxy Vest

    Here is the video of how to change the springs of the Galaxy Arm and Vest:
    https://www.dropbox.com/s/mafojvgufjvyvuc/how-to-replace-spring-in-the-galaxy-arm.mp4?dl=0

  • Looking to adapt my flycam galaxy to add a steadimate-RS for my Ronin RS2 gimbal. The mount needs a 1/2in post instead of the 16mm. Do you have a replacement post that is 1/2in or an adapter to step the 16mm down to 1/2in?

    Currently we only have the 16mm post (minimum) for Flycam Galaxy Steadycam Arm & Steadycam Vest (GLXY-AV)

  • \"A question about your Flycam Galaxy Steadycam Arm & Steadycam Vest. Will I be able to connect my dji RS 3 Pro directly on FLCM-GA or FLCM-GAXS?\"


    Yes, DJI RS3 Gimbal can be directly mounted on Flycam Galaxy Arm & Vest either with the help of the Flycam Gimbal Adapter ( FLCM-GA) or can use Flycam G-Axis Stabilizer (FLCM-GAXS).

    There is 1/4"-20 Mounting thread present in the DJI RS 3 Pro which he can connect with the plate of FLCM-GA or FLCM-GAXS.

  • I have the older proaim 7000 arm vest and sled. Can I buy the light duty springs to reduce the weight capacity for a lighter camera? Next question: is the newer arm lighter? The old arm is very very heavy.

    No, we do not have light-duty springs for the proaim 7000 arm vest and sled.

    Yes, the Flycam Galaxy Steadycam Arm is lighter as compared to the proaim 7000 arm.
