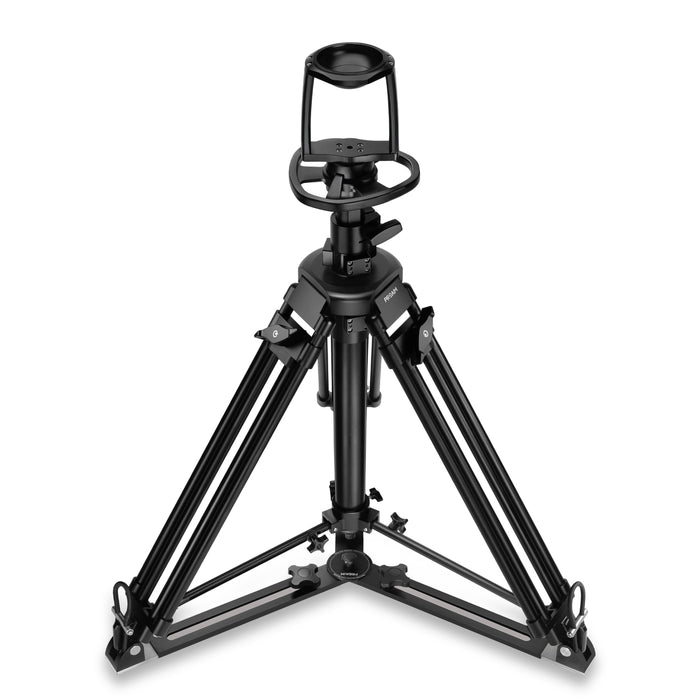

Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader

For Broadcast Studios, Live Productions & Film Sets | Payload: 8-15kg (17-33lb)

Original price CAD 1,170.00 - Original price CAD 1,170.00
Original price
CAD 1,170.00
CAD 1,170.00 - CAD 1,170.00
Current price CAD 1,170.00
SKU : TP-ACPS-01

Heavy-Duty Pneumatic Tripod for Professional Video Production

01.

PROFESSIONAL’S CHOICE OF STAND

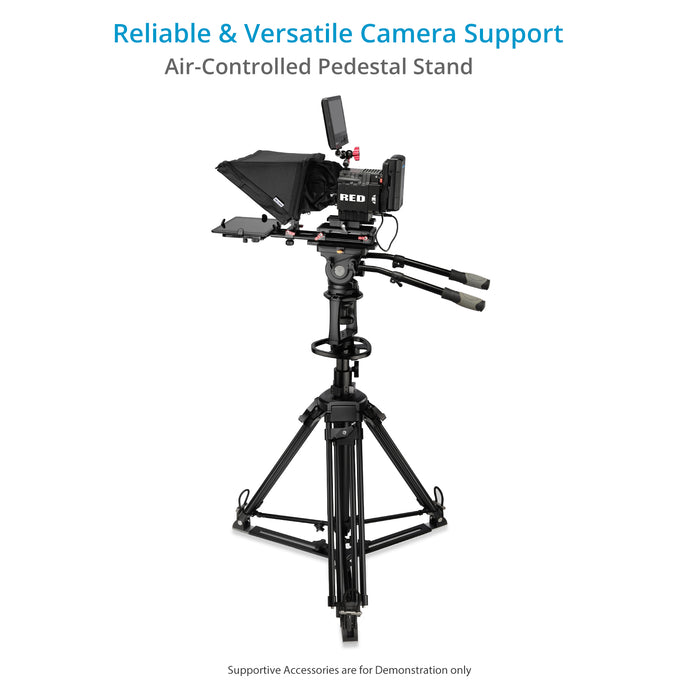

The Proaim Air-Controlled Pedestal Stand is a top-tier solution for professional videographers and broadcasters seeking an efficient, stable, and versatile camera support system. Its lightweight aluminum construction, pneumatic-assisted lift, and superior stability ensure precise, dynamic shots across various applications – from broadcast studios to live productions.

Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader
Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader

02.

HEAVY-DUTY PERFORMANCE

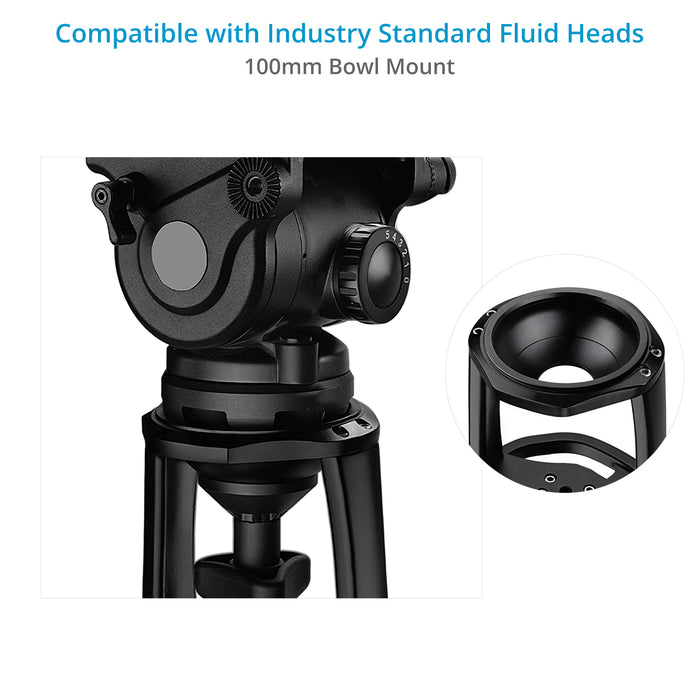

Designed to support 8kg to 15kg (17lb to 33lb), this aluminum-built pedestal stand is ideal for broadcast cameras, cinema rigs, and professional setups. The 100mm bowl mount ensures compatibility with industry-standard fluid heads for easy integration into your setup.

03.

SMOOTH PNEUMATIC LIFT
The pneumatic center column provides an 8” cushioned lift for easy, controlled height adjustments. The top ring acts as a handhold, offering a secure grip for the smooth raising and lowering of the pedestal.

Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader

04.

ADJUSTABLE & STURDY TRIPOD LEGS

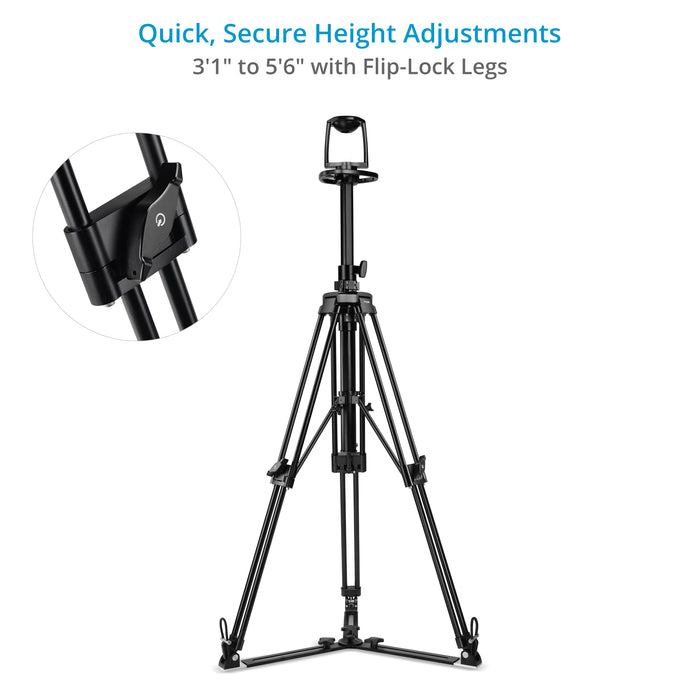

Built for stability and dynamic balance, the pedestal stand’s flip-lock legs allow quick height adjustments from 3’1” to 5’6”. The locking knobs keep everything secure, while the wide footprint diameter (35”–54”) offers extra support and balance.

05.

HEAVY-DUTY GROUND SPREADER
To complement the pedestal’s solid performance, the stand comes with a heavy-duty aluminum tripod ground spreader. This aluminum spreader features a 17.5”-27” radius range, providing superior balance. It collapses quickly for portability and integrates seamlessly with any tripod with twin spiked feet.

Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader

SPECIFICATIONS

Construction

  Aluminium

Load Capacity

  8 to 15kg (17 to 33lb)

Bowl Size

  100mm

Height Range

  Maximum: 5’6’’ and Minimum: 3'1”

Pedestal/Column Riser

  Total Travel /Height: 8”

Leg Lock

  Locking Knobs

Footprint Diameter

  35”-54”

Spreader

  Type- Ground
  Adjustable- Yes
  Radius Range- 17.5” - 27”
  Compatibility- Any Tripod with Twin Spiked Feet

Dimensions

Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader
Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader
Proaim 5.6ft Air-Controlled Pedestal Stand with 100mm Bowl Camera Mount & Ground Spreader

Product Weight (Without Packing)

  12.4kg / 27.34lb

Product Volumetirc Weight (Without Packing)

  23.5kg / 51.8lb

IN THE BOX

Proaim Air-Controller Pedestal Stand
Aluminium Spreader




  • Why choose an air-controlled pedestal over a standard tripod?

    It allows smooth vertical height changes during a shot without affecting framing or balance.

  • What is the usable height range?

    Adjustable from about 3’1” to 5’6”, depending on leg position.

  • How much vertical lift does the pneumatic column offer?

    Provides approximately 8 inches of smooth, cushioned lift.

  • Can a single operator adjust it comfortably?

    The top hand ring makes raising or lowering the pedestal easy for solo operators.

  • Will it work with professional broadcast fluid heads?

    The 100mm bowl supports most industry-standard broadcast and cinema fluid heads.
