Proaim Gimbal Brace Mount for DJI Ronin-S, Zhiyun Crane 2 & Steadycam Arm Vest

Original price CAD 239.00 - Original price CAD 239.00
Original price
CAD 239.00
CAD 239.00 - CAD 239.00
Current price CAD 239.00
SKU : P-GMBC-01

01.


Converts Your Gimbal Into Body Worn System

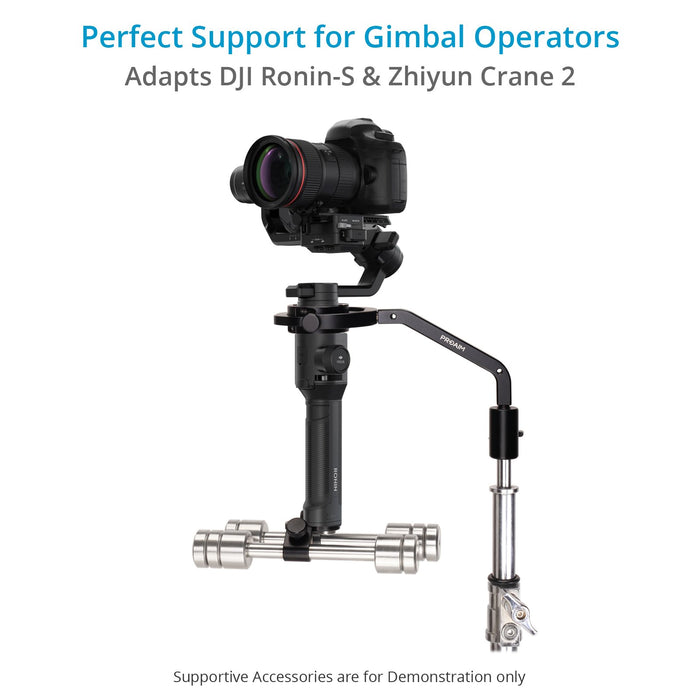

Proaim Gimbal-Brace gives more freedom to operators using handheld motorized Gimbals. It supports the DJI Ronin-S and Zhiyun-Tech Crane 2 gimbal stabilizers.

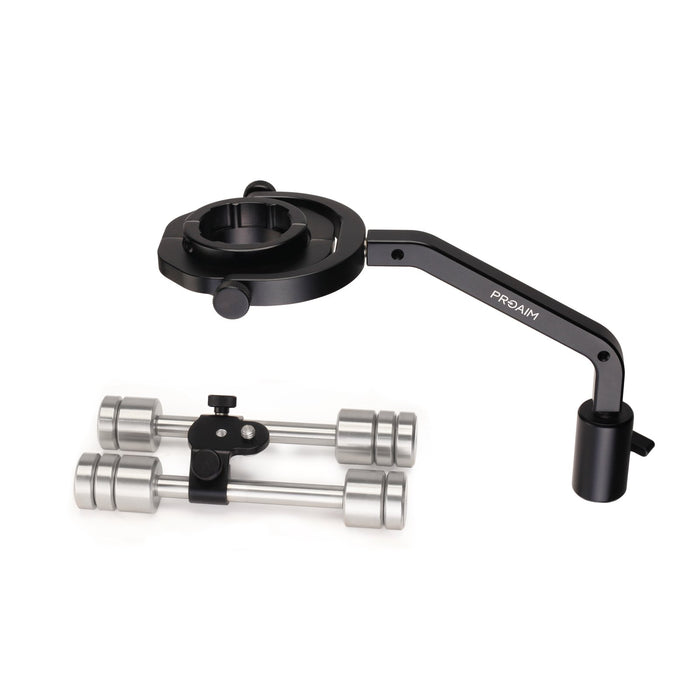

The Gimbal bracket and Weighted Base quickly transforms your single-handed gimbals into a body-worn system.

An optional Vest and a Stabilizer Arm with an ø16mm Pin are required to complete the system.

Proaim Gimbal Brace Mount for DJI Ronin-S, Zhiyun Crane 2 & Steadycam Arm Vest
Proaim Gimbal Brace Mount for DJI Ronin-S, Zhiyun Crane 2 & Steadycam Arm Vest

02.

Increases Operator’s Comfort

The gimbal collar secures the handheld gimbal post, allowing the gimbal to rest on the arm and vest for easier and steadier use.
The combined system takes all the weight off your hands and distributes it to your hips.
This allows comfortable gimbal operation for hours with minimal physical fatigue.

03.

Offers Smooth Shots

The Gimbal Brace allows you to efficiently perform smooth pans and a wide range of motion, while the optional arm eliminates vertical bounce by providing z-axis stabilization. It also allows for comfortable Low Mode Shooting.

Proaim Gimbal Brace Mount for DJI Ronin-S, Zhiyun Crane 2 & Steadycam Arm Vest
Proaim Gimbal Brace Mount for DJI Ronin-S, Zhiyun Crane 2 & Steadycam Arm Vest

04.

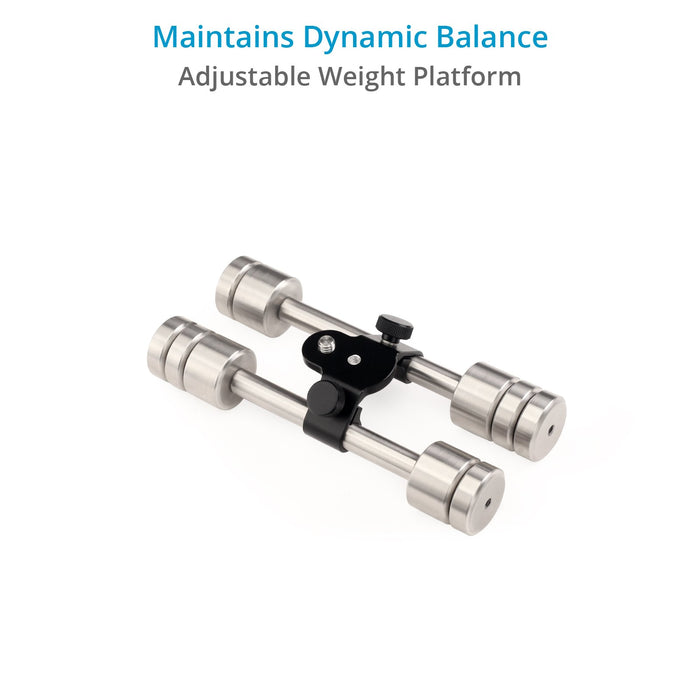

Easy to Balance

Adjustable Base with ten weight discs achieves perfect dynamic balance.
The weights can be added/removed as per the setup requirement.
It features 15mm LWS rods for easy mounting of the weights.

See how the Gimbal Brace Mount Works


Specifications

Construction

  Gimbal Bracket: High-grade CNC Aluminum
  Weights & Rods: Stainless Steel

Compatibility

  Gimbals: DJI Ronin-S and Zhiyun Crane 2
  Steadycam Arm Vest: Flycam Galaxy Arm Vest (GLXY-AV), Flycam Vista-II Arm Vest (VSTA-II-AV)

Balance Weights

  Number of Weights: 10
  Big Weights: 4
  Small Weights: 6
  Big Weights (each piece): 220 gram / 0.48 lb
  Small Weights (each piece): 110 gram / 0.24 lb
  Total Weight of Balance Weights: 1540 gram / 3.395 lb

Arm Mounting Dia

  ø 16mm Pin

Weight Rods Dia

  15mm

Accessory Mounting

  ¼”-20 Threads

Product Weight

  2.66 kg / 5.86 lb

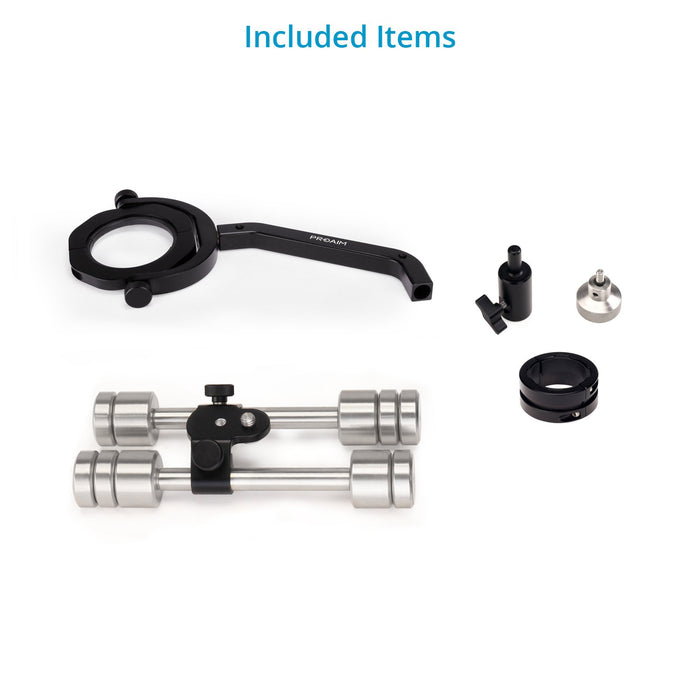

In the Box

  Proaim Gimbal-Brace
  Stabilizer Gimbal Collar
  1 x Rubber Spacer Set
  Weighted Base for Balancing
  12mm to 16mm converter adaptor

User Manual


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • Is this usable for the Ronin RS2?

    No.

  • "bonjour je voulais savoir si votre produit était compatible avec le Dji Ronin SC ? cordialement

    It's not compatible with Dji Ronin SC.
