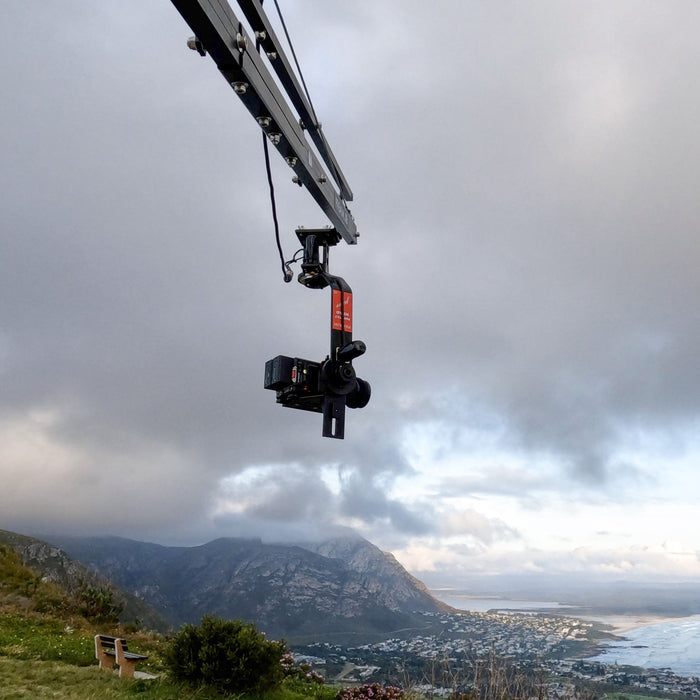

A remote head opening up possibilities for wide variety of shots!

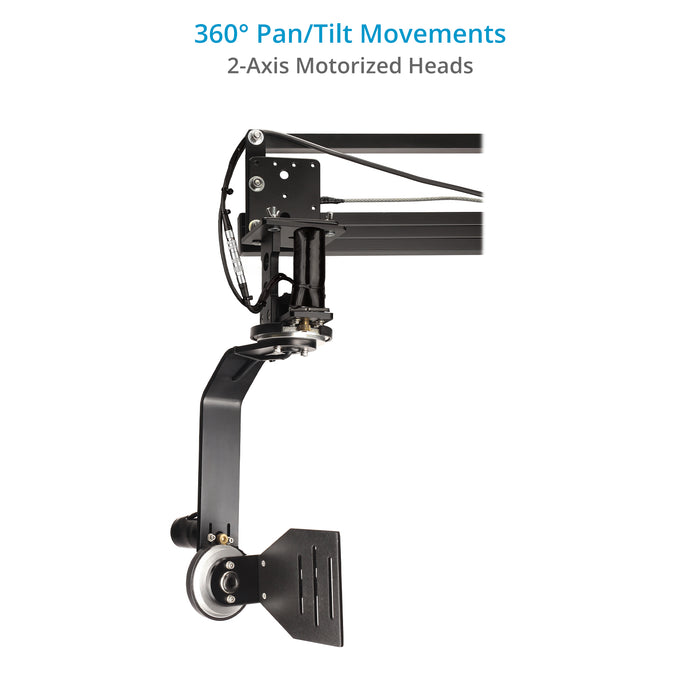

We all are well aware of the fact, that camera movement help setting the tone for the scene, build dramatic effects and simply add beauty to your shots. The combination of remote head and crane is highly helpful in achieving this goal. But if you directly mount the camera on the crane, it will restrict the movement of the camera and narrow the creative possibilities. The specially designed 2-Axis junior pan tilt head allows unrestricted 360° pan and tilt movements, giving you the freedom to take a wide variety of shots.
"WHAT YOU SEE IS WHAT YOU GET"
Technology That Lasts!

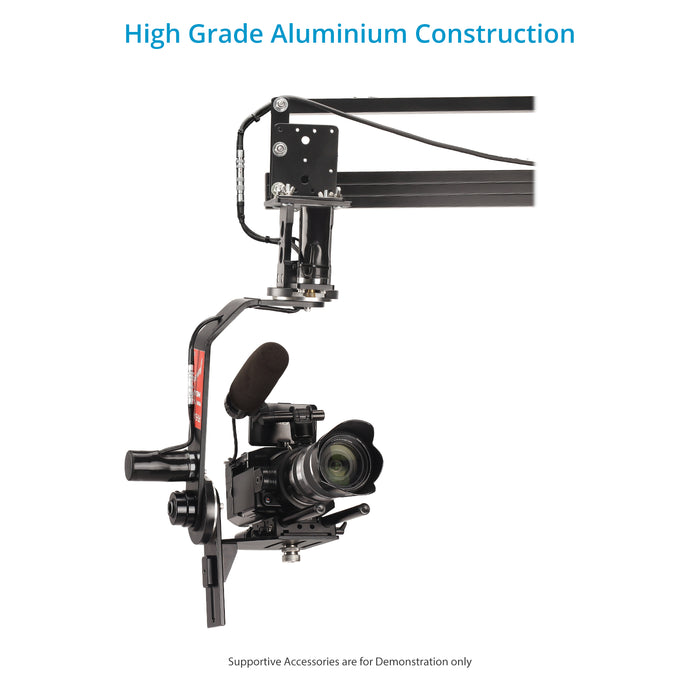

The technologically advanced junior pan tilt head is constructed from high-grade aluminum that lets you use it successfully for years to come. The pan & tilt movements are controlled by 12V joystick controller.

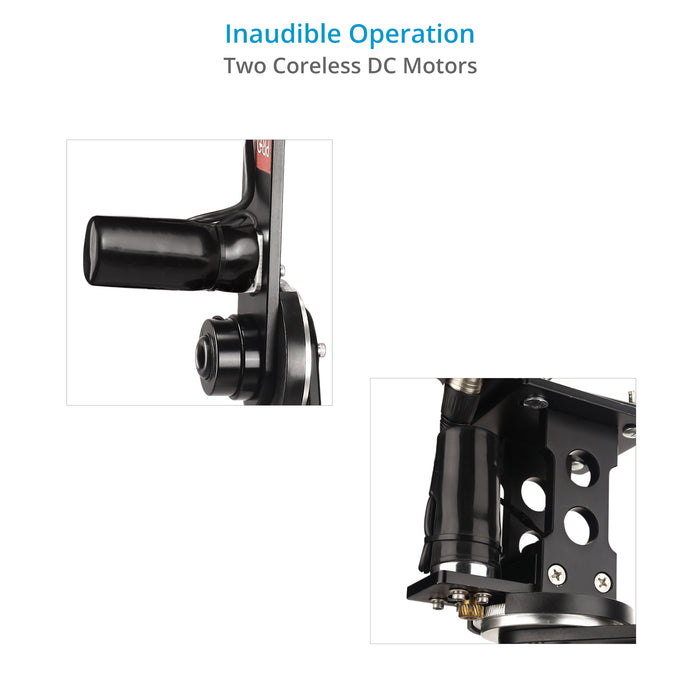

The pan-tilt head has two coreless high torque motors provide the payload capacity of 5kg/11 lb which is substantially higher than its counterparts. The high-quality coreless motors also provide the inaudible movements.
The head has a slip ring that doesn’t let the wires to tangle with each other enabling 360° unrestricted pan & tilt movements.
Minimum Wear And Tear

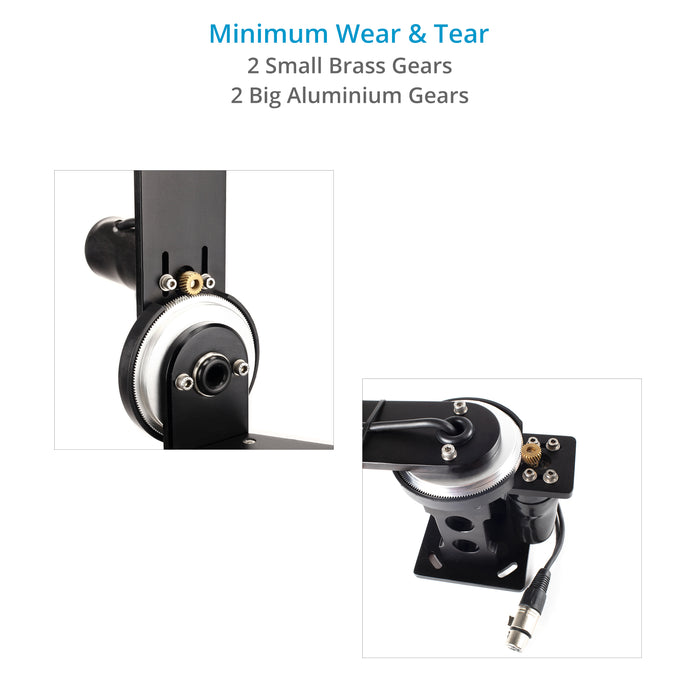

The high strength brass gears are engineered to withstand long hours of functions and have minimum wear and tear.

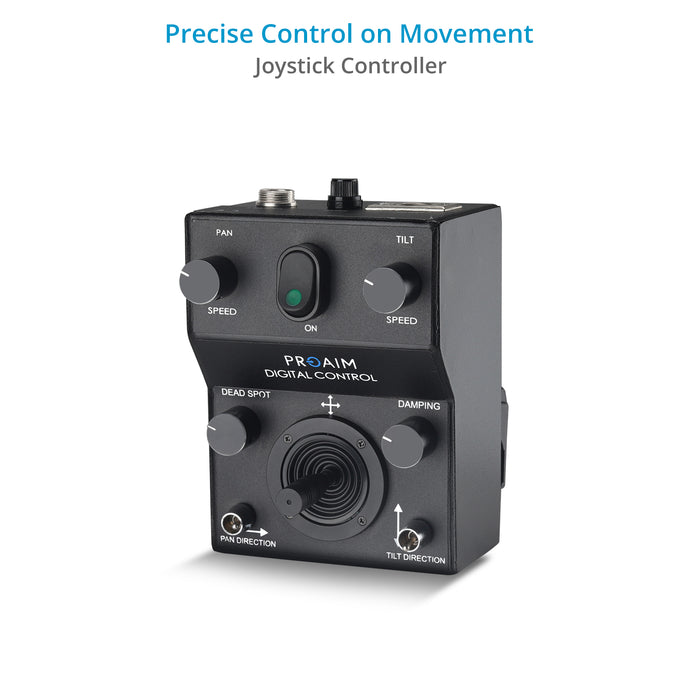

Functions of Joystick Controller
Adjusts the speed of pan & tilt based on the requirement of the shot.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Pan tilt Direction
You can reverse the panning & tilting direction as & when required.
The Supporting accessories are for demonstration purpose.
|Up to 5kg / 11lb|
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
2 Small Brass Gears (Dia- 13.5mm)

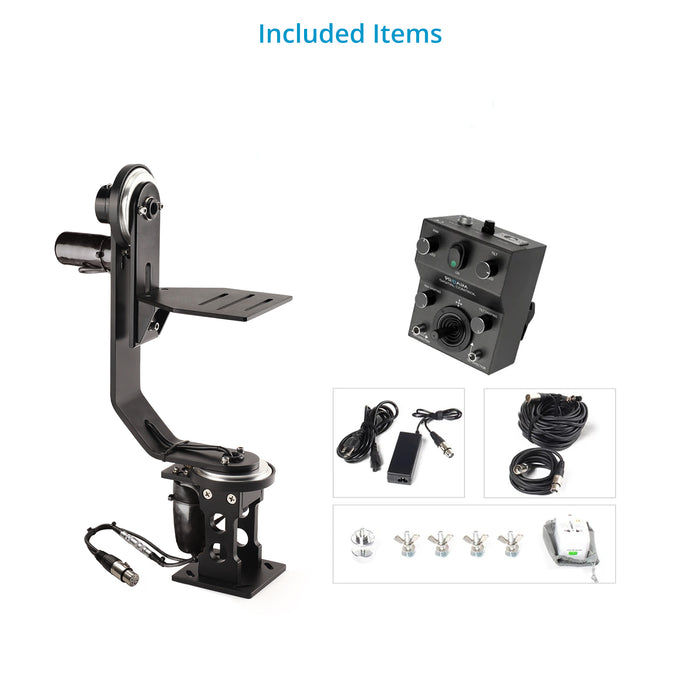

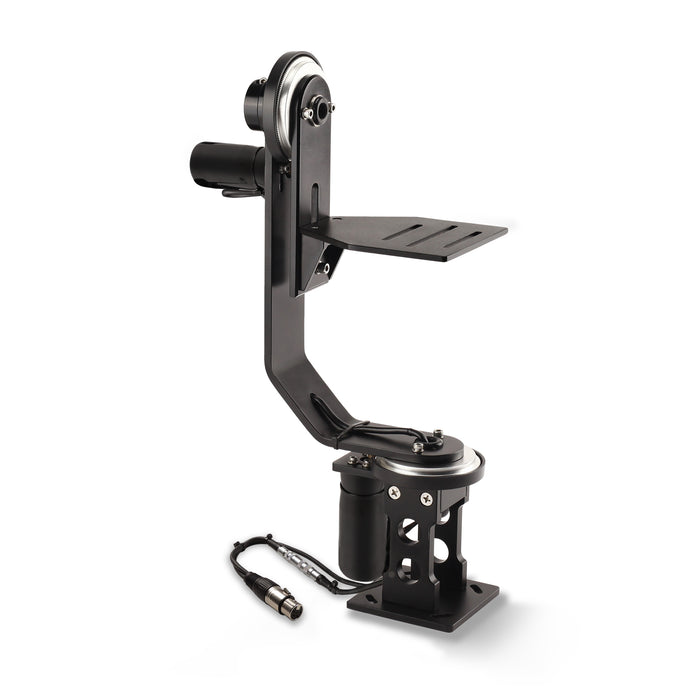

- Proaim Jr. Pan Tilt Camera Motorized Head
- Joystick Controller
- 12volt AC Adapter
- 15meter / 49foot long Control Cable
- 3 Meter long 4pinXLR cable (for using 12VDC Battery Packs)
- Universal Adapter
- Carrying Case with Custom-Fit Packing
Q: Which cameras it is compatible with?
Ans: The Proaim JR. pan tilt head will fit to cameras weighing upto 6kg.
Q: Will it work with blackmagic pocket camera?
Ans: Yes, it will work with blackmagic pocket camera as it is compatible with cameras weighing upto 6kg.
Q: How long is the distance it will work with?
Ans: It can be operated upto 100ft long distance.
Q: Will it fit to Kessler Pocket Jib?
Ans: The crane mounting plate should be square in shape with four mounting holes at corners in order to be compatible with this head.
Q: Will it fit to EZ FX Jib crane?
Ans: This pan tilt will not be compatible with EZ FX Jib crane as the mounting of pan tilt and jib are different.
Q: Will it mount on truss?
Ans: Yes, this pan tilt head can be mounted on a truss.
Q: How many circle it can complete?
Ans: This pan tilt head can take two complete 360 degree circles.
Q: What is the weight of the head itself?
Ans: It is approx. 2.7kg
Q: What kind of battery I need to operate it?
Ans: You need 12V battery to operate this head. You can buy our 12v power pack for it :
Proaim Power Pack
Q: Do you provide cable for the battery?
Ans: Yes, we provide 3 meter long cable for using with the battery.
Q: What is the gear material?
Ans: Small gears are made of brass and bigger gears are silver.
Q: Does the joystick come with handle to clamp on jib crane?
Ans: Yes, the joystick control box comes with a handle to clamp it on a jib crane.
Q: Which motors are used in this head?
Ans: High Torque DC Motors of 12V are used in this head.
Q: Is the camera plate height adjustable?
Ans: Yes, you can adjust the height of camera plate.
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.
Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
