Proaim Overhead 12ft Modular Studio Rig for Camera / Gimbal / Light Setups

Name: Proaim Overhead 12ft Modular Studio Rig for Camera / Gimbal / Light Setups
Brand: Proaim.ca
SKU: P-OHLR-01
Price: 401.00 CAD
Availability: InStock

Payload: up to 11kg / 24lb | For Photography, Videography

CAD 401.00 - CAD 401.00

CAD 401.00

CAD 401.00 - CAD 401.00

CAD 401.00

SKU : P-OHLR-01

Qty

Description

01.

CAPTURE BIRD'S EYE VIEW SHOTS

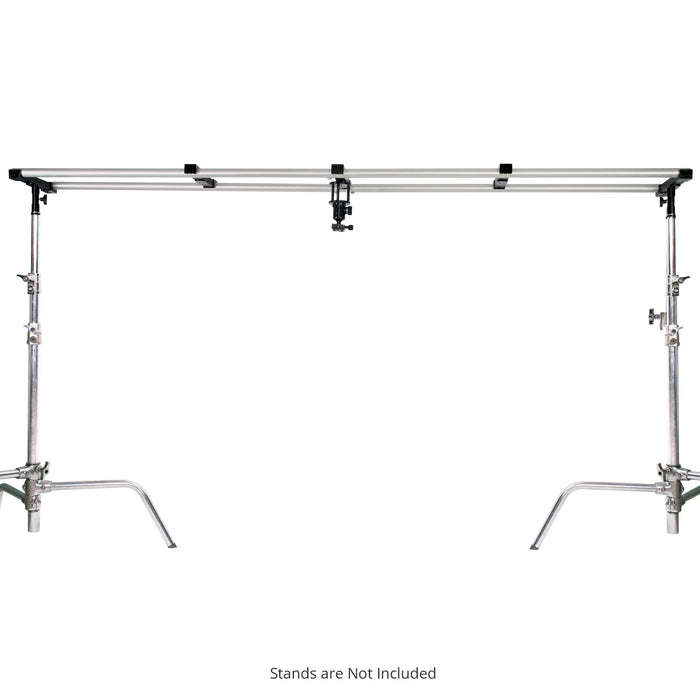

Proaim Overhead Camera Rig creates a stable overhead shooting platform with a camera & accessories and gives a bird’s eye view of the action. It is a great way to add detail shots and interesting video transitions to just about any editorial or commercial project.

02.

QUALITY CONSTRUCTION
The high-quality aluminum rails can be set up at 4, 8, 12' lengths, making it ideal for smaller/larger spaces.
This Rigging system supports cameras, lights, mics and other gear positioned overhead.
The entire system is quick and easy to set up on optional light or C-stands.
The rails easily click into one another and secure onto end spacers.
It has a 24 lb weight capacity when set up at 4' and 11 lb at 12'.
Note: Stands are Not Included.

03.

MOUNTING OPTIONS
Three included accessory spacers attach along the length of the rails for mounting your gear.
The end spacers and accessory spacers all provide 1/4"-20 and 3/8"-16 mounting threads.
The rig is complete with a 3" riser and a ball head that features a quick-release plate. The riser can be screwed into one of the accessory spacers and the ball head onto the riser to position a camera in the desired angle.

04.

TAKE IT ANYWHERE
This rigging system is quick & easy to assemble / dissemble. It is compact enough to be carried in the back of a van and simple enough to be fully assembled within seconds.

IN-ACTION VIDEO

SPECIFICATIONS

Construction

High-grade Aluminum

Payload with Heavy duty Tripod Stand

4ft Length: 24 lb / 11 kg
8ft Length: 20 lb / 9 kg
12ft Length: 11 lb / 5 kg

Rail Length

4ft each section

Camera Mounting

Ball Head: 1/4"-20 & 3/8"-16 Screws

Accessory Mounting

1/4"-20 and 3/8"-16 threads

Weight

6.785kg / 14.95lb

Stand Post Adapter Inner Diameter

16mm

Diameter of Rails

32mm

IN THE BOX

Proaim Overhead Camera Rig
6 x Rails (4ft)
3” Riser
Ball Head
3 x Accessory Spacers
2 x End Spacer
2 x Shank
2 x Baby/Junior Stand Post
2 x Extra Track Connector
Accessories
Bag Packing

user manual

Proaim Overhead 12ft Modular Studio Rig

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question

Is Proaim Boom Light Telescopic Stand compatible (SKU: P-BMLS-01) with Proaim Overhead ?

Yes, Proaim Overhead can be used with Proaim Boom Light Telescopic Stand (SKU: P-BMLS-01) because it has a baby pin to mount overhead on it. However, you need two units of Proaim Boom Light Stands for perfect mounting.
How tall can this get? I see "length" sizes up to 12 feet, but I don't see the maximum height achievable.

Here are the various heights for P-OHLR-01:

4ft Length: 25 lb / 11 kg
8ft Length: 20 lb / 9 kg
12ft Length: 11 lb / 5 kg

We would recommend using it upto 12ft length and 11 lb / 5 kg weight.

If you want the height to be more than 12ft, the weight capacity of the camera setup would be less than 5kgs/11 lb.
Do you have an accessory that will allow me to hang a SmallRig RC120D light from the Overhead 12 Modular Rig ?

Yes, we have the following accessories that will allow you to hand a smallrig RC120D Light from the Overhead 12 modular rig:
1. Proaim 5/8" Baby Pin with 3/8" Screw P-BAPS-01
2. Proaim Snaprig Baby Pin Set with 3/8” Male/Female Threads GP201
\"I am looking to buy the Overhead 12ft Modular Studio Rig (P-OHLR-01) and am curious how I would attach my camera and a cell phone to the rig. Do you have an accessory that I can buy to attach to the accessory spacers for cell phones?\"

The accessory spacers in Proaim Overhead 12ft Modular Studio Rig (P-OHLR-01) have mounting threads of 1/4"-20 and 3/8"-16. You can mount your phone using any phone mount with similar mounting screws.
Is it possible to ceiling mount these rails? Looks like I\'d need to flip the fittings that attach to the legs. Possible?

Yes, you can mount these overhead rails on the ceiling with the help of track ends (top and bottom mounts) which are included with this product. You will also have to seperately make use of a ceiling mount baby pin.
I presently own the Proaim Overhead 12ft Modular Studio Rig for Camera / Gimbal / Light Setups. I would like to get the small soft box lights and a space that can hold a blue yeti mic. I cannot seem to find the accessories I need on the website, can you point me in the right direction please?

Currently, we do not have a small softbox light as per your requirement.

Regarding the space to hold a blue yeti mic, the cross-bar does have threaded holes and you can screw your mic into the same. Here is an image for your reference:

https://prnt.sc/pnixI2sPqa5a
