01.
Extend Your Reach

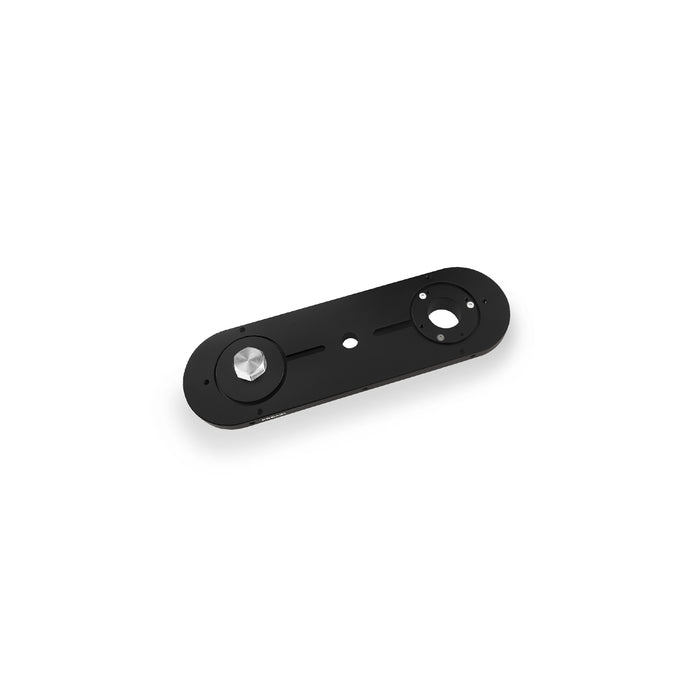

Give your camera an extra reach with the Proaim Zyline Offset Arm that offers multiple camera positions with Mitchell mounts.
It lets you offset the camera from its original position on any Mitchell dolly, tripod, Jib/Cranes, or other Mitchell gears.
The high-quality gear accommodates all industry-standard Mitchell Fluid heads and gives you the additional benefit of getting some amazing underslung shots.
02.
Available In Different Lengths

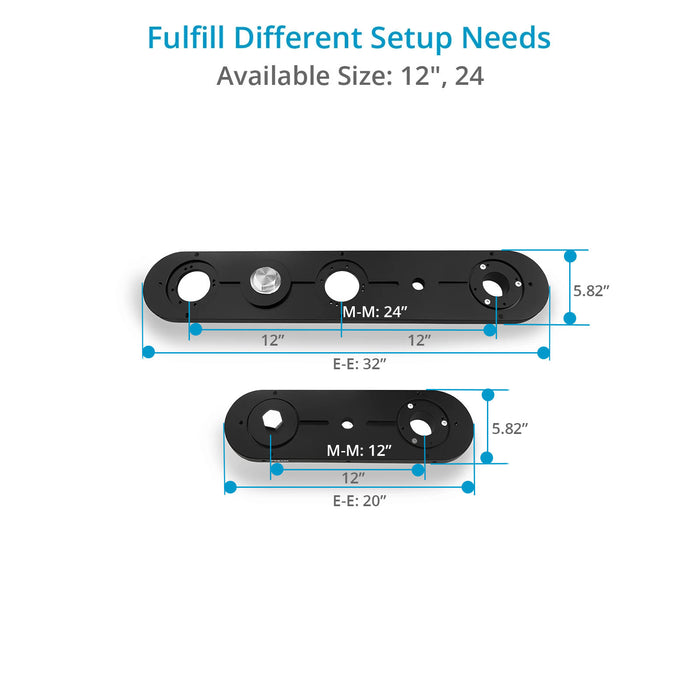

The Camera Offset Arm is available in two sizes : 12" & 24" offering multiple camera positions to fulfill various setup needs.
The camera is offset by:
● 12" in the 12" model
● 12" or 24" in the 24" model
All of these arms have female Mitchell receivers, although if you prefer a male Mitchell mount, we provide Male Mitchell Mount Spud as well as a 7/8" Nut, Bolt, and Step Washer.
03.
Unlimited Rigging Possibilities
There are 1” built-in holes on arms for additional camera and rigging positions.
And the addition of 3/8"-16 threads on the arms expands rigging options for you.
High-Grade CNC Aluminum
Industry-Standard Mitchell Gears
12" Offset Arm: 2x Female Mitchell Receivers
Male Mitchell Mount Spud
3/8”‐16 female threads
1” diameter Mounting Hole
24" Offset Arm: 3x Female Mitchell Receivers
Male Mitchell Mount Spud
3/8”‐16 female threads
2x 1” diameter Mounting Hole
12" Offset Arm: 4.5kg / 9.92lb
24" Offset Arm: 6.13kg /13.51lb
12" Offset Arm: 5.83kg /11.86lb
24" Offset Arm: 7.48kg /16.49lb
Proaim Zyline 12" Offset Arm (OA-ZYLN-12)
Proaim Zyline 24" Offset Arm (OA-ZYLN-24)
| Guaranteed Fast Delivery |
 | Quick and Efficient |
| Easy Returns |
| 1-Year Warranty |
Do you sell anything that has the ability to have (2) Mitchell heads side by side ?
The Proaim Zyline Offset Arm has the Mitchell mount on both sides.
What is the payload rating of the Proaim Zyline 36\" Offset Arm?
The Proaim Zyline 36" Offset Arm can easily take upto 100 kgs as it is a solid aluminium construction.
