01.
A WIRELESS MONITORING SOLUTION
Packed with cutting-edge features, such as a dual direction swing away bracket, sun shade, quick-release neck strap, dual Teradek mounting areas, hand grips, and a convenient cable tie for hassle-free cable management, this 9” universal cage rig is the ultimate tool for easy and efficient monitor handling.
WELL-DESIGNED MONITOR CAGE – LIGHT, SECURE, AND COMFORTABLE.
02.
HEIGHT ADJUSTABLE DESIGN
The cage has a handy rod-based height adjustment feature, making it easy to modify the height to accommodate monitors measuring up to 9 inches diagonally.
03.
COMFORTABLE GRIP
This aluminum cage features carbon fiber handgrips for comfortable monitor support on set. The handles are adjustable, foldable, and designed for easy packing, making it a convenient tool for crew members..
04.
SUN SHADE
The sunshade’s bottom is made of Velcro that snaps directly to the cage frame by adjusting to the proper width of the monitor.
When packing the camera cage, it can be repurposed as a protective cover to avoid dings or scratches.
05.
BATTERY PLATE
Its battery mounting plate features a V-Mount and dual direction swing away functionality for easy access to the monitor's rear and installed wireless devices.
06.
NECK STRAP
The soft padded neck strap has four mounting points and quick-release clips that let you go hands-free & facilitate comfortable carrying without losing sight of your LCD.
07.
MOUNTING POINTS
The cage features multiple 1/4"-20 & 3/8"-16 mounting points all around for hassle-free attachment of accessories such as a sun hood or wireless receiver. Additionally, you can conveniently mount up to two wireless receivers next to each other on the Teradek mounting areas.
08.
COMPATIBLE WITH WIDE RANGE OF STANDS
The bottom cage bracket includes a built-in baby pin option with a locking thumb screw to mount on any C-stand.

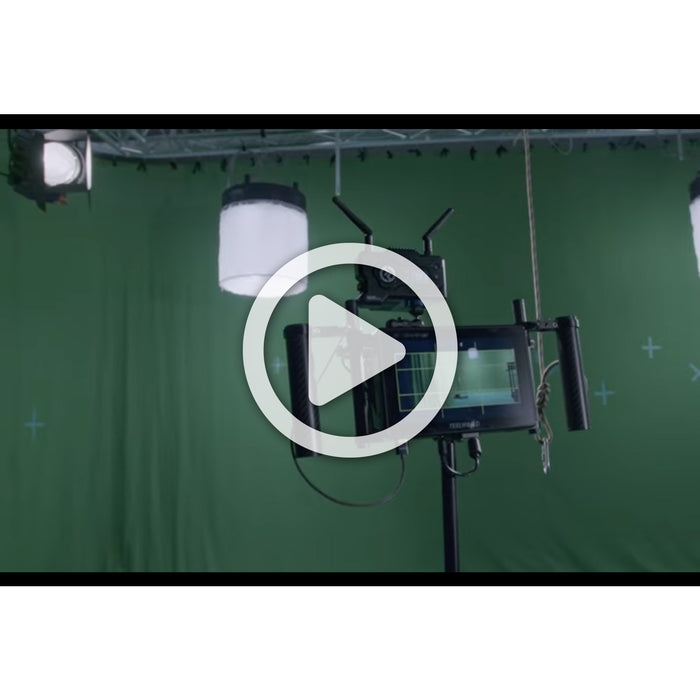

IN-ACTION VIDEOS
SPECIFICATIONS
Construction
Cage: High-grade CNC Aluminum
Handles, Rods: High-grade Carbon Fiber
Battery Plate: High-grade Plastic
Mounting
Accessory mounting: 1/4"-20 & 3/8"-16
C-Stand Mounting: 5/8” Baby Pin Adapter
Battery- V-Mount Battery Plate
LCD Monitor: up to 9inches (measured diagonally)
Carbon Fiber Rods
Length: 165mm
Diameter: 15mm
Compatible Monitors
SmallHD DP4, DP6, AC7, DP7, 500 Series, 700 Series, Cine 7, 702 Touch, FOCUS 5/7, and UltraBright
TVLogic VFM-056W/WP, VFM-058W, VFM-055A, F-7H, F-5A
Ikan D5, VK7i, VH8, VL5, VX9e, DH5e, DH7, D7C, S7H, S7C, S7P
Odyssey 7, 7Q, 7Q+
Blackmagic Video Assist
Atomos Samurai, Ninja, Shogun, Shinobi and many more
Dimensions
Product Weight (Without Packing)
0.640kg / 1.411lb
Product Volumetric Weight (With Packing)
2.9kg / 6.39lb
IN THE BOX
Monitor Cage
6 x ¼” 20 x 1/2" button heads crews
6 x ¼ ” 20 x 3/8" button head screws
2 x Off set adapters
4 x M3 x 12mm phillips screws (for optional Gold Mount plate)
4 x M3 x 12mm pan head phillips screws(for Teradek XT/LT)
4 x M3 x 6mm socket cap screws (for Odyssey 7Q)
1 x Sun Shade
1 x Neck Strap
1 x Velcro Strap
4 x Allen Keys
