Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

Save 0% Save 0%
CAD 2,792.00
CAD 2,792.00 - CAD 2,792.00
CAD 2,792.00
CAD 2,779.00
CAD 2,779.00 - CAD 2,779.00
CAD 2,779.00
SKU : P-A21-JCP

AT A GLANCE

Payload
7.5 kg
Jib Length
21 ft
Includes
Alphabet 21ft Camera Jib Crane Package
Tripod
Dolly
Pan/Tilt Head
Compatible With
Camera Setups, Gimbals, and Pan Tilt Heads

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

Proaim Alphabet21ft jib crane package

21 ft of cinematic reach. Complete control in every move.

Capture sweeping cinematic shots and smooth camera rises with the Proaim Alphabet 21 ft Jib Crane Package. Its adjustable 12–21 ft arm assembles without tools, while the included tripod stand, portable dolly, and motorized pan-tilt head provide stable support, easy repositioning, and precise camera control.

15 kgJib payload (33 lb)
21ftMaximum length (6.4 m)
360°Panning range
7.5 kgPan tilt head payload
Operator working the counterweights of the Proaim Alphabet 21ft Jib Crane on its tripod and dolly in a white studio, with the camera head raised high

01Performance

Professional. Strong. Light. Smooth.

Proaim Alphabet is designed for videographers and cinematographers who need a lightweight and ultra-portable Crane system. The Alphabet jib has many great features such as tool-less assembly, tilt brake, reinforced jib sections & variable lengths, making it one of the most value for money jib. It allows to capture smooth, dynamic sweeping pans and camera rises.

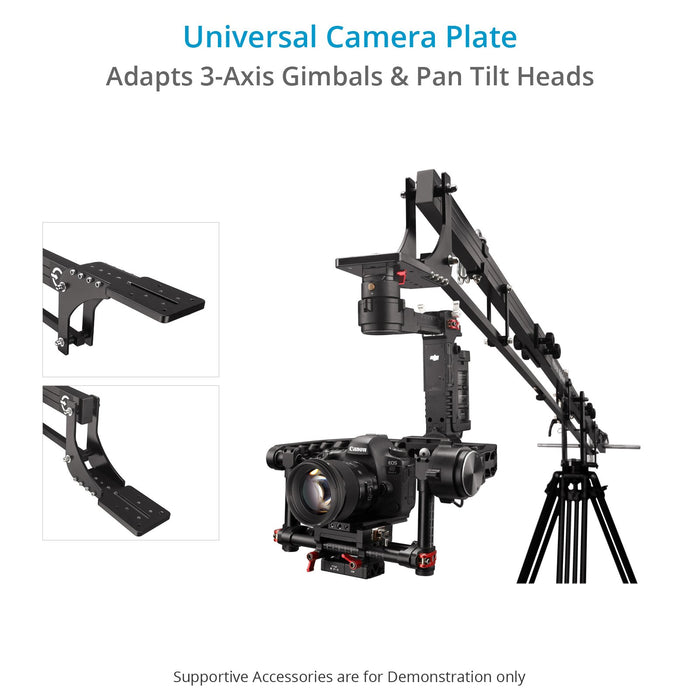

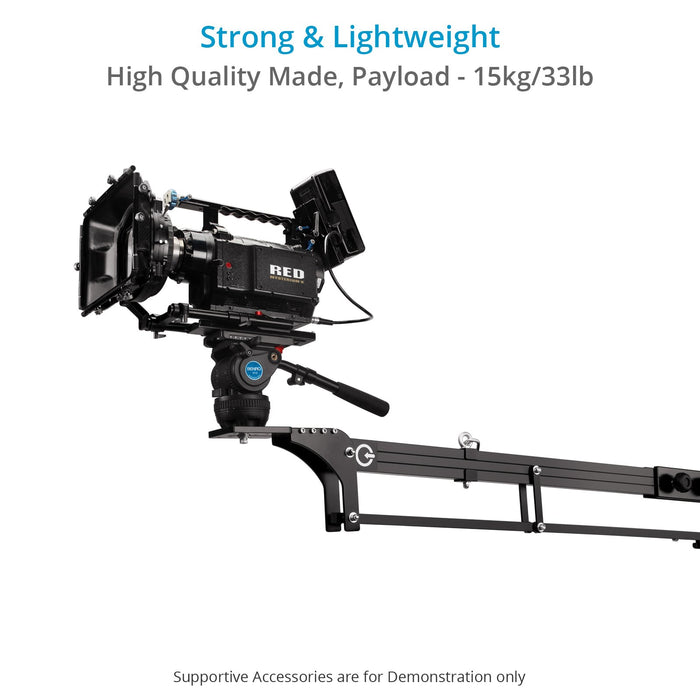

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers. High strength Aluminum construction with unbeatable stability holds camera setups up to 15 kg / 33 lb.

Tool-lessAssembly
Front mountGimbals & pan tilts
SmoothSweeping pans & rises
Crew operating the Proaim Alphabet 21ft Jib Crane at the foot of a courthouse staircase

02Configuration

Adaptable lengths.

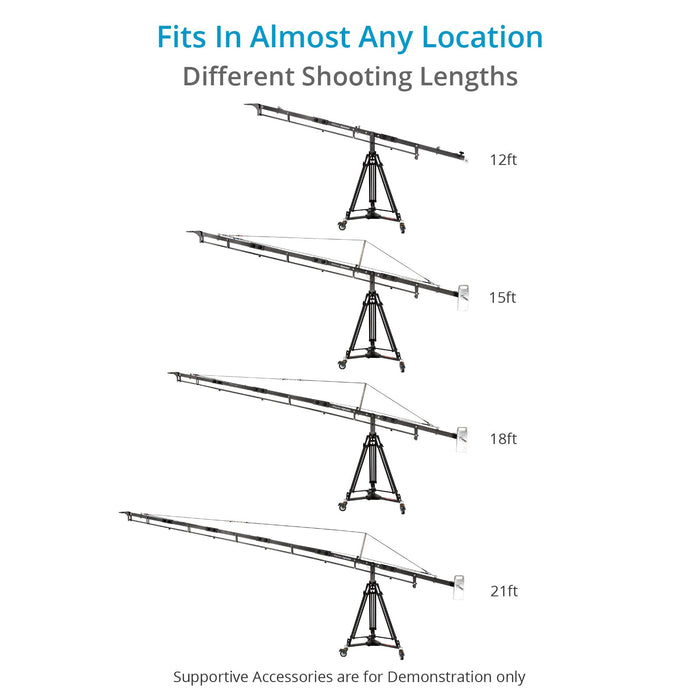

You can adjust the arm length from 12 feet to 21 feet by easily adding or removing the jib sections. The ability to change the length allows you to use the Crane in various scenarios.

4 lengths12, 15, 18 & 21ft
QuickSection changes
ChartBalance for each length

12ft · Shortest build

Minimum12ft
Maximum21ft
Arm builds from 12ft to 21ftAdd or remove jib sections
Crew operating the Proaim Alphabet 21ft Jib Crane on its 100mm tripod stand in the sand dunes by the sea

03Support

Solid foundation for Alphabet crane.

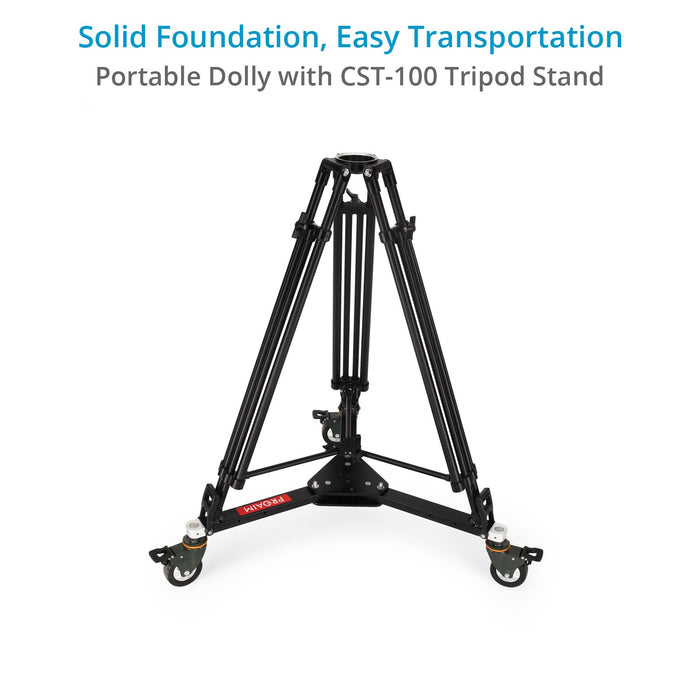

This excellent combination of Proaim 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed. It combines high-quality materials, technological expertise and superior design to provide ideal support needed to take the perfect shots.

The Tripod supports an incredible payload of up to 80 kg/176 lb and is highly stable in use. Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and easily takes payloads up to 500 kg/1100 lb. The main features of Dolly are – Secure Tripod feet holders, locking brakes, high quality wheels and foldable design.

80 kgTripod payload
500 kgDolly payload
FoldableDolly design
Crew flying the Proaim Alphabet 21ft Jib Crane over a swimming pool on a villa shoot

04Value

Most affordable jib solution.

For rigs under 15 kg/33 lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim Alphabet eliminates that concern by providing an excellent jib solution at an economical price.

CNCAluminum jib arm

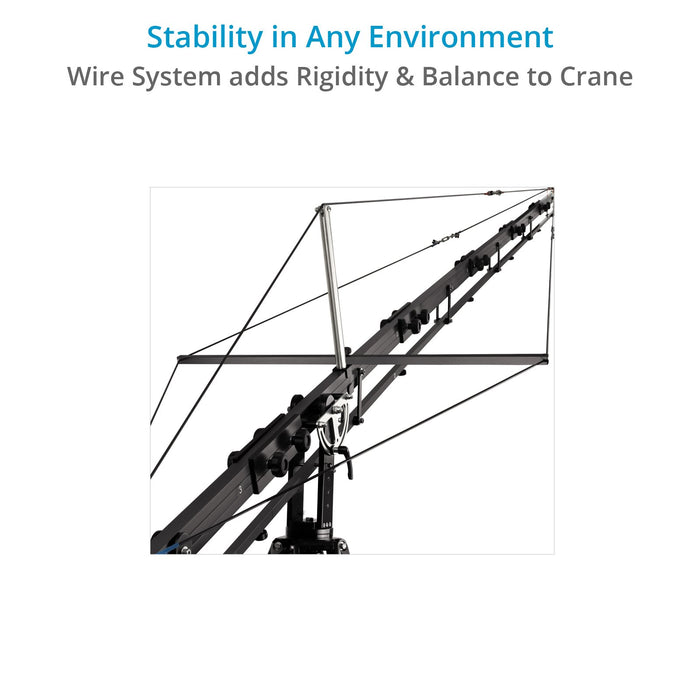

SteelStainless cable system
PriceAffordable

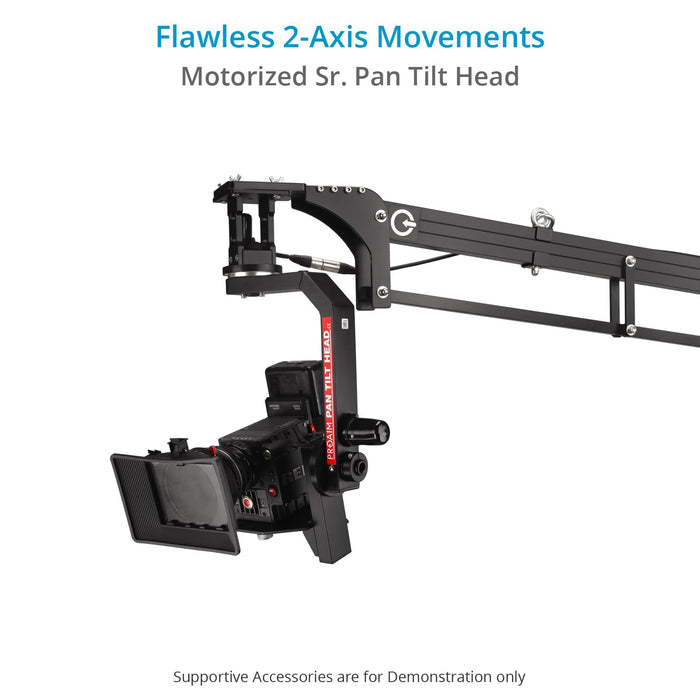

Proaim Sr. Pan Tilt Head mounted on the Alphabet 21ft Jib Crane, carrying a cinema camera with matte box

05Pan tilt head

Enhance your creative vision.

Proaim Sr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5 kg/ 16.5 lb with ease. Creative flexibility is a built-in feature as the Pan Tilt head can be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Sr. Pan tilt is a user-friendly Controller System.

Two coreless high torque motors provide inaudible movements along with a payload capacity of 7.5 kg/16.5 lb, which is substantially higher than its counterparts.

The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

CorelessDC motors
2 axisPan & tilt
BrassGears

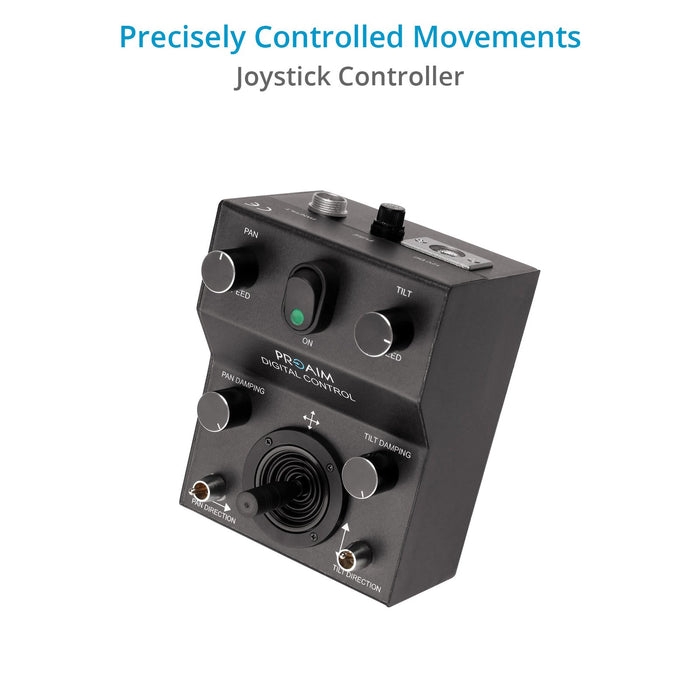

Proaim Digital Control box for the Sr. Pan Tilt Head, with pan and tilt speed, damping, dead spot and direction controls and a joystick

06Controls

Easy operation.

Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.

Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.

You can reverse the panning & tilting direction as & when required.

DampingSmooth endings
6–51°/sVariable speed
ReversePan-tilt direction

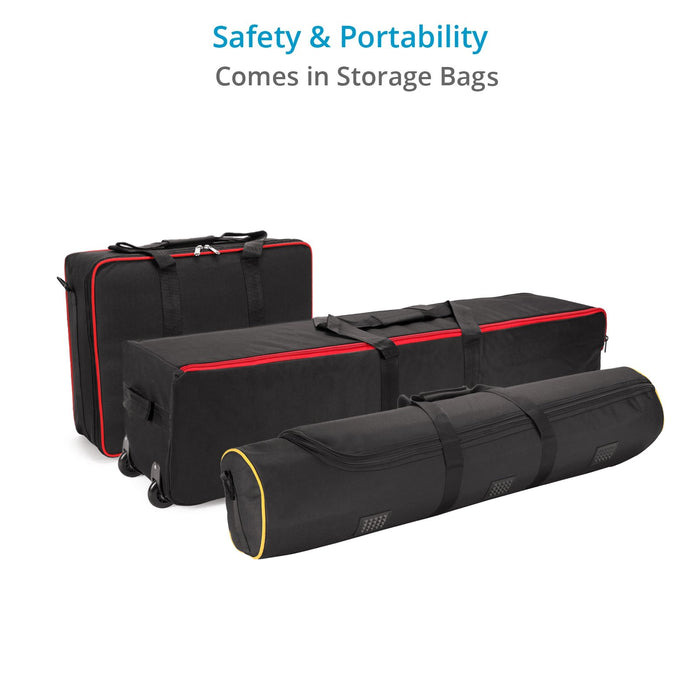

Three carry bags for the Proaim Alphabet 21ft Jib Crane Package, including a wheeled case

07Transport

Simplified transport.

The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

CompactBags
EasyStorage
PortableSets & locations

08Specifications

Alphabet 21' Jib

ConstructionJib Arm - High-grade CNC Aluminum
Cable System - Stainless Steel
Load Capacityup to 15 kg / 33 lb

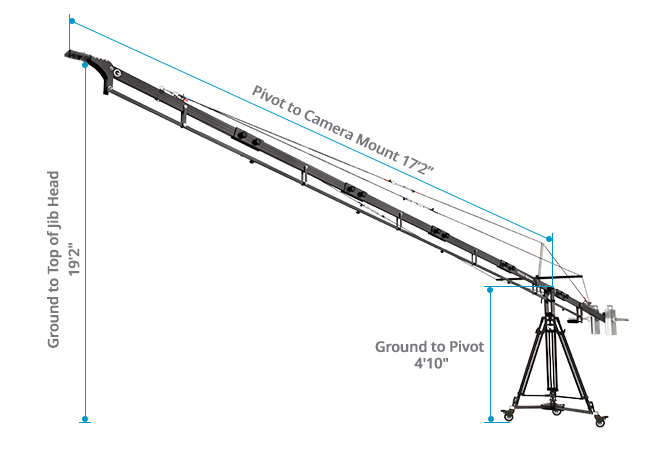

Maximum Length21' / 6.4 meter
Tilt LockYes
Pan LockYes
Panning Range360°
Self-Balance27 kg / 59 lb
Package Weight35.400 kg / 78.04 lb
Box Dimensions (LxWxH)141 x 37 x 33 cm / 55.5 x 14.56 x 12.99 inch

CST-100 Stand

ConstructionHigh-grade CNC Aluminum
Load capacity80 kg /176 lb
Diameter of tripod tubes20mm and 14mm
Maximum length60 inch
Minimum length34 inch
Collapsible height36 inch
Tripod Weight6.50 kg / 14 lb
Package Weight11.4 kg / 25 lb
Box Dimensions (LxWxH)39.7 x 10.2 x 9.5 inch

Sr. Pan Tilt Head

ConstructionHigh-grade CNC Aluminum
Industrial Grade Electronic Components
Pan and Tilt2 Axis
MotorTwo high-torque coreless DC motors that pan & tilt the head through 360 degrees.
Panning Range360°
Tilting Range360°
Load Capacity7.5 kg / 16.5 lb
Height AdjustmentMinimum height of head - 17"
Maximum height of head - 26"
Camera platform height can be adjusted at any point.
Rotation Speed360° Pan and Tilt: At Slowest Speed: 2 Minutes
At Fastest Speed: 7 Seconds
Operates consistently at any speed without stopping.
Variable Speed ControlLow Speed: 6 degrees/second
High Speed: 51 degrees/second
Power Input100 to 240 V AC
Power Output12 V DC, 2 A
Control Input4-Pin XLR
Weight3 kg / 6.6 lb
Package Weight7.7 kg / 16.97 lb
Box Dimensions (LxWxH)22.3 x 15.3 x 7.3 inch

User manual

Proaim Alphabet 21ft Jib Crane PackagePDF ↓

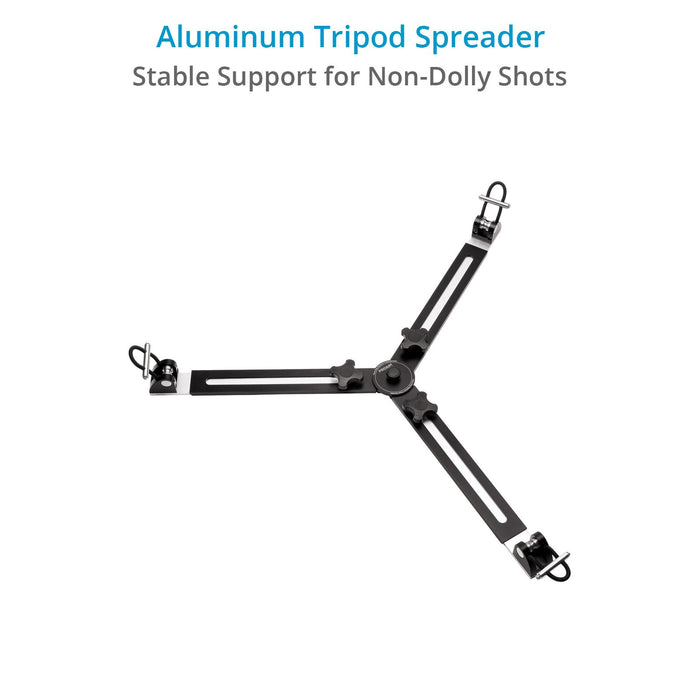

Spreader

Load Capacity400 kg / 880 lb
Spreader height50mm / 2inch
Build-Up RadiusStandard Configuration: 41 cmExtended Configuration: 66 cm
CompatibilityAll Tripods with Twin Spiked Feet
Product weight (without packing)2.47 kg / 5.44 lb

Portable Dolly

ConstructionHigh-grade Steel
Load Capacity500 kg / 1102 lb
Tripod Foot CompatibilitySpiked Feet
Locking WheelsYes
Weight10.7 kg / 23.59 lb
Package Weight11.65 kg / 25.68 lb
Box Dimensions (LxWxH)23.4 x 10.7 x 9.4 inch

In the box

  1. 016 x Jib Sections
  2. 021 x Support Rod
  3. 031 x Cable Guide
  4. 041x Weight Rod with Weight Closer
  5. 058mm Male Female Knob Set
  6. 0610mm Female Knob
  7. 073/8" Male Knob
  8. 08Handle
  9. 091 x (Red) 11ft
  1. 101 x (Red) 6.7ft
  2. 111 x (Red) 3.3ft
  3. 122 x (Blue) 11ft
  4. 132 x (Blue) 6.7ft
  5. 142 x (Blue) 3.3ft
  6. 15Jib Stand with Aluminum Spreader (CST-100-01)
  7. 16Sr. Pan Tilt Head (PT-SR)
  8. 17Lineo Portable Camera Dolly (P-PRT-D)

09Balancing chart

Alphabet 21ft JibAlphabet 18ft JibAlphabet 15ft JibAlphabet 12ft Jib
Length21ft18ft15ft12ft
Camera Plate Length0.8ft0.8ft0.8ft0.8ft
Length without Camera Plate20.6ft17.15ft13.72ft10.3ft
Length with Camera Plate21.4ft (Complete Length)17.95ft (Complete Length)14.52ft (Complete Length)11.1ft (Complete Length)
Camera WeightCounter Weight
Without Camera28 kg16 kg7 kgNo need counter weight , it is balanced with weight rod whose weight is 3.2 kg
1 kg(28+4.2)=32.2 kg(16+3.5)=19.5 kg(7+2.25)=9.25 kgWeight Rod + 1.5 Kg
15 kg91 kg68.5 kg41 kg22.5 kg

10Videos

See the Alphabet 21ft Jib Crane Package in action.

Assemble Your Proaim Alphabet 21ft Camera Jib Crane at ease within no time I Travel-Friendly

Expand your Shooting Range - Proaim Alphabet 21ft Video Camera Jib Crane|TestShots

Guaranteed Fast DeliveryFor All orders
Quick and EfficientCustomer service
Easy ReturnsUp to 30 days
1-Year WarrantyOn All Products

Q&A

Ask a Question



  • hello! if I need more length in the future can I buy separate arms ???

    No, you cannot add more arms in this jib

  • Does this work with the Proaim Gravity Heavy-Duty Tripod (Flat Base)?

    Yes, the Proaim Alphabet 21' Jib/Crane Arm works with the Proaim Gravity Heavy-Duty Tripod (Flat Base).

  • Could it be used with already owned 100mm ball head tripod legs?

    Yes, you can use this with any set of 100mm ball tripod legs just check the Tripod's payload before mounting.

  • Does this come with the Proaim power pack?

    No, this Jib does not include the Power pack.

  • Could it be controlled by a computer

    The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

  • Can the Sr. Pan Tilt Head be moved by hand if i don't want to use the motor?

    Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

  • Can I mount DJI RS3 on P-A21-J?

    Yes, you can mount DJI RS3 on the Proaim Alphabet 21ft Jib Crane with the help of Proaim DJI-QR and P-QRG Quick Release systems.

  • If I will bye alphabet 21 crane with 3 axcis and after few months I can remove the dutch roll from the head and continue to work with 2 axcis head?

    Yes, the Dutch roll can be removed from the Proaim Spin-3 head and the head can be converted to 2-Axis head.

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.
