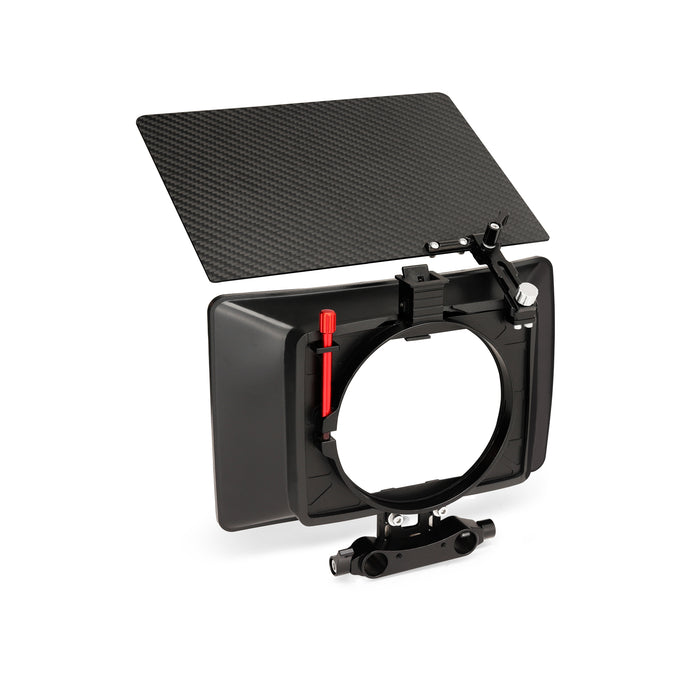

Proaim MB-10 Lightweight Clip-On Camera Matte Box for 67mm - 82mm, 114mm lenses

Compatible Lens diameters: 114mm, 82mm, 77mm, 72mm, 67mm

Original price US $211.00 - Original price US $211.00
Original price
US $211.00
US $211.00 - US $211.00
Current price US $211.00
SKU : MB-10-01

CRAFT FINER, MORE DISTINCT, MORE STYLIZED IMAGES!

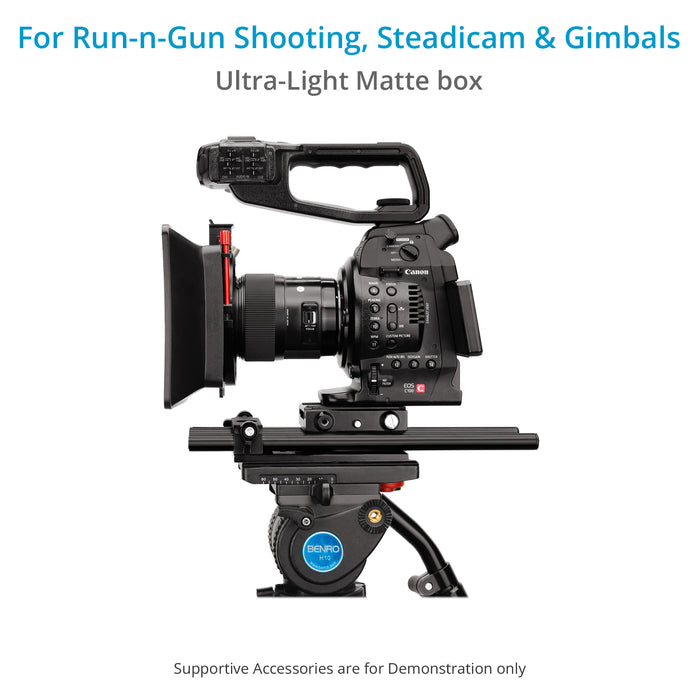

Ultra-Light Solution for Run-n-Gun Shooting, Steadicam, Gimbal & Drones!

01.

Ultra-Light Matte box

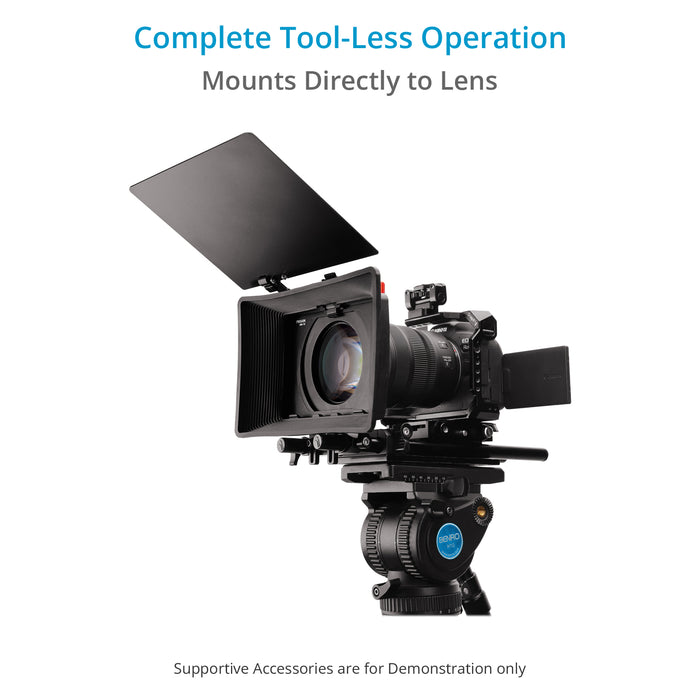

Enhance your video production and push it to the next level with Proaim MB-10-01, a lightweight matte box for blocking stray or unwanted light in your image.
It minimizes lens flares, which can produce haziness or other visual distortions in your image, and let the camera maintain optimal contrast across the image.
It is an incredibly lightweight yet sturdy matte box that encounters all the elements you need for different shooting styles and productions.
It is best - suited for run-and-gun shooting, Steadicam, Gimbal, and Drone use.

Proaim MB-10 Lightweight Clip-On Camera Matte Box for 67mm - 82mm, 114mm lenses
Proaim MB-10 Lightweight Clip-On Camera Matte Box for 67mm - 82mm, 114mm lenses

02.

Suited To Your Needs

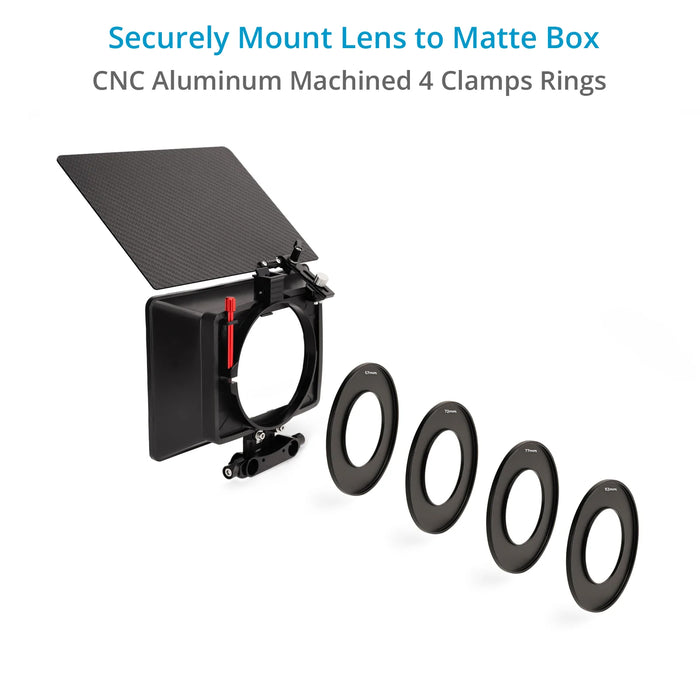

The matte box is designed to clamp onto a 114mm lens and comes with four adapter rings for mounting on 67mm, 72mm, 77mm, and 82mm lenses.
These rings enable you to use a wide range of lenses and still clamp the MB10 Matte Box safely and securely.

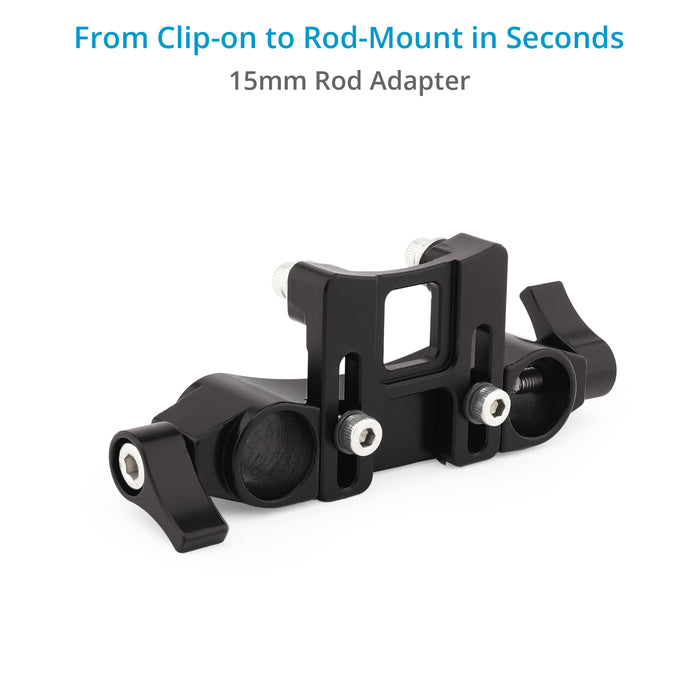

Also, the included 15mm Rod adapter allows you to convert the MB-10-01 matte box from clip-on mount to rod-mount as and when needed, making it usable for multi-purposes within different setups.

03.

Block & Filter Unwanted Light

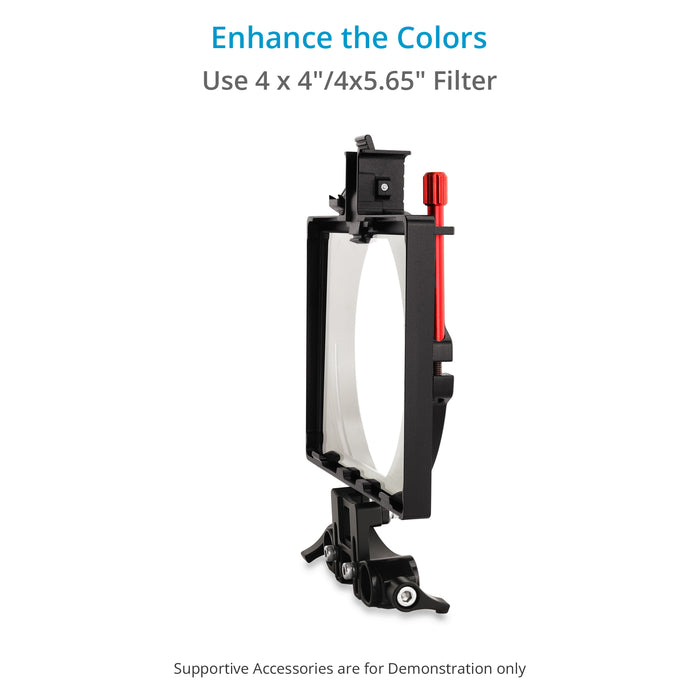

It accommodates both 4 x 4" and 4 x 5.65" filters using the clamp-on filter holder present at the front of the Matte Box frame.
And, you have an amazing option to use it as a filter holder and take off the front hood when not required.

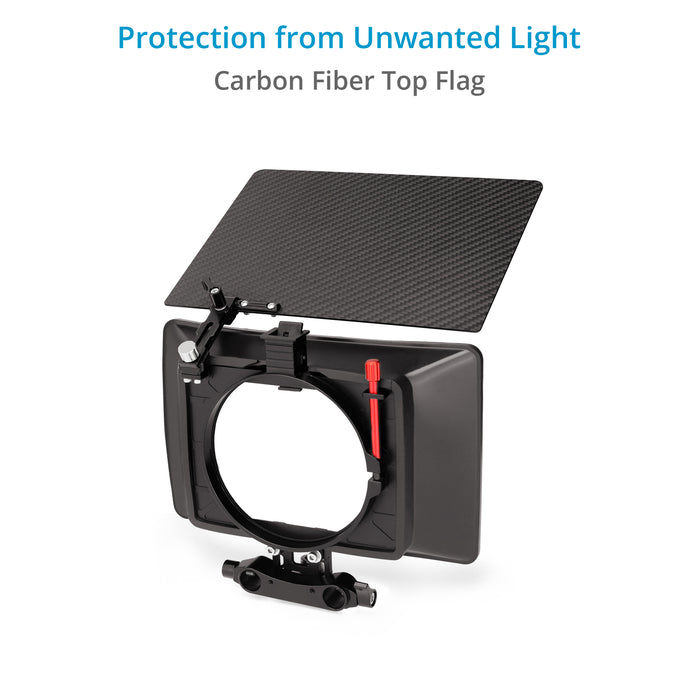

A carbon fiber top flag is included that helps block veiling glare or bright reflections from striking your lens.
Also, you can fold it down to cover the front of your matte box and lens and protect it from any debris, dirt, or dust on the set.

Proaim MB-10 Lightweight Clip-On Camera Matte Box for 67mm - 82mm, 114mm lenses

SPECIFICATIONS

Construction

  Hood: Rubber
  Frame: Metal
  Top Flag: Carbon Fibber

Compatibility

  Proaim Rigrods 15mm Titanium Support Rods (15", Pair)

Rings Clamps

  CNC Aluminium Machined

Filter Size

  4x4" or 4x5.65"

Lens Compatibility

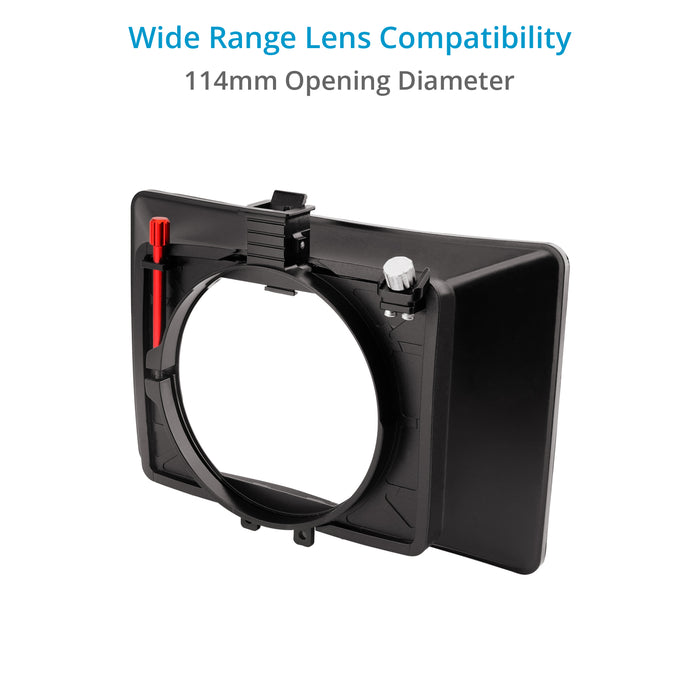

  114 mm Opening
  67mm Clamp (via Included Adapter)
  72 mm Clamp (via Included Adapter)
  77mm Clamp (via Included Adapter)
  82mm Clamp (via Included Adapter)

Rod Standard

  15 mm LWS / 60 mm Spacing

Flags

  1 x Top Flag

Dimensions

Proaim MB-10 Lightweight Clip-On Camera Matte Box for 67mm - 82mm, 114mm lenses

Product Weight (Without Packing)

  0.57 kg / 1.25 lb

Product volumetric Weight (With Packing)

  1.73kg / 3.81lb

IN THE BOX

Metal Frame with inbuilt Holder
Carbon Fiber Top Flag
Rubber Hood
(OD-114) -(ID-67) mm Ring Clamp
(OD-114) -(ID-72) mm Ring Clamp
(OD-114) -(ID-77) mm Ring Clamp
(OD-114) -(ID-82) mm Ring Clamp
15mm Rod Adapter
Lens Cleaning Cloth
1 x 3mm Allen Key
