Proaim HS-1000 15mm Follow Focus with Hard Stops

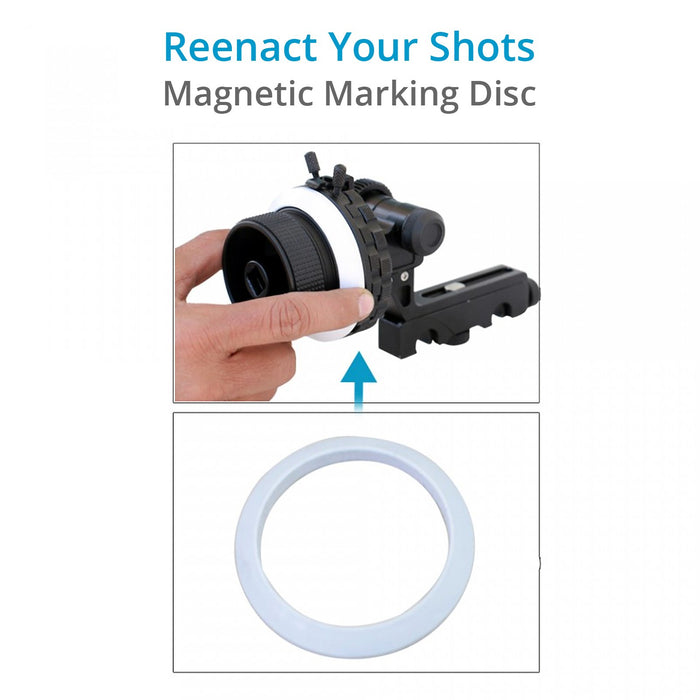

Proaim introduces its most durable HS-1000 follow focus allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Integrated Hard stops will let you set start/end points on DSLR lenses for quick focus racking between two focus points. Additionally, the follow focus DSLR features movable indicators which allow pulling focus from different place on the camera. It helps to prevents obstruction in the view during lens adjustments and allows you to create more complex shots and scenes. The included magnetic marking disk enables to view your focus marks from various angles. The Speed Crank switches your follow focus unit to crank operation. Made of anodized aluminum ends with a stainless steel shaft, the crank contains absolutely no plastic. Elevate your craft; create awesome and effective shots with professional-quality product.
"WHAT YOU SEE IS WHAT YOU GET"
- CNC made Aluminium Construction.
- Sturdy built for no backlash.

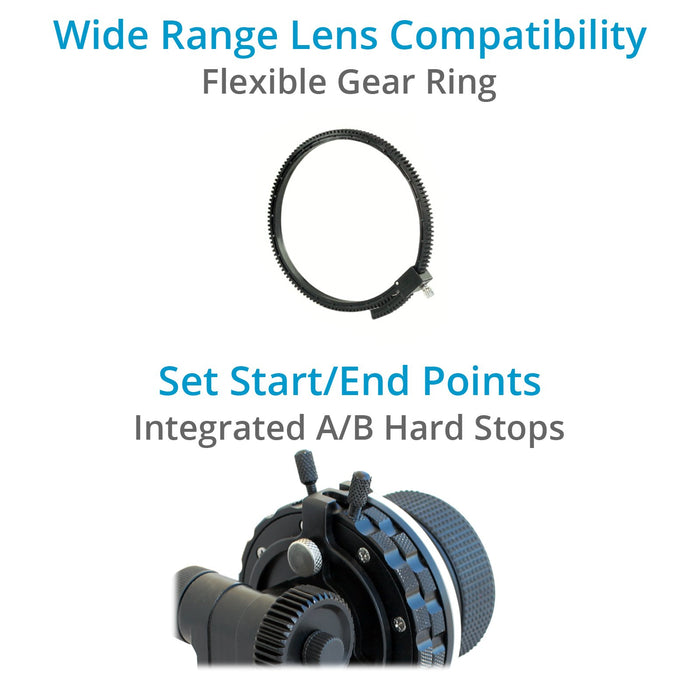

- Integrated A/B hard stops for accurate, smooth and precise focusing.
- Speed crank for precision-controlled manual focus racking.
- Gear can also be changed from side to side.
- Variable Lock Mechanism allows quick adjustment of start and end points.

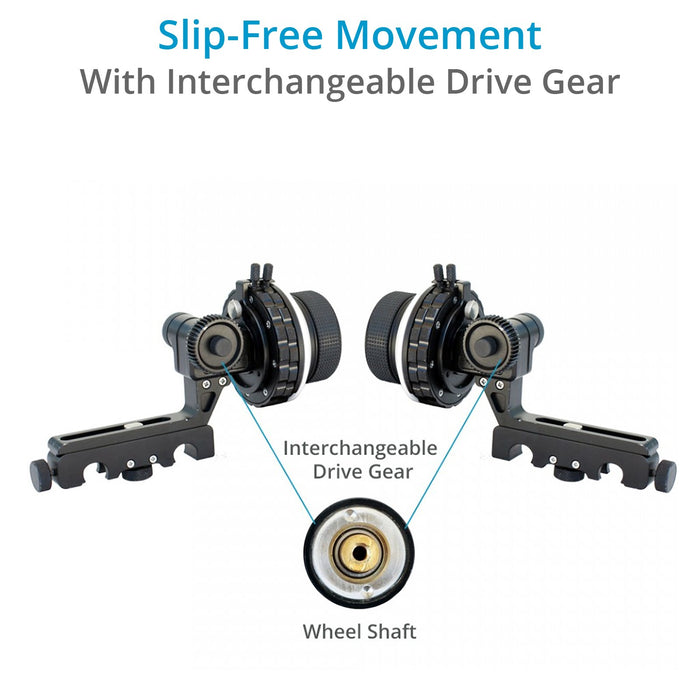

- Interchangeable Drive Gears for right hand and left hand operations.
- Quick Mounting Technique
- Easy Gear Arm adjustment
- Allows extremely focusing lenses to be geared and used with Follow Focus industry standard 0.8 module.
Video is for demonstration only
Actual Product may vary due to Product Improvements
Enjoy razor sharp focus pulls without touching the lens barrel of your camera

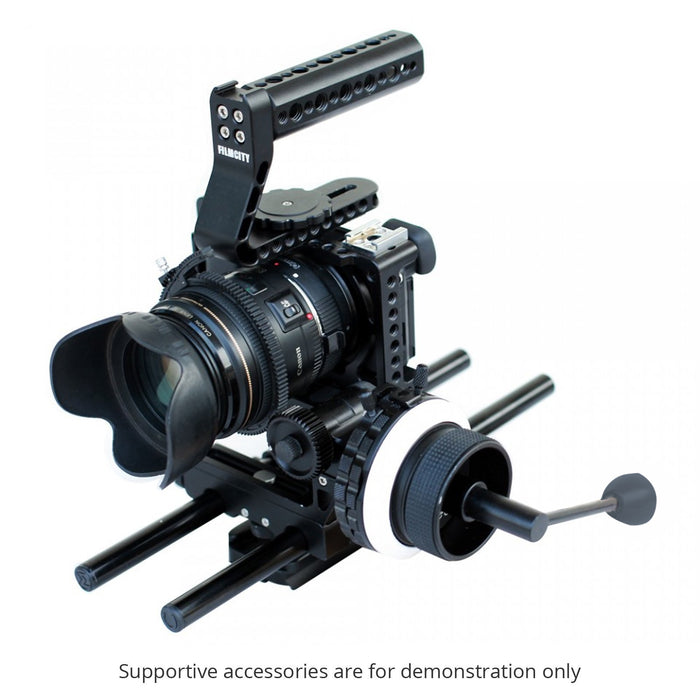

The Supportive accessories are for demonstration purpose only.
- CNC made Aluminum Construction

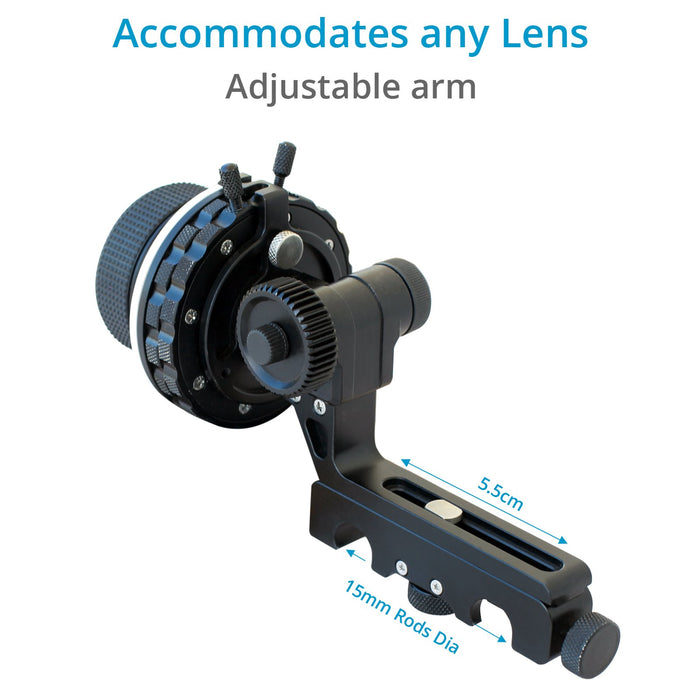

- Gear Arm adjustable distance: 5.5 cm
- 43T 0.8 Mod Pitch Gear
- Gear Material: Aluminum
- Fit Rail Distance: 60 mm
- Fit Rail Diameter : 15 mm
- Product Weight (Follow focus, Gear ring, Speed crank): 640gm / 1.41lb
- Product Weight (With Packing): 900gm / 1.98lb

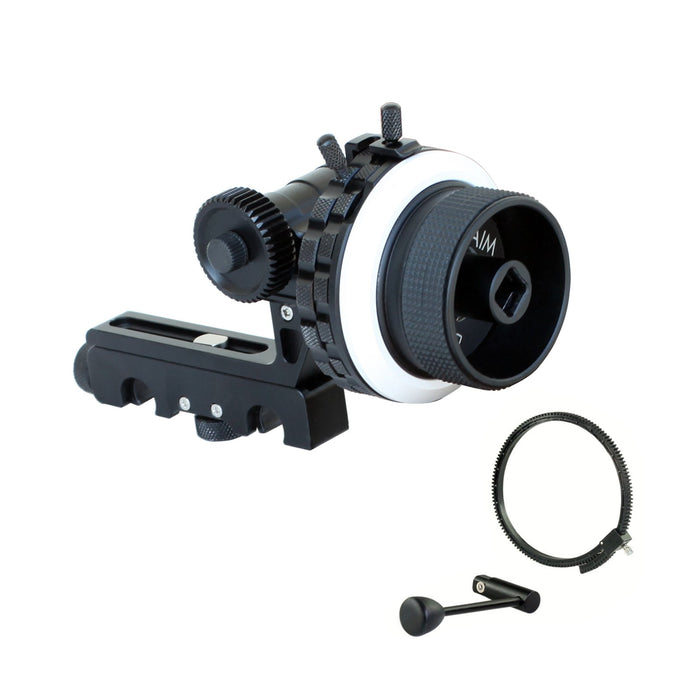

- Proaim HS-1000 Follow Focus
- Flexible Gear Belt
- Speed Crank
Q: Does this follow focus comes with Hard Stops?
Ans: Yes, this follow focus comes with Hard Stops.
Q: What lenses it can be used with?
Ans: It can be used with all standard lenses with 0.8 gear pitch.
Q: Will it work with dslr camera with battery grip?
Ans: Yes, this follow focus will work with DSLR camera with battery grip.
Q: What is the difference between HS-2 and HS-1000 Follow Focus?
Ans: Both differs in design only.
Q: What is the material of marking disc?
Ans: The marking disc is made of acrylic sheet.
Q: Will the follow focus work with RED Camera?
Ans: Yes, this follow focus will work with RED camera.
Q: Can this follow focus be used with a gh3 equipped with a grip (higher)?
Ans: Yes, this follow focus will work with Panasonic Lumix GH3 equipped with a battery grip.
Q: Is this adaptable for a sony objective 24-70 mount on a7sii?
Ans: This follow focus will work with any camera that is attached to 15mm rails spaced 60mm c/c apart. The drive gear has 0.8 pitch gear that is applied to either the lens Focus or Zoom ring. The gear belt is for lenses that don't have teeth already built in or that don’t have the 0.8 gear pitch.
Q: is it suitable for a 1200d optical barrel 50mm / 1.8 STM diameter 49? Can it be fastened to the camera without a rail?
Ans: It is not suitable for 1200d optical barrel 50mm / 1.8 STM diameter 49. It cannot be fastened to the camera without a rail.
Q: Does it have adjustable height and width?
Ans: It has adjustable width only.
Q: Are the internal gears metal or plastic?
Ans: The internal gears are of metal.
Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.
Q: What is the warranty?
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
