Camtree Rayo 8ft Camera Track Dolly Slider | Free Camera Mounting Clamp

Compatible Track Rail Diameter – 20 x 40mm

US $682.00 - US $682.00

US $682.00

US $682.00 - US $682.00

US $682.00

SKU : C-RAYO

Qty

CAMERA SLIDER TRACK DOLLY

FOR MAXIMUM SMOOTHNESS IN ANY SITUATION

01.

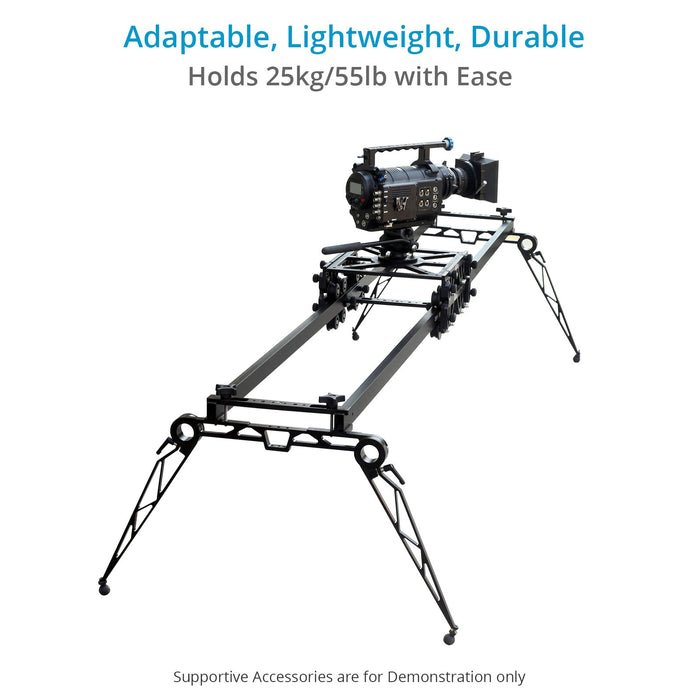

PROFESSIONAL. DURABLE. LIGHTWEIGHT
The Camtree Rayo Dolly is a versatile and portable slider dolly solution for filmmakers wanting a small footprint on the set without sacrificing stability or safety.
The Rayo Dolly is all about being on the go; weighing only 8kg / 17lb is easy to carry and quickly set up.
It is light enough for one person to handle and just easy enough to manoeuvre on the fly.
It is constructed of high-grade Aluminum for a more robust yet lightweight build and supports loads of up to 25kg / 55lb.

Camtree Rayo 8ft Camera Track Dolly Slider

02.

EASY AND CONFIGURABLE SET-UP
Rayo Dolly is designed for a 20 x 40mm rectangle rail/track, configured into variable lengths of 4ft & 8ft.

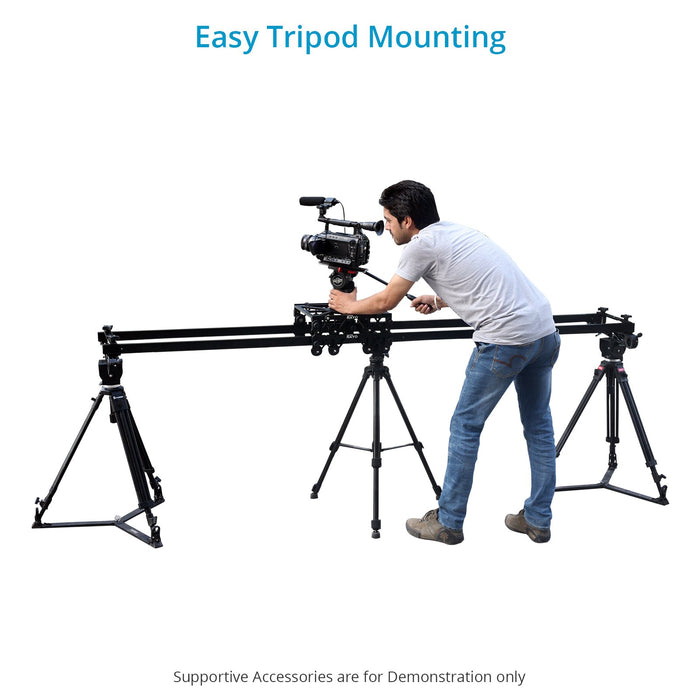

Compatible rails and crossbar allow mounting your Rayo Dolly on Tripods in seconds, allowing users to start filming quickly

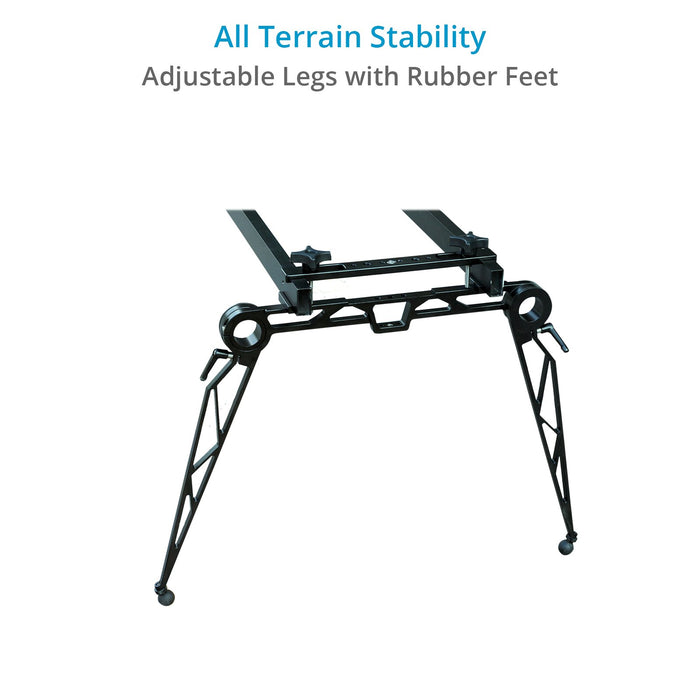

The integrated adjustable feet provide mounting solutions for any filming environment. You can use an underslung Camera for tracking shots.

03.

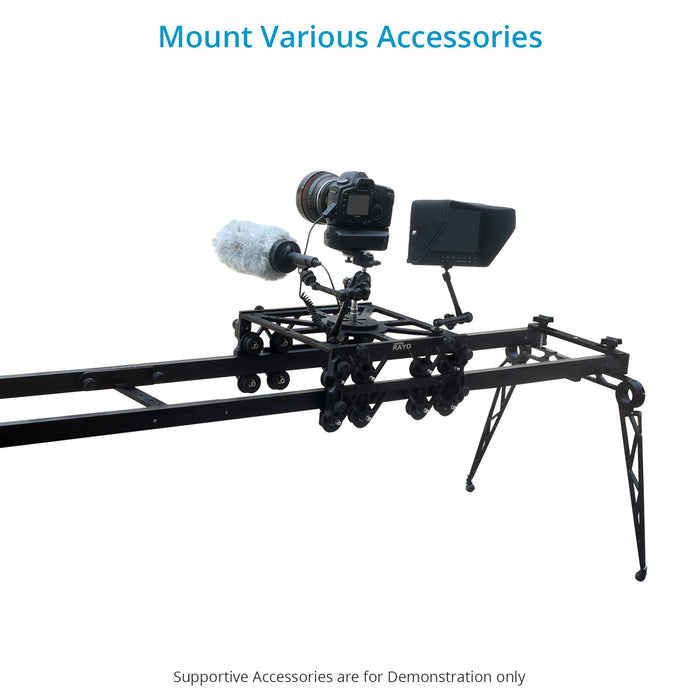

MOUNTING OPTIONS
The Dolly's top mount can quickly change between 75mm & 100mm. Bowl Mount configurations to accommodate different camera head types.
¼" -20 & ⅜" -16 threaded holes allow mounting accessories such as LED lights or monitors.

04.

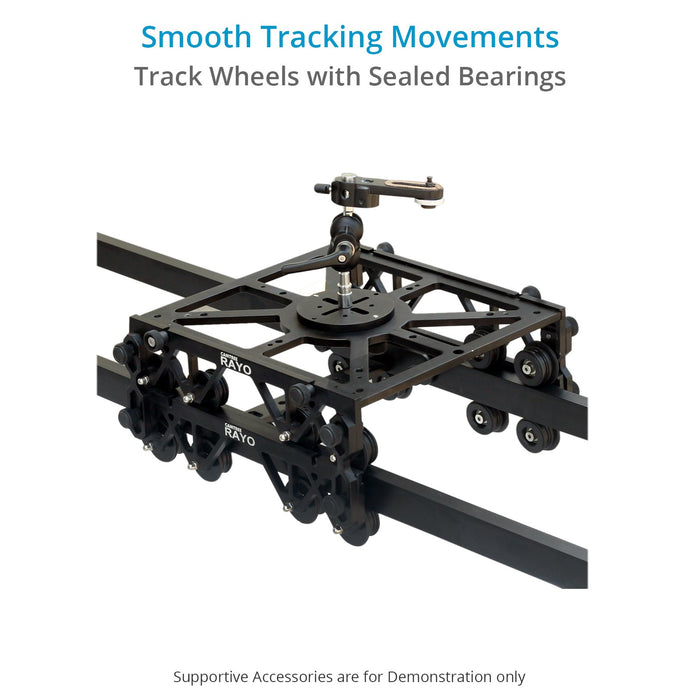

TRACKING DOLLY FOR SMOOTH SHOTS
16-wheel design gives smooth, squeak-free move on the rail track.
They have High-strength SS Bearings that are silent and offer incredibly smooth movements.
These track rails can be laid on apple boxes for a low mode shot or flat surface with an integrated foot system.

SPECIFICATIONS

Construction

High-Grade Aluminum

Load Capacity

at the length 4ft- 25kg / 55lb
at the length 8ft- 10kg / 22lb

Track Distance

Inside - 250mm
Outside - 290mm

Camera Mounting

3/8" Threads & 100mm Bowl

Accessory Mounting

3/8" & 1/4" Threads

Tripod Mounting

3/8" & 1/4" Threads

Temperature Max

-20° to +50°

Dimensions (L x W) Dolly

35 x 40 cm

Dimensions (L x W x H)Track

241 x 48 x 53 cm

Package Weight

14.28 kg / 31lb

IN THE BOX

1 x Top Plate
4 x 4' Track Rail Segments
2 x Wheel Assembling Bracket
1 x 100mm Bowl Mount
1 x 75mm Bowl Mount
1 x Flat Base
4 x Crossbar
1 x Crossbar for Tripod Mount
2 x End Foot
2 x Aluminium Jointing Inserts
4 x Thumb Screw
4 x Knobs
3 x Allen Keys
